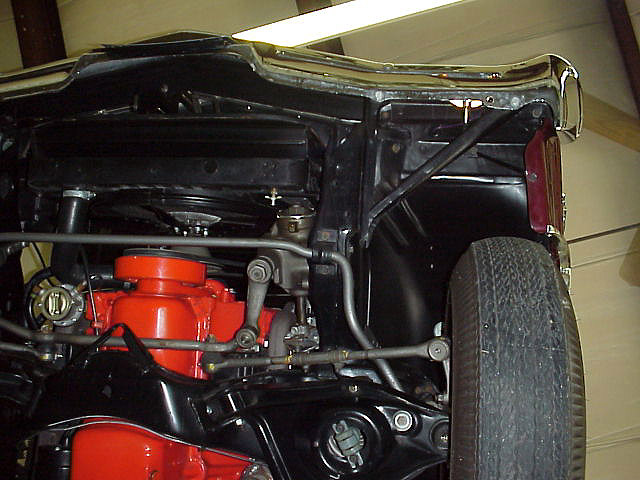

Undercarriage Tour
Please click a picture
to see a larger view of that picture. Please note that the photos
show later model rear lower boxed control arms. I run these arms
on the street however for shows and to be more correct I re-install
open channel (non-boxed) rear lower control arms.
Here is
a close up photo of the addtional rear suspension brace the high
horsepower cars got starting in 1965

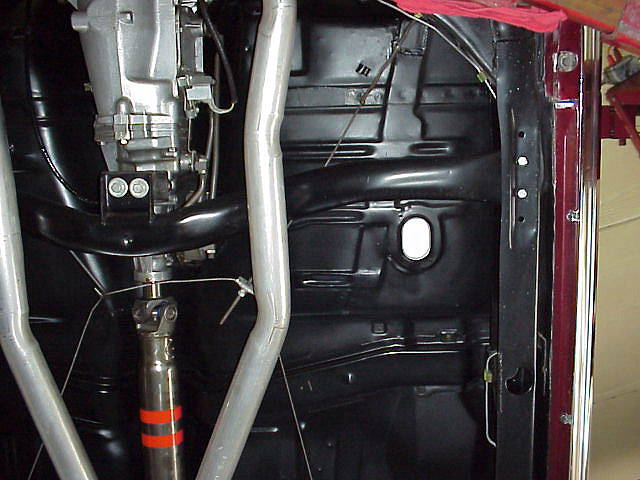

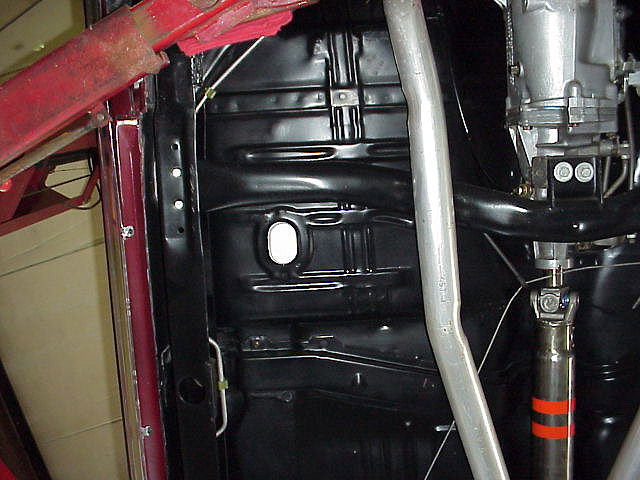

In addition
to the two orange stripes visible on the driveshaft near the transmission
yoke, for additional identification during assembly, the part
number of the driveshaft was stenciled on in yellow 1-inch numbers
near the rear axle yoke. The number is not visible in the pictures
above since it must have been facing upward at the time, so I've
included a few views of it here. The rope visible in one of the
pictures is simply the rope used to secure the car cover on my
car while in storage.
