Engine Dates/Partial VINs
V8 Engine block Casting Month Codes | |||
A - January | B - February | C - March | D - April |
E - May | F-June | G - July | H - August |
I - September | J - October | K - November | L - December |
The date consists of a letter, 1 or 2 digits for the day, and 1 digit for the year such as J 25 8 would be October 8, 1968.
Partial VIN stamping on engine block
Partial VIN stamp
Engine date/suffix code stamp

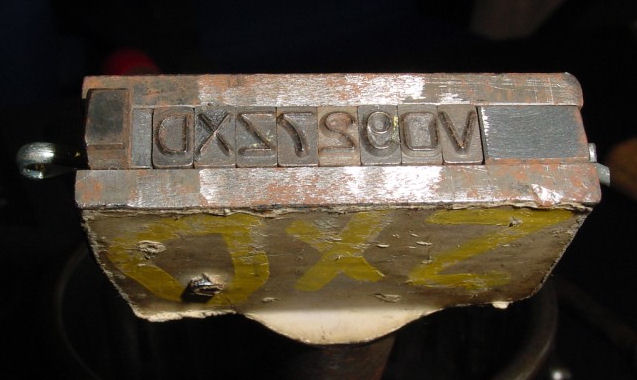

Often referred to as a "gang stamp" because the partial
VIN characters (and engine assembly plant date/suffix codes) was used
to 'gang' the characters into one even line for stamping as opposed
to each character being individually stamped.
Before a federal mandate that all engine blocks be stamped with a partial
VIN, generally, only the 396 engines from 1967 were stamped with a partial
VIN. These were done by hand and by individual character often resulting
in some very strange looking engine pads. The partial VIN consisted of
a single number representing the model year, a letter for the final
assembly plant, and followed by the six-digit sequence number of the
vehicle. The partial VIN characters are a different size (and font)
from the engine plant's date and suffix code and were stamped at two
different places and times.
Beginning January 1, 1968, by federal mandate, all engine blocks would
be stamped with a partial VIN consisting of a single number for the
General Motors division (Chevrolet's number is "1"), followed
by the same information as before; the model year, plant, and sequence
number. General Motors standardized this procedure by using what's called
a "gang stamp" as shown in the photo above. Each individual
stamped character was placed in a holder and secured before the engine
block was struck by the employee responsible for doing this task. This
holder allowed for consistency in the particular characters used and
assured the partial VIN stamp was uniformly done from car to car.
Not to say mistakes weren't made as the person responsible had to insure the numbers were changed for each vehicle as necessary. The plants employed a 'blank' stamp to obliterate a mistaken stamp so the corrected stamp could be applied.
