The 1967 Chevrolet Corvette Stingray was the last mid-year (C2) model. It is also the cleanest with most of the trim removed including the badging on the hood and the flags on the fenders. New five-slot functional vents on the side fenders and a fixed 31" radio antenna were also new. The parking brake is now located between the seats, the first time for a Corvette. Pre-1967 parking brake lever was located under the dashboard. The passenger hand-hold above the glove compartment was removed this year. The knock-off wheel option was modified to use five lug nuts to hold the wheel on, a result of new safety regulations.
A snap-on center cap was used to hide the lug nuts. The seats were re-designed again for more comfort and safety. Corvettes with the 427cid engine have a large air scoop over the center bulge replacing the "power-blister" of 1966 although many 350cid engine owners added this hood. A blue " GM Mark of Excellence" sticker was placed over the latch on the back of each of the doors as a result of a GM quality awareness program.
Red stripe tires were introduced and replaced the 1966 gold stripe tires as an option.
The 1967 Stingray has dual taillights instead of the previous single taillight. The back-up lights are now mounted above the license plate. All 1965-1967 396/427 rocker arm covers were painted orange except for the 16 L89 optioned engines in 1967. The 1967 327 was the last year for finned rocker arm covers with Corvette script.
The same flawed finned rocker arm cover that plagued the 1966 model
year is found in mid 1967s as well. Many owners have original engines
with one of each, flawed and non-flawed.
Around VIN sequence 121xxx, the rocker arm cover flaw was 'fixed.'
Engine specifications vary from publication to publication. Shown here are suffix codes, hp ratings, etc. from GM's own 1967 Corvette documentation.
1967 total Corvettes built - 22,940
1967 fastback coupes - 8,504
1967 convertibles - 14,436
| Corvettes Engines | 22,940 | Percentage |
| RPO L36 - 390-hp engine | 5,933 | 25.86 |
| RPO L68 - 400-hp engine | 2,101 | 09.16 |
| RPO L71 - 435-hp engine | 3,754 | 16.36 |
| RPO L79 - 350-hp engine | 6,375 | 27.79 |
| RPO L88 - 430-hp engine | 20 | 00.09 |
| base 300-hp engine | 4,757 | 20.74 |
| Serial Numbers | |
| Corvette | 194x77S100001-194x77S122940 |
| Coupe is body style 37 and convertible is body style 67 | |
Engine Identification
| Position | Character(s) | Description |
| 1 | V or T | Flint, MI. or Tonawanda, N.Y. engine assembly plant |
| 2 to 5 | 1025 | Engine assembly date (month/day) |
| 6 and 7 | Code | HD - 327-cid 350-hp, manual transmission, 4-bbl carburetor, 11.0:1 cr, A.I.R. HP - 327-cid 350-hp, manual transmission, 4-bbl carburetor, 11.0:1 cr, A.C., P.S. HT - 327-cid 350-hp, manual transmission, 4-bbl carburetor, 11.0:1 cr KH - 327-cid 350-hp, manual transmission, 4-bbl carburetor, 11.0:1 cr, A.I.R., A.C., P.S. JC - 427-cid 400-hp, manual transmission, 3x2-bbl carburetors, 10.25:1 cr JD - 427-cid 400-hp, automatic transmission, 3x2-bbl carburetors, 10.25:1 cr JF - 427-cid 400-hp, manual transmission, 3x2-bbl carburetors, 10.25:1 cr, A.I.R. JG - 427-cid 400-hp, automatic transmission, 3x2-bbl carburetors, 10.25:1 cr, A.I.R. |
| A.C. | Air Conditioning | |
| A.H. | Aluminum cylinder heads | |
| A.I.R. | Air Injection Reactor | |
| P.S. | Power Steering |
Engine Specifications - 327 engines
| Item | Base | RPO L79 |
| Displacement | 327 cid | 327 cid |
| Bore & Stroke | 4.00" x 3.25" | 4.00" x 3.25" |
| Compression Ratio | 10.25:1 | 11.0:1 |
| Advertised Horsepower | 300 hp @ 5000 rpm | 350 hp @ 5800 rpm |
| Cylinder Head Number Intake/Exhaust |
#3890462 94/1.50 |
#3890462 2.02/1.60 |
| Torque | 360 lb-ft @ 3400 rpm | 360 lb-ft @ 3600 rpm |
| Valve lifter type | Hydraulic | Hydraulic |
| Camshaft | High performance | |
| Fuel system | Holley 4-bbl - 3906631 | Holley 4-bbl - 3906631 |
Engine Specifications - 427 engines
| Item | RPO L36 | RPO L68 |
| Displacement | 427 cid | 427 cid |
| Bore & Stroke | 4.251" x 3.76" | 4.251" x 3.76" |
| Compression Ratio | 10.25:1 | 10.25:1 |
| Advertised Horsepower | 390 hp @ 5400 rpm | 400 hp @ 5400 rpm |
| Cylinder Head Number (1) Intake/Exhaust/Combustion Chamber Cylinder Head Number (3) Intake Exhaust/Combustion Chamber |
#3904390 Oval Port (1) 2.06/1.72 98.427cc #3909802 Oval Port (3) 2.06/1.72 100.967cc |
#3904390 Oval Port (1) 2.06/1.72 98.427cc #3909802 Oval Port (3) 2.06/1.72 100.967cc |
| Torque | 460 lb-ft @ 3600 rpm | 460 lb-ft @ 3600 rpm |
| Valve lifter type | Hydraulic | Hydraulic |
| Camshaft | High performance | High performance |
| Fuel System | Holley 4-bbl -
3906633 w/o A.I.R. Holley 4-bbl - 3906637 w/A.I.R. |

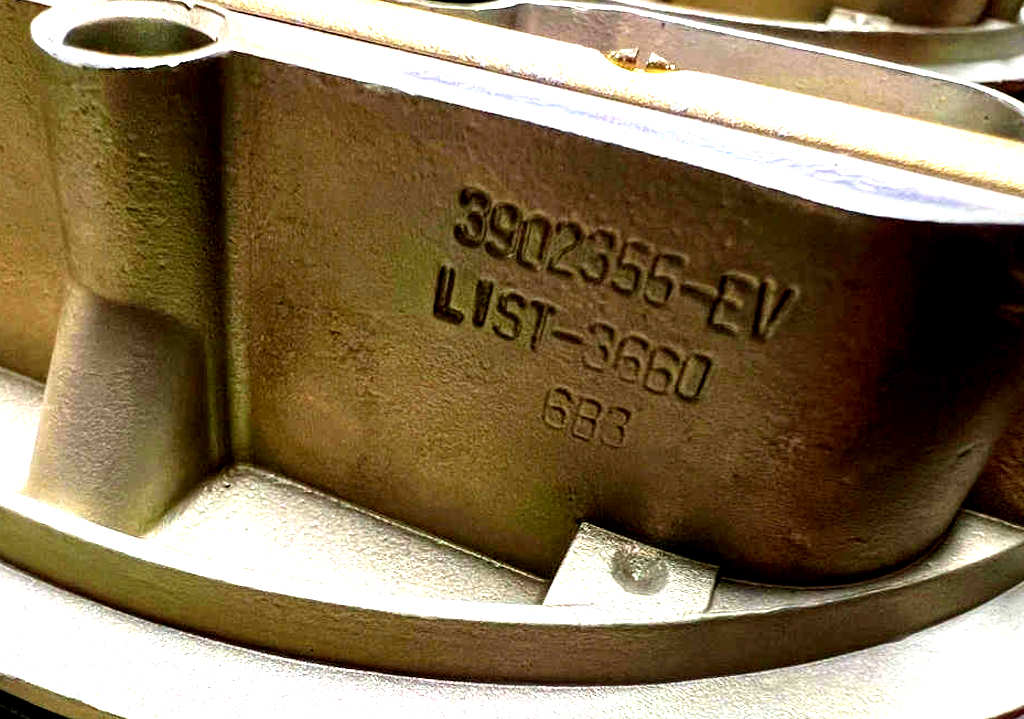

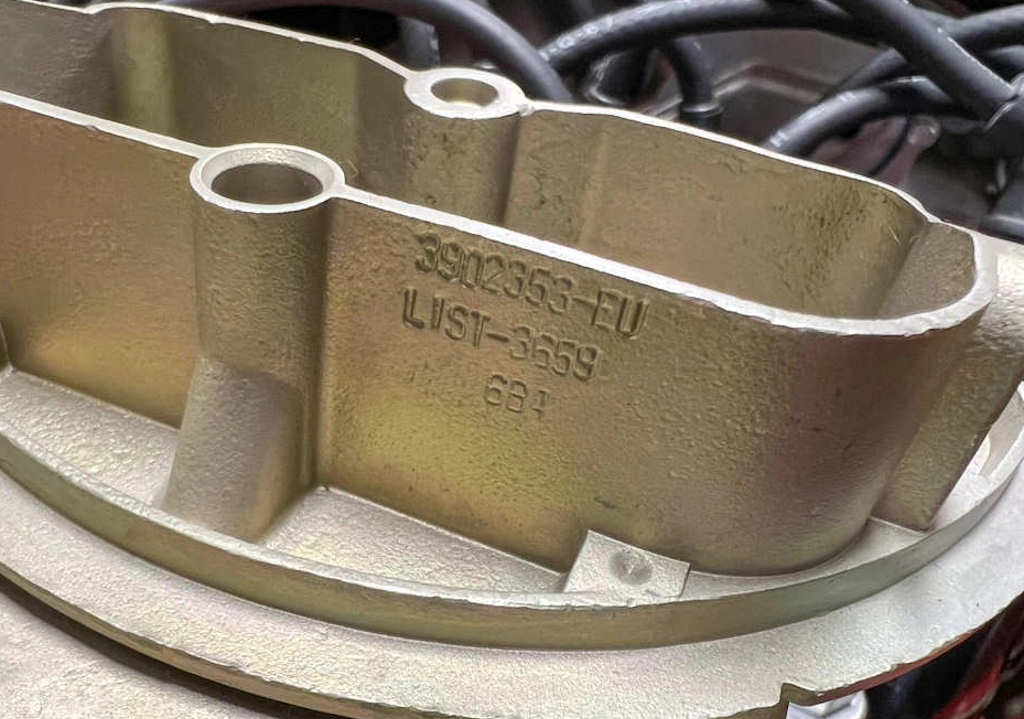

Holley 3 x 2-bbl 3902355 - primary 3902353 - secondary |
(1) No spark plug shields, no temperature sending unit boss, and
used only until January and replaced with #3989802.
(2) No spark plug shields, no temperature sending unit boss, used until
around May and replaced with #3919840.
(3) No spark plug shields, no temperature sending unit boss, redesigned
combustion chamber, production from January through April.
| Item | RPO L71 | RPO L88/L89 |
| Displacement | 427 cid | 427 cid |
| Bore & Stroke | 4.251" x 3.76" | 4.251" x 3.76" |
| Compression Ratio | 11.0:1 | 12.5:1 |
| Advertised Horsepower | 435 hp @ 5800 rpm | 435 hp @ 4600 rpm |
| Cylinder Head Number Intake/Exhaust/Combustion Chamber |
#3904391 Square Port 2.19/1.72 106.8cc |
#3904392 Square Port (4) 2.19/1.72 106.8cc |
| Torque | 460 lb-ft @ 4000 rpm | 485 hp @ 4000 rpm |
| Valve lifter type | Mechanical | Mechanical |
| Camshaft | Special performance | Ultra special performance |
| Fuel System |
Holley 3 x 2-bbl 3902355 - primary 3902353 - secondary |
Holley 4-bbl - 3886101 |
(4) First big block aluminum head, early models do not have temperature sending unit boss although some early May have been found with the boss. Some late April castings have the boss and it's drilled and tapped for temperature sending unit. Identical to #3904390 except cast in aluminum.
Introducing RPO L89, aluminum cylinder heads.
Regular Production Options
| RPO | Description | Cost | Units | % |
| 19437 | Coupe | $4,388.75 | 8,504 | 37.1 |
| 19467 | Convertible | $4,240.75 | 14,436 | 62.9 |
| 402-421 | Leather seats | $79.00 | 1,601 | 7.0 |
| A01 | Tinted windows (all) | $15.80 | 11,331 | 49.4 |
| A02 | Tinted windows (windshield only) | $10.55 | 6,558 | 28.6 |
| A31 | Power windows | $57.95 | 4,036 | 17.6 |
| A82 | Headrests | $42.15 | 1,762 | 7.7 |
| A85 | Shoulder belts | $26.35 | 1,426 | 6.2 |
| C07 |
Hardtop (convertible only) in place of folding top In addition to folding top |
N.C. $231.75 |
6,880 | 47.66 |
| C08 | Soft trim roof cover (convertible) | $52.70 | 1,966 | 13.62 |
| C48 | Heater delete | credit - n/a | 35 | 0.2 |
| C60 | Air conditioning | $412.90 | 3,788 | 16.5 |
| F41 | Special suspension | $36.00 | 2,198 | 9.6 |
| G81 | Positraction | $42.15 | 20,308 | 88.5 |
| J50 | Power brakes | $42.15 | 4,766 | 20.8 |
| J56 | Heavy duty brakes | $342.30 | 267 | 1.2 |
| K19 | Air Injection Reactor (A.I.R.) | $44.75 | 2,573 | 11.2 |
| K66 | Transistor ignition | $73.75 | 5,759 | 25.1 |
| L36 | 427-cid, 390-hp (2) | $200.15 | 5,933 | xx.xx |
| L68 | 427-cid, 400-hp (3) | $305.50 | 2,101 | 9.2 |
| L71 | 427-cid, 435-hp (4) | $437.10 | 3,754 | 16.4 |
| L79 | 327-cid, 350-hp | $105.35 | 6,375 | 27.8 |
| L88 | 427-cid, 430-hp | $947.90 | 20 | 0.1 |
| L89 | 427-cid, 435-hp, aluminum heads | $368.65 | 16 | .01 |
| M20 | Wide ratio 4-speed transmission | $184.35 | 9,157 | 39.9 |
| M21 | Close ratio 4-speed transmission * | $184.35 | 11,015 | 48.0 |
| M22 | Heavy duty close ratio 4-speed transmission | $237.00 | 20 | .01 |
| M35 | Powerglide 2-speed automatic transmission (1) | $194.35 | 2,324 | 14.06 |
| N03 | 36-gallon fuel tank (coupe only - cancelled November 22, 1966) | $198.05 | 2 | <.01 |
| N11 | Off-road exhaust system | $36.90 | 2,326 | 10.1 |
| N14 | Side dual exhaust system | $131.65 | 4,208 | 18.3 |
| N36 | Telescopic steering column | $42.15 | 2,415 | 10.5 |
| N40 | Power steering | $94.80 | 5,747 | 25.1 |
| N89 | Cast aluminum wheels | $263.30 | 720 | 3.1 |
| P92 | 7.75 x 15 white stripe tire * | $31.35 | 13,445 | 58.6 |
| QB1 | 7.75 x 15 red stripe tire * | $46.65 | 4,230 | 18.4 |
| U15 | Speed warning indicator | $10.55 | 2,108 | 9.2 |
| U69 | Push Button AM/FM radio | $172.75 | 22,193 | 96.7 |
* Images may be representations of the option >> The 327-cid, 250-hp engine, 3-speed manual transmission, vinyl interior, and a soft top (convertible) were included in the base price. >> The 6,880 C07 quantity included 895 in lieu of soft tops at no extra cost. >> The 3,788C60 quantity was split 2,235 coupe and 1,5532 convertible >> The 2,324 M35 quantity was split 1,725 with 300-hp, 392 with 390-hp., and 207 with 400-hp. (1) Since the Powerglide was not an option with the 327/350 or 427/430-435 engines, their total was deducted from total Corvette sales numbers leaving only 16,529 Corvettes the Powerglide was available with. (2) Three different sources show three different sales figures; 5,933 (Tail fins & bowties); 2,101 (corvsport.com); 3,832 (vettefacts.com). Different costs are also shown; $305.50 (corvsport.com) and $200.15 (vettefacts.com) (3) Two different online websites show different costs; $437.10 (corvsport.com) and $305.50 (vettefacts.com) (4) Rumor has it that Zora Arkus-Duntov was once asked why the 435-hp engine was rated as such. His reported rely, "It sounded good." Aside from the 3x2 intake the L71 was identical to the 1966 L72 rated at 450hp which was later lowered to 425hp. > Tachometer redline→ |
||||
1967 Exterior/Interior Colors
| RPO | Color | Interior Color Choices | Units | % |
| 900 |
Tuxedo Black Coupe Tuxedo Black Convertible |
Bright Blue - Black - Green - Red - Saddle - Teal Blue - White | 815 | 3.6 |
| 972 |

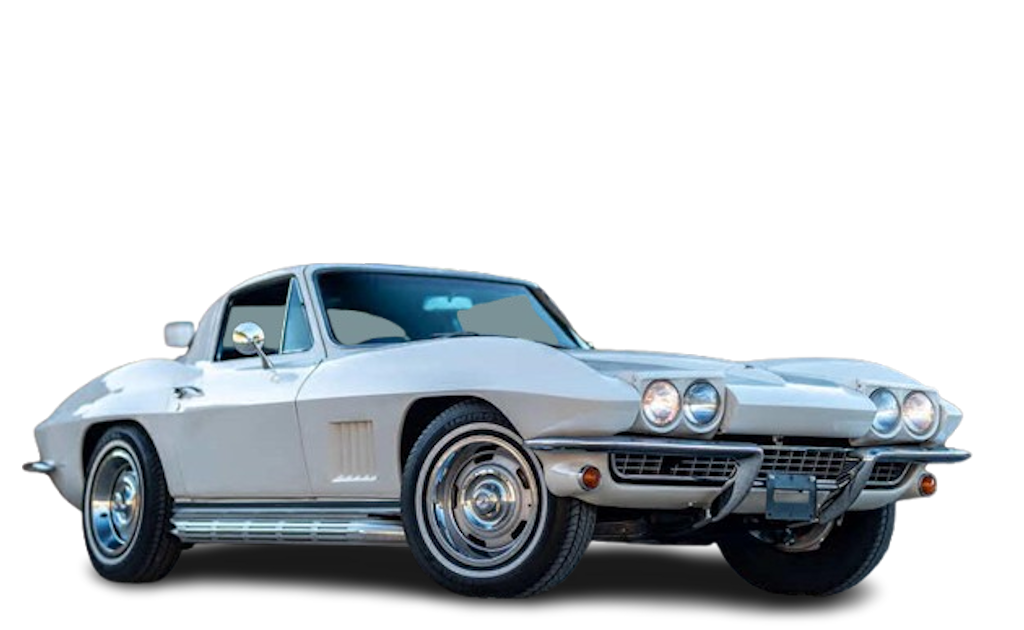

Ermine White Coupe Ermine White Convertible |
Bright Blue - Black - Green - Red - Saddle - Teal Blue - White | 1,423 | 6.2 |
| 974 |

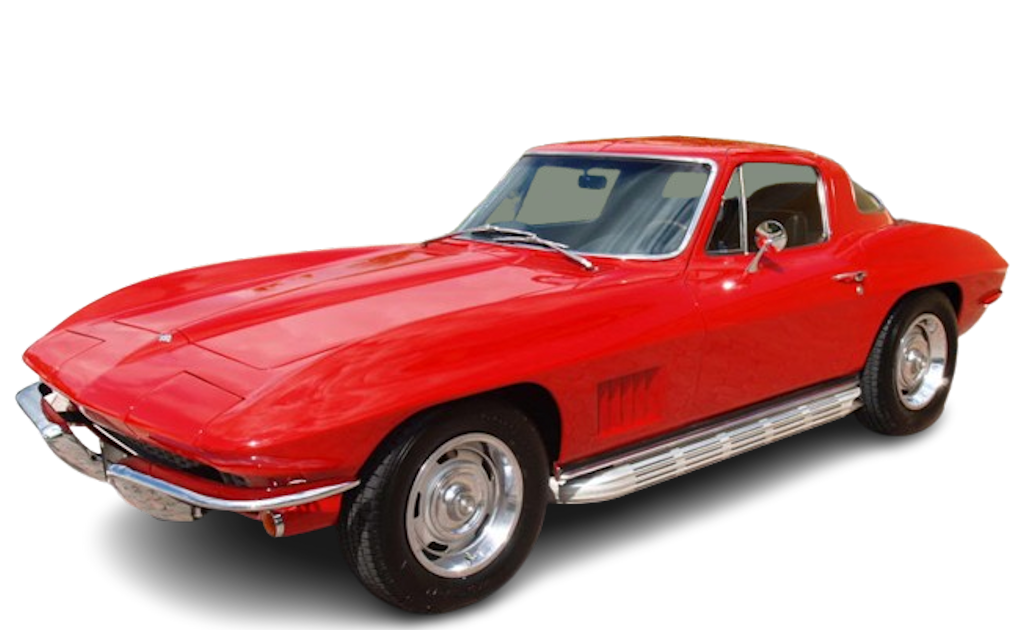

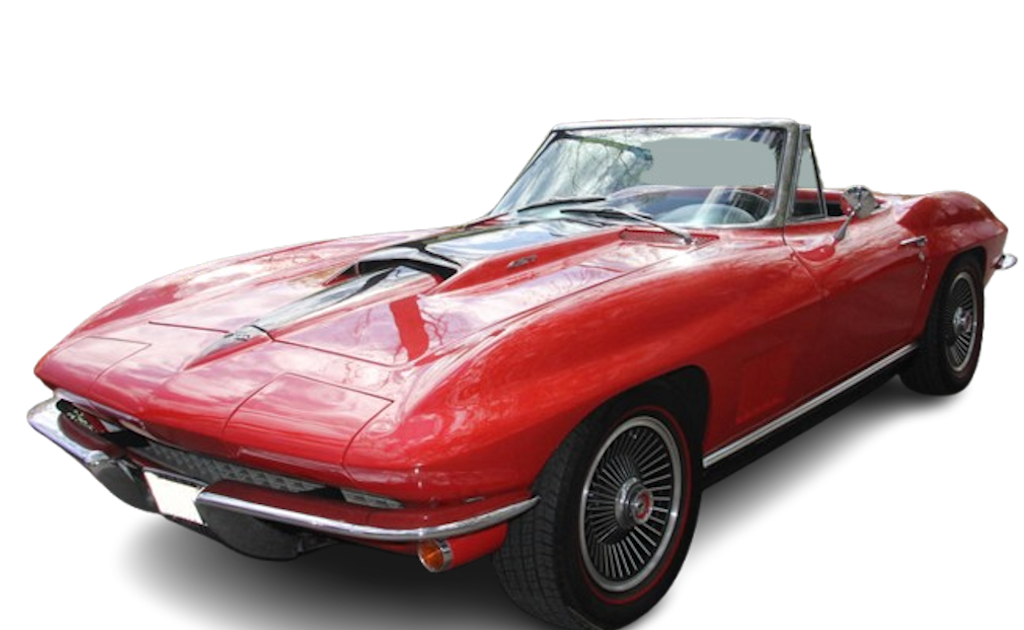

Rally Red Coupe Rally Red Convertible |
Black - Red - White | 2,341 | 10.2 |
| 976 |

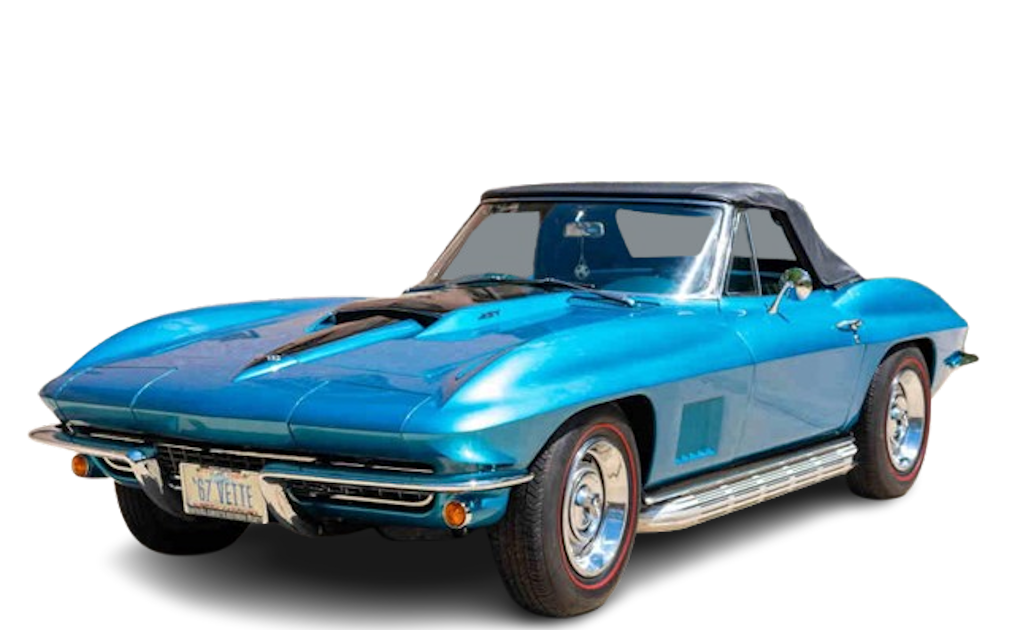

Marina Blue Coupe Marina Blue Convertible |
Bright Blue - Black - White | 3,840 | 16.7 |
| 977 |

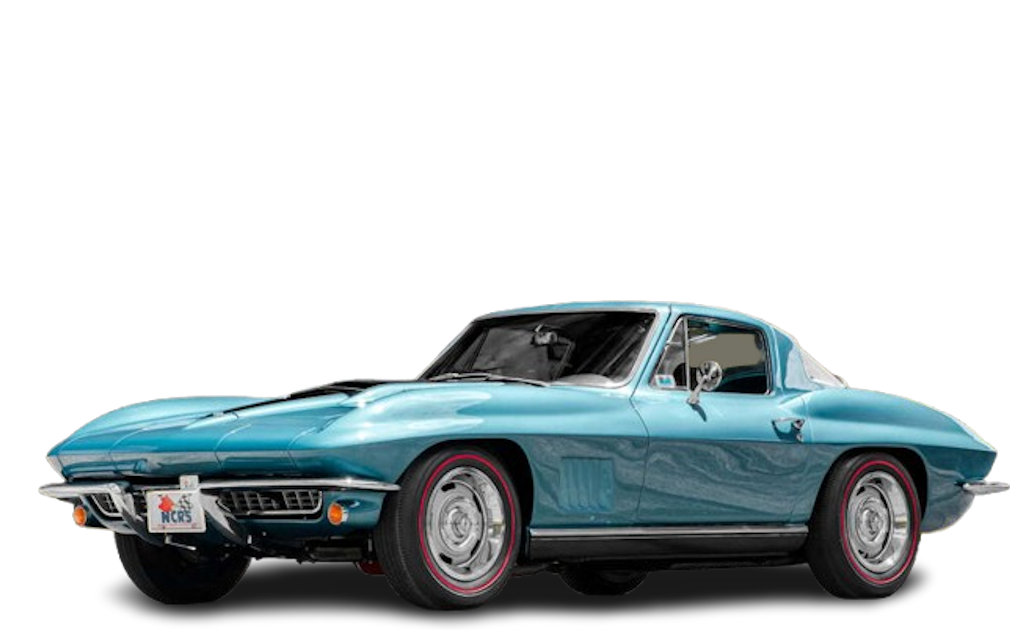

Lynndale Blue Coupe Lynndale Blue Convertible |
Black - Teal Blue - White | 1,381 | 6.0 |
| 980 |
Elkhart Blue Coupe Elkhart Blue Convertible |
Black - Teal Blue | 1,096 | 4.8 |
| 983 |

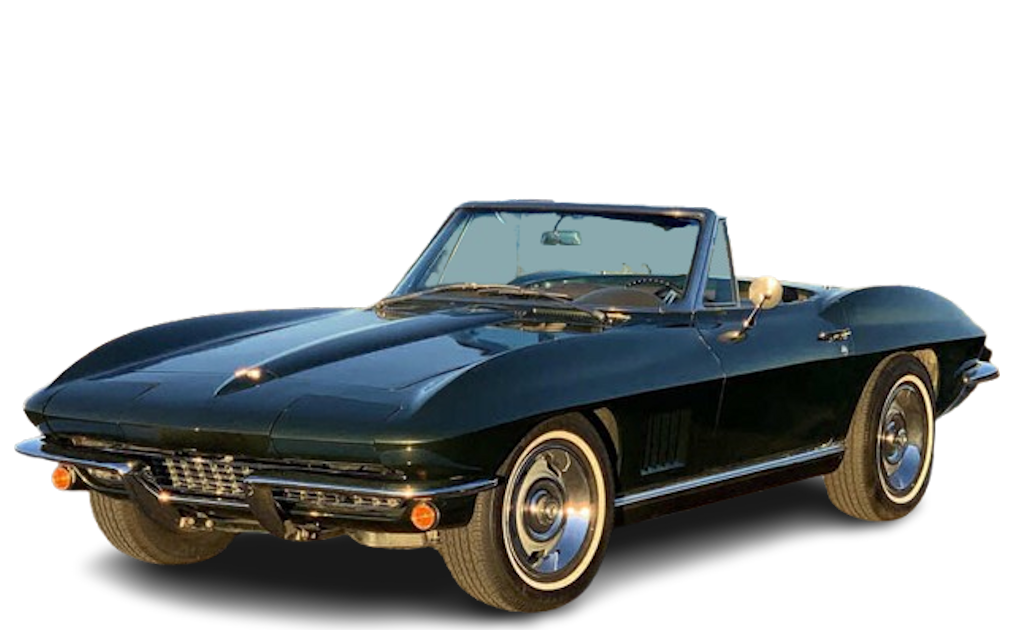

Goodwood Green Coupe Goodwood Green Convertible |
Black - Green - Saddle - White | 4,293 | 18.7 |
| 984 |

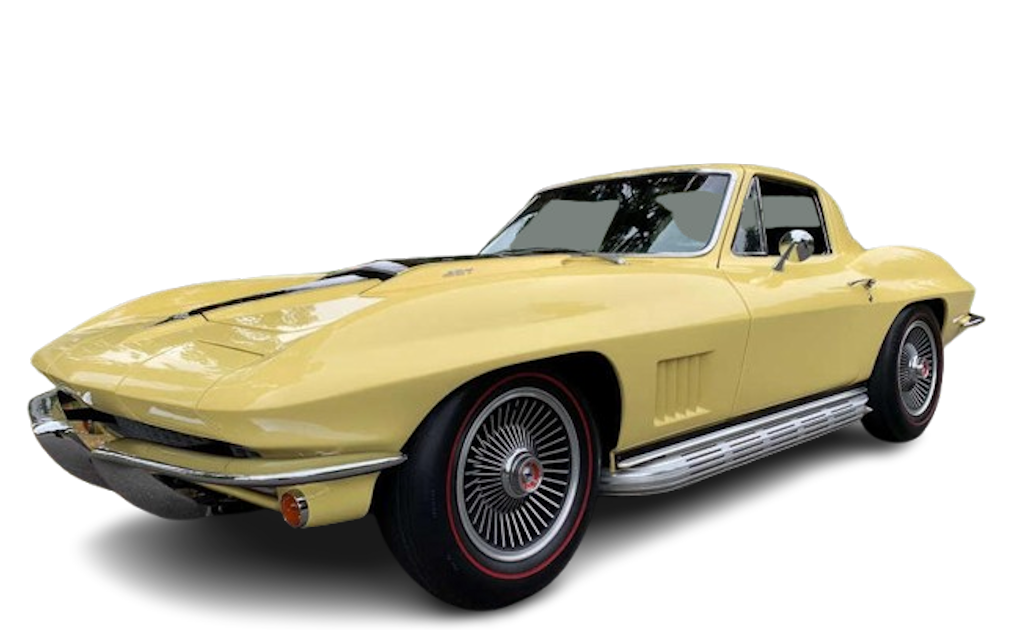

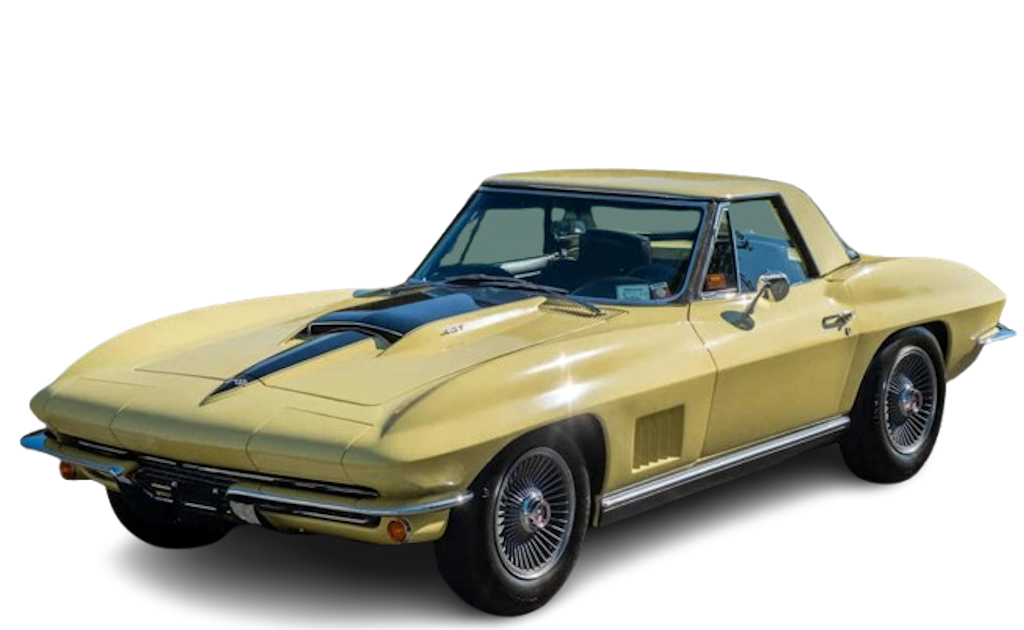

Sunfire Yellow Coupe Sunfire Yellow Convertible |
Black - White | 2,325 | 10.1 |
| 986 |

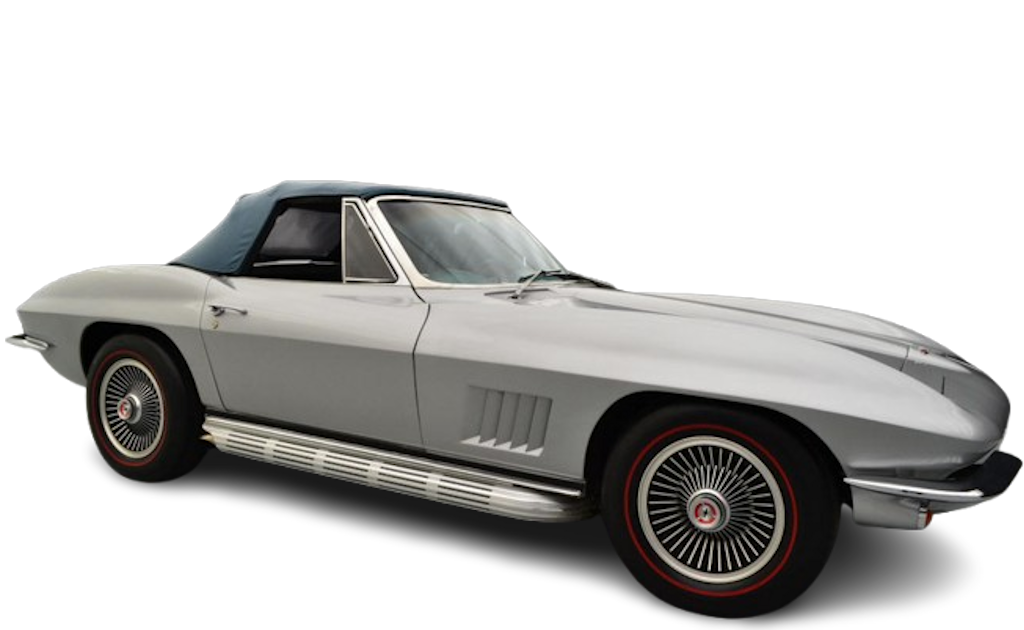

Silver Pearl Coupe Silver Pearl Convertible |
Black - Teal Blue | 1,952 | 8.5 |
| 988 |

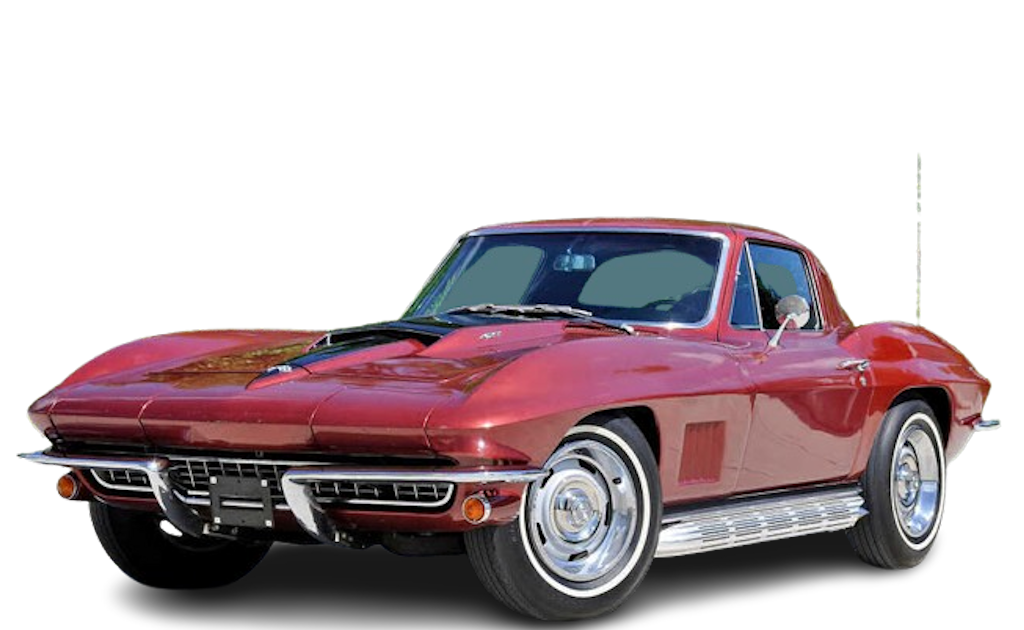

Marlboro Maroon Coupe Marlboro Maroon Convertible |
Black - Saddle - White | 3,464 | 15.1 |
Convertible top available in black, blue, and white with any exterior color.
Big Block Hood Stripe Colors
| Exterior Color | Stripe Color | Interior Color |
| 900AA - Tuxedo Black | Red | Black - Red |
| White | Saddle - Green - White & Black | |
| Dark Teal Blue | Teal Blue | |
| Medium Bright Blue | Bright Blue - White & Bright Blue | |
| 972AA - Ermine White | Black | Black - Saddle - Green - White & Black |
| Red | Red | |
| Dark Teal Blue | Teal Blue | |
| Medium Bright Blue | Bright Blue - White & Bright Blue | |

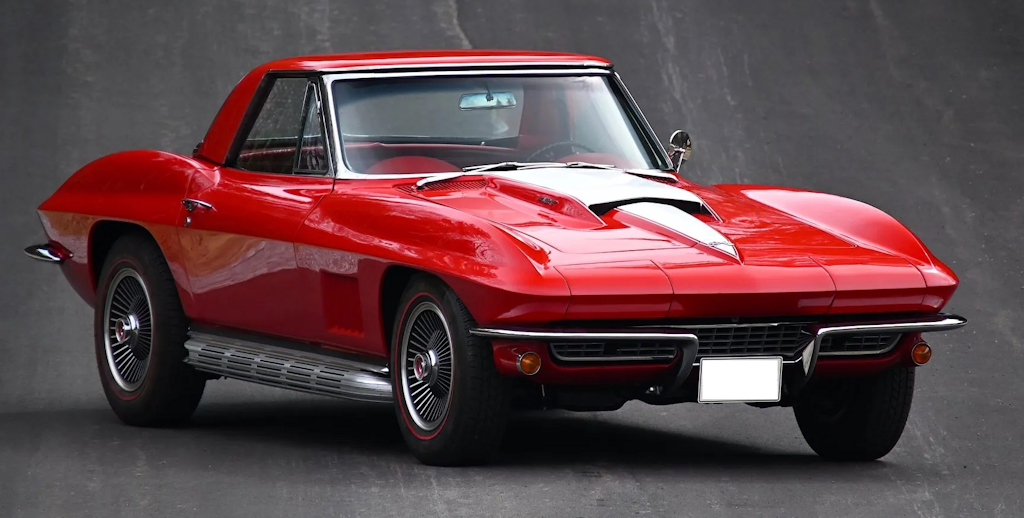

| 974AA - Rally Red | Black | Black - Red |
| White | White & Black | |
| 976AA - Marina Blue | Black | Black - Bright Blue |
| White | White & Bright Blue | |

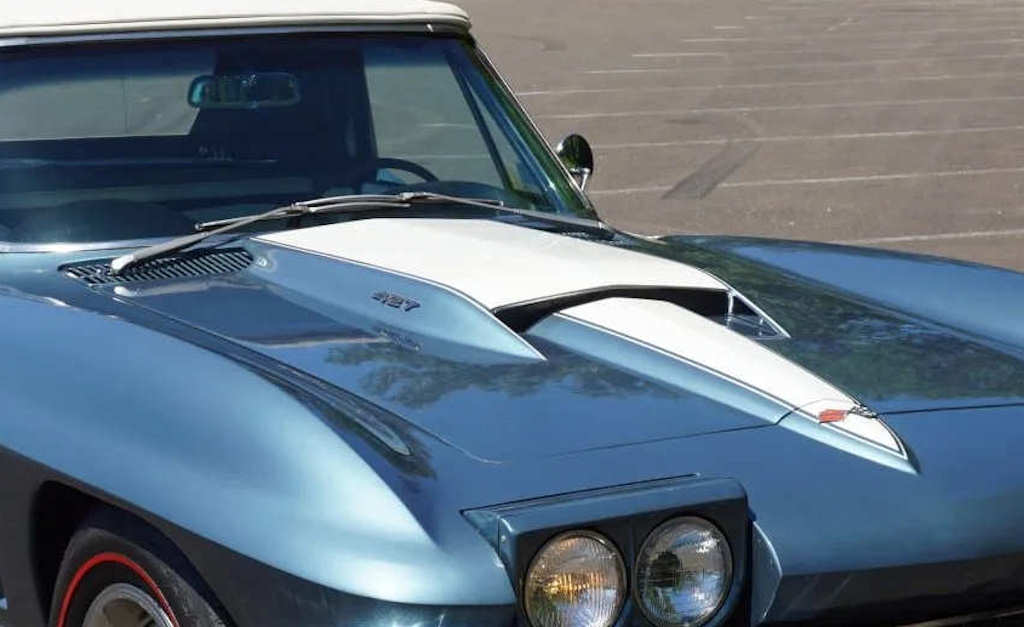

| 977AA - Lyndale Blue | Black | Black - Teal Blue |
| White | White & Black | |
| 980AA - Elkhart Blue | Black | Black |
| Dark Teal Blue | Dark Blue | |
| 983AA - Goodwood Green | Black | Black |
| White | Green - Saddle - White & Black | |
| 984AA - Sunfire Yellow | Black | Black - White & Black |
| 986AA - Silver Pearl | Black | Black - Teal Blue Blue |
| 988AA - Marlboro Maroon | Black | Black - Saddle - White & Black |
Stripe color is dependent on the interior trim color when two or more are possible.
Interior Trim Codes
| RPO | Color/Material |
| Standard | Black vinyl |
| 402 | Black leather |
| 407 | Red vinyl |
| 408 | Red leather |
| 414 | Bright Blue vinyl |
| 415 | Bright Blue leather |
| 418 | Teal Blue vinyl |
| 419 | Teal Blue leather |
| 420 | Saddle vinyl |
| 421 | Saddle leather |
| 430 | Green vinyl |
| 450 | White vinyl with Blue accents |

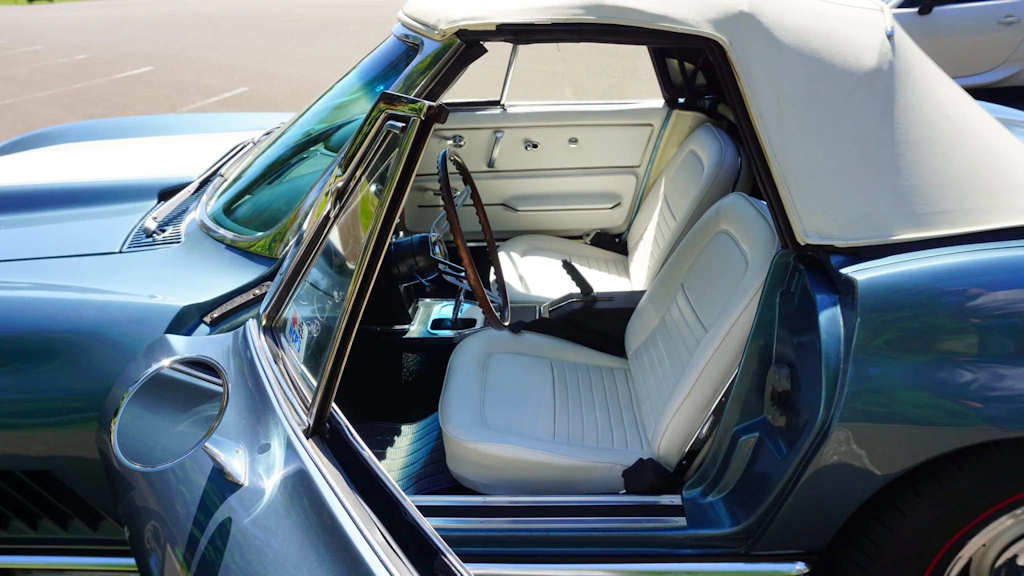

| 455 | White vinyl with Black accents |
Interiors are color-keyed to exterior colors. Genuine leather seat
trim can be ordered in black, red, bright blue, dark blue, and saddle.
* Black or Bright Blue used on instrument panel and carpet
1967 OEM Supplier Paint Colors
| Color | Valspar Code | PPG Code | DuPont Code | RM Code | SW Code | WA Code |
| 900 - Tuxedo Black | K090 | 9300 | 99 | 946 | n/a | n/a |
| 972 - Ermine White | W612 | 8259 | 4024 | 1199 | 1911 | 2661 |
| 974 - Rally Red | R1163L | 71491 | 4688 | 1744 | 2453 | 3395 |
| 976 - Marina Blue | L2934 | 13364 | 4850 | 1920 | n/a | 3680 |
| 977 - Lynndale Blue | L3442 | 13348 | 4833 | 1812 | n/a | 3624 |
| 980 - Elkhart Blue | MW671 | 13347 | 4834 | 1911 | n/a | 3694 |
| 983 - Goodwood Green | G1095 | 43652 | 4835 | 1913 | n/a | 3626 |
| 984 - Sunfire Yellow | Y806 | 81540 | 4711 | 1828 | n/a | 3523 |
| 986 - Silver Pearl | S536 | 32449 | 4621 | 1708 | 2422 | 3314 |
| 988 - Marlboro Maroon | R2078 | 71584 | 4836 | 1914F | n/a | n/a |
Mechanical Specifications
| Wheelbase | 98.0 inches |
| Track Front/Rear (inches) | 57.6 / 58.3 |
| Overall Length | 175.1 |
| Width | 69.6 inches |
| Height | 49.8 inches (folding top & coupe) 49.6 inches (hard top) |
| Curb Weight | 3,175 pounds - convertible 3,224 pounds - convertible with hardtop 3,155 pounds - coupe Powerglide - add 1.0 lbs. 4-speed - deduct 5.0 lbs. |
| Coolant Capacity | 16.0 quarts with heater/15.0 quarts without - 327 engines 23.0 quarts with heater/22.0 quarts without - 427 engines |
| Fuel Capacity | 20.0 gallons |
| Oil Capacity | 5.0 quarts |
