1967 Camaro Engine Specifications

© CAMAROWORLD
1967 Engine Specifications
© CAMAROWORLD
1968 Engine Specifications
© CAMAROWORLD
1969 Engine Specifications

© CamaroWorld© CamaroWorld

The following data are taken from GM's Information Kit - AMA Specifications & Chevrolet Parts and Accessories Catalog, Rev. 38-72, Group 3.275 (service replacement)

The GM Information Kit AMA Specifications do not show specifications for the following engines:
RPO LF7 327-2 cid/210 hp

Engine Specifications - 230cid/250cid Inline 6-cylinder ~ 327cid/350cid V8

Specification Base 230cid/155hp RPO L22 250cid/155hp RPO L30 327cid/275hp RPO L48 350cid/295hp
Bore (in inches) 3.875 3.875 4.00 4.00
Stroke (in inches) 3.25 3.53 3.25 3.48
Cubic Inches 230 250 327 350
Compression Ratio 8.5:1 8.5:1 10.5:1 10.25:1
Horsepower @ RPM 140 @ 4400 155 @ 4200 275 @ 4800 295 @ 4800
Torque lb-ft @ RPM 220 @ 1600 235 @ 1600 355 @ 3200 380 @ 3200
Fuel 1-bbl (Rochester w/o A.I.R.)
1-bbl (Carter w/A.I.R.)



1-bbl (Rochester)
7026027 - M.T.
7026028 - A.T.
7036680
4-bbl (Rochester)
7027213 - M.T.
7027212 - A.T.
7036683 - M.T.
7036686 - A.T.
4-bbl (Rochester)
7027213 - M.T.
7027212 - A.T.
7036683 - M.T.
7036686 - A.T.
Qty Sold 20,643 38,165 25,287 29,270

Engine Specifications - 302cid/327cid V8 ~ 396cid V8

Specification RPO Z28 302cid/290hp RPO L35 396cid/325hp * RPO L78 396cid/375hp   Base 327cid/210hp
Bore (in inches) 4.000 4.094 4.094   4.00
Stroke (in inches) 3.005 3.760 3.760   3.25
Cubic Inches 302 396 396   327
Compression Ratio 11.0:1 8.5:1 11.0:1   8.75:1
Horsepower @ RPM 290 @ 5800 325 @ 4800 375 @ 5600   210 @ 4600
Torque lb-ft @ RPM 290 @ 4200 410 @ 3200 415 @ 3600   320 @ 3200
Fuel 4-bbl (Holley)
3916377 - 780 cfm
3916143 - W/A.I.R.
3916145 - w/o A.I.R.


4-bbl (Rochester)
7027201 - M.T.
7027200 - A.T.
7016925
4-bbl (Holley)
List 3910 780 cfm
3916143 - w/A.I.R.
3916145 - w/o A.I.R.

  2-bbl (Rochester)
7016718 - M.T. w/o A.I.R.
7037103 - M.T. w/A.I.R.
7041833 - A.T.
Qty Sold 602 4,003 1,138

* The 396cid/RPO L35 specifications are not shown in GM's Information Kit for the 1967 Camaro. Data from 1967 Chevelle kit.
A.I.R. - Air Injection Reactor
A.T. - Automatic Transmission
M.T. - Manual Transmission

08/22/2009

According to accepted production numbers, the engine sizes break down as follows and note all 220,906 Camaro engines are accounted for in this total but leaves questions as to the 283 (for export) and 302 (for Z28) engines.

230-1 cid L6 - 20,643 (base L6)
250-1 cid L6 - 38,165 (RPO L22)
327-2 cid V8 - 102,400 (base V8) (no data found, yet)
327-4 cid V8 - 25,287 (RPO L30)
350-4 cid V8 - 29,270 (RPO L48)
396-4 cid V8 - 4,003 (RPO L35)
396-4 cid V8 - 1,138 (RPO L78)

283-2 cid V8 - 183 for export *
302-4 cid V8 - 602 (used with RPO Z28) but there is no mention in the listed engines **

09/11/2022
F0404LN - Flint, MI - April 4, 1967 - 250/155hp w/Powerglide transmission

09/11/2022

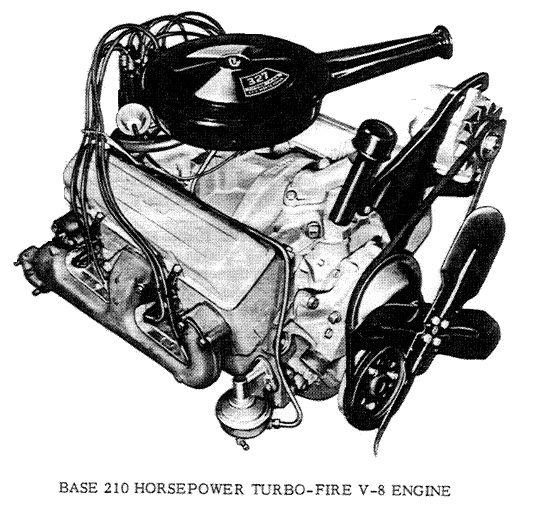

V0609ME - Flint, MI - June 9, 1967 - 327/210hp w/Powerglide transmission

09/28/2009
T0921MN - Tonawanda, NY - September 21, 1966 - 327/275hp w/Powerglide transmission

© CamaroWorld
T0921MN - Tonawanda, NY - November 2, 1966 - 327/275hp w/Powerglide transmission

© CamaroWorld

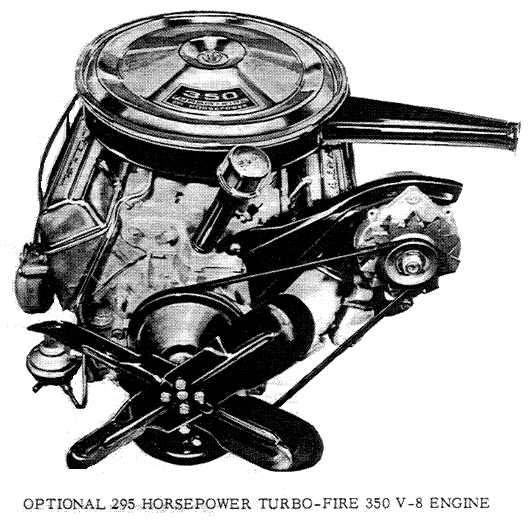

V1029MT - Flint, MI - October 20, 1966 - 350/295hp w/Manual transmission, A.I.R.

11/21/2010
T0329MY - Tonawanda, NY - March 29, 1967 - 396/325hp w/TH400 transmission

11/21/2010
