1970 El Camino Interior Paint Colors
Disclaimer: Components painted the two gloss percentages taken from Ditzler paint catalog.
Color Name | 0 Gloss |
Ditzler | Rinshed-Mason | DuPont |
Black | X | 9317 | 168C41 | 4428L |
Medium Bright Blue | X | 13966 | 170B25 | 9696L |
Dark Blue | X | 13967 | 170B24 | 9701LH |
Dark Saddle | X | 23310 | 170B88 | 9703L |
Dark Sandalwood | X | 23311 | 170B74 | 9704L |
Trim Combination Chart | Color Name | Ditzler Code DIA |
752, 756 | Black | 9317 |
761, 762, 764, 765 | Medium Bright Blue Poly | 13966 |
761, 762, 764 | Dark Blue Poly | 13967 |
770, 771, 773 | Dark Saddle | 23310 |

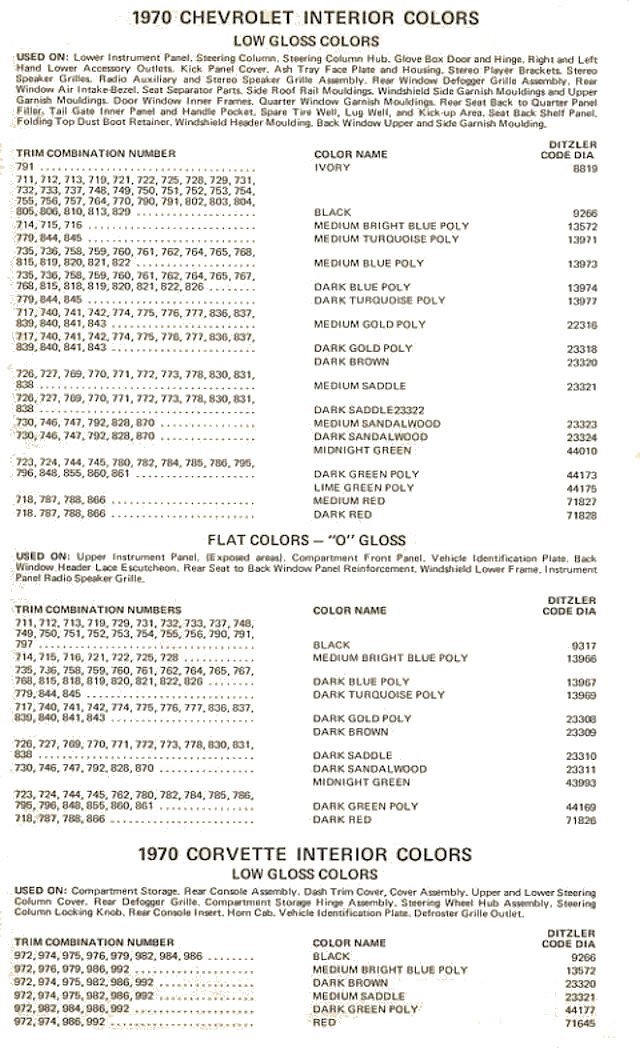

According to paint chart page from Ditzler, the following are painted
in 0% gloss:
Upper instrument panel (exposed area); compartment front
panel; vehicle identification plate; back window header lace escutcheon;
rear seat to back window panel reinforcement; windshield lower frame;
instrument panel radio speaker grille.
Color Name | 30 Gloss |
Ditzler | Rinshed-Mason | DuPont |
Black | X | 9266 | 170B40 | 99L |
Medium Bright Blue | X | 13572 | 168V24 | 9540L |
Dark Blue | X | 13974 | 170B27 | 9712LH |
Dark Saddle | X | 23322 | 170B810 | 9726L |
Dark Sandalwood | X | 233247 | 170B78 | 9727L |
Medium Blue | X | 13973 | 170B26 | 9711L |
Medium Saddle | X | 23321 | 170B800 | 9714L |
Medium Sandalwood | X | 23323 | 170B76 | 9716L |
Trim Combination Chart | Color Name | Ditzler Code DIA |
752, 755, 756 | Black | 9266 |
761, 764 | Medium Blue Poly | 13973 |
761, 764 | Dark Blue Poly | 13974 |
770, 771, 773 | Medium Saddle | 23321 |
770, 771, 773 | Dark Saddle | 23322 |
According to paint chart page from Ditzler, the following are painted
in 30% gloss:
Lower instrument panel; steering column; steering column
hub; glove box door and hinge; right and left hand lower accessory quarters;
kick panel cover; ash tray face plate and housing; stereo player brackets;
stereo speaker grille; radio auxiliary & stereo speaker assembly;
rear window defogger grille assembly; rear window air intake bezel;
seat separator parts; side roof rail moldings; windshield side garnish
moldings & upper garnish moldings; door window frames; quarter window
garnish moldings; rear seat back to quarter panel filler; tail gate
panel and handle pocket; spare tire well; lug well and kick up area;
seat back shelf panel; folding top dust boot retainer; windshield header
molding; back window upper & side garnish moldings.
