1970 El Camino Protect-O-Plate Warranty Card





Only one example. If you request help with yours, contact me and I'll be glad to answer any questions you have. Include a photo of the Protect-O-Plate as plants often deviate during the model year.

Only Atlanta and Kansas City abbreviated the engine suffix code and rear axle code to two letters omitting the initial "C" letter (e.g., TW for engine instead of CTW or CF for rear axle instead of CCF). Arlington, Baltimore, Flint, Van Nuys, and Oshawa used the full three letter code  for these two items. Often other 'concessions/errors' were made such as the TH400 coding on the Van Nuys example of 70F273 instead of 70CF273.

Note:  GM offers 2 explanations on decoding the VIN.  Using the common 13680 as an example:
1. When describing the VIN plate: 1 ~ Chevrolet Division, 36 ~ Malibu V8, 80 ~ 2-door sedan pickup
...and...
2. When describing the POP: 13 ~ Chevelle, even number (4 or 6) is a V8 - odd number (3 or 5) is a L6, 80 ~ 2-door sedan pickup. The engine designations of 4 or 6 for a V8 engine, and 3 or 5 for a L6 engine was determined by the series.

A V8 Standard would be 4 and Malibu would be 6.
A L6 Standard would be 3 and Malibu would be 5
.

Baltimore, Maryland

Courtesy Dean Barnes

1st line:
136800B117206 ~ VIN
13680 ~ Chevelle (13), Malibu V8 (6), 2-door sedan pickup (80)
0 ~ Year of Production: 1970
B ~ Final Assembly Plant: Baltimore, MD.
117206 ~ Sequence Assembly Number ~ 17,206th Chevelle at Baltimore
R ~ Carburetor Source: Rochester

2nd line:
T1106CRE ~ Engine Number: Tonawanda (T), November 06 (1106), L48 350-4/300hp w/TH350 (CRE)
KD1030B ~ Rear Axle Number: 2.73:1 ratio (KD), October 30 (1030), Buffalo (B)
N ~ Vehicle Build Month: November

3rd line:
Y0K25 ~ Transmission Number: TH350 Toledo (Y), 1970 (0), July 25 (K25)

Options

1 1 3   1
G H I J K L M

G-1 ~ Power Steering [RPO N40]
H-1 ~ Power Brakes [RPO J50]
I-3 ~ Radio
K-1 ~ Four Season Air Conditioning [RPO C60]

Owner/dealer info: Original owner's name/address removed for obvious privacy reasons


Courtesy David Hawboldt - 01/22/2009

1st line:
136800B131181 ~ VIN
13680 ~ Chevelle (13), Malibu V8 (6), 2-door sedan pickup (80)
0 ~ Year of Production: 1970
B ~ Final Assembly Plant: Baltimore, MD.
131181 ~ Sequence Assembly Number ~ 31,181st Chevelle at Baltimore
H ~ Carburetor Source: Holley

2nd line:
T1129CRY ~ Engine Number: Tonawanda (T), November 29 (1129), LS6 454/450 w/manual & aluminum heads (CRY)
CRW1215B ~ Rear Axle Number: 4.10:1 ratio (CRW), December 15 (1215), Buffalo (B)
D ~ Vehicle Build Month: December

3rd line:
P0T01 ~ Transmission Number: Muncie 4-speed (P), 1970 (0), December 01 (T01)

Options

  1 3 3
G H I J K L M

H-1 ~ Power Brakes [RPO J50]
I-3 ~ Radio
J-3 ~ Disc Brakes [RPO J52]

Owner/dealer info: Original owner's name/address removed for obvious privacy reasons

Interesting note(s): Transmission model suffix for M20/M21/M22 not present.

Van Nuys California

© CaminoWorld

1st line:
136800L127620 ~ VIN
13680 ~ Chevelle (13), Malibu V8 (6), 2-door sedan pickup (80)
0 ~ Year of Production: 1970
L ~ Final Assembly Plant: Van Nuys, CA.
127620 ~ Sequence Assembly Number ~ 27,620th Chevelle at Van Nuys
R ~ Carburetor Source: Rochester

2nd line:
T0923CTW ~ Engine Number: Tonawanda (T), September 23 (0923), L34 402/350hp w/TH400 (CTW)
CCO1005B ~ Rear Axle Number: 2.56:1 Positraction (CCO), October 5 (1005), Buffalo (B)
O ~ Vehicle Build Month: October

3rd line:
70F273 ~ Transmission Number: 1970 (70), Turbo Hydra-Matic 400 engine code 402/350hp (F), 273 being the 273rd day counted from January 1, 1969...making the transmission date September 30, 1969.

Options

1 1 3 3 1
G H I J K L M

G-1 ~ Power Steering [RPO N40]
H-1 ~ Power Brakes [RPO J50]
I-3 ~ Radio
J-3 ~ Disc Brakes [RPO J52]
K-1 ~ Four Season Air Conditioning [RPO C60]

Owner/dealer info: Original owner's name/address removed for obvious privacy reasons


© CaminoWorld

1st line:
136800L149938 ~ VIN
13680 ~ Chevelle (13), Malibu V8 (6), 2-door sedan pickup (80)
0 ~ Year of Production: 1970
L ~ Final Assembly Plant: Van Nuys, CA.
149938 ~ Sequence Assembly Number ~ 49,938th Chevelle at Van Nuys
R ~ Carburetor Source: Rochester

2nd line:
T1117CTW ~ Engine Number: Tonawanda (T), November 17 (1117), L34 402/350hp w/TH400 (CTW)
CCF1118B ~ Rear Axle Number: 3.31:1 Positraction (CCF), November 18 (1118), Buffalo (B)
D ~ Vehicle Build Month: December

3rd line:
70F351 ~ Transmission Number: 1970 (70), Turbo Hydra-Matic 400 engine code 402/350hp (F), 351 being the 351st day counted from January 1, 1969...making the transmission date December 17, 1969.

Options

1 1 3 3 1
G H I J K L M

G-1 ~ Power Steering [RPO N40]
H-1 ~ Power Brakes [RPO J50]
I-3 ~ Radio
J-3 ~ Disc Brakes [RPO J52]
K-1 ~ Four Season Air Conditioning [RPO C60]

Owner/dealer info: Original owner's name/address removed for obvious privacy reasons

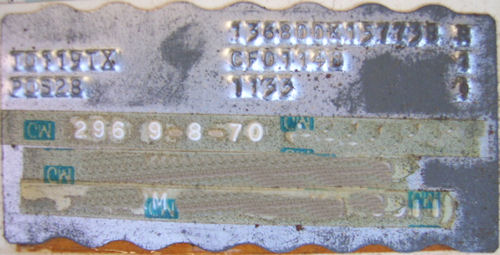

Kansas City, Missouri

© CaminoWorld - All Rights Reserved

1st line:
136800K157738 ~ VIN
13680 ~ Chevelle (13), Malibu V8 (6), 2-door sedan pickup (80)
0 ~ Year of Production: 1970
K ~ Final Assembly Plant: Kansas City, MO.
157738 ~ Sequence Assembly Number ~ 57,738th Chevelle at Kansas City
R ~ Carburetor Source: Rochester

2nd line:
T0119TX ~ Engine Number: Tonawanda (T), January 19 (0119), L34 402/350hp w/manual transmission (TX)
CF0114B ~ Rear Axle Number: Positraction 3.31:1 ratio (CF), January 14 (1114), Buffalo (B)
1 ~ Vehicle Build Month: January

3rd line:
P0S2B ~ Transmission Number: Muncie 4-speed (P), 1970 (0), November 2 (S2), M21 (B)

Options

1 1 3 3
G H I J K L M

G-1 ~ Power Steering [RPO N40]
H-1 ~ Power Brakes [RPO J50]
I-3 ~ Radio
J-3 ~ Disc Brakes [RPO J52]

Owner/dealer info: Original owner's name/address removed for obvious privacy reasons

Interesting note(s): Engine suffix is coded as "TX" instead of typical "CTX."
