1971 El Camino Interior Paint Colors
Disclaimer: Components painted the two gloss percentages taken from Ditzler paint catalog. These colors are listed for all Chevrolets and some colors may not be applicable to Chevelles.
Color Name | 0 Gloss |
Ditzler | Rinshed-Mason | DuPont |
Black | X | 9317 | 168C41 | 4428 |
Dark Green | X | 44345 | 171B37 | 9822 |
Dark Saddle | X | 23453 | 171B86 | 9817 |
Dark Beige | X | 23452 | 171B85 | 9819 |
Dark Jade | X | 44316 | 171B36 | 9823 |
Dark Jade | X | 44315 | 171B38 | 9808L |
Trim Combination Number | Color Name | Ditzler Code DIA |
703, 705, 706 | Black | 9317 |
713, 714, 715 | Dark Beige | 23452 |
720, 721, 722 | Dark Saddle | 23453 |
731, 732 | Dark Jade | 44316 |

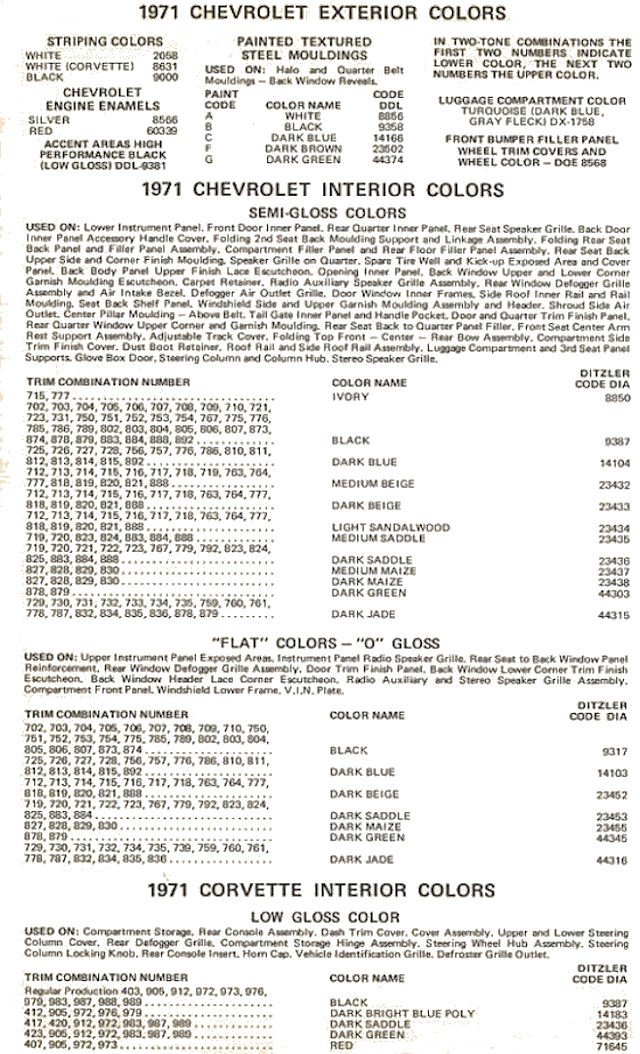

According to paint chart page from Ditzler, the following are painted
in 0% gloss:
Upper instrument panel - exposed areas; instrument panel radio speaker
grille; rear seat to back window panel reinforcement; rear window defogger
grille assembly; door trim finish panel; back window lower center trim
finish escutcheon; back window header lace escutcheon; radio auxiliary
and stereo speaker grille assembly; compartment front panel; windshield
lower frame; VIN plate.
Color Name | 30 Gloss |
Ditzler | Rinshed-Mason | DuPont |
Black | X | 9387 | 170B40 | 99L |
Dark Green | X | 44303 | 171B39 | 9815L |
Dark Saddle | X | 23436 | 171B88 | 9801L |
Medium Saddle | X | 23435 | 171B89 | 9812L |
Dark Beige | X | 23433 | 171B78 | 9810L |
Light Sandalwood | X | 23434 | 170B76 | 9716L |
Medium Beige | X | 23432 | 171B77 | 9809L |
Trim Combination Number | Color Name | Ditzler Code DIA |
703, 705, 705, 706, 721, 731 | Black | 9387 |
713, 714, 715 | Medium Beige | 23432 |
713, 714, 715 | Dark Beige | 23433 |
713, 714, 715 | Light Sandalwood | 23434 |
720 | Medium Saddle | 23435 |
720, 721, 722 | Dark Saddle | 23436 |
731, 732 | Dark Jade | 44315 |
According to paint chart page from Ditzler, the following are painted
in 30% gloss:
Lower instrument panel; front door inner panel; rear quarter inner panel;
rear seat speaker grille; back door inner panel accessory handle cover;
folding 2nd seat back; molding support and linkage assembly; folding
rear seat back panel &filler panel assembly; compartment filler
panel & rear filler panel assembly; rear seat back; upper side &
corner finish molding
; speaker grille on quarter; spare tire well & kick-up exposed area
and cover panel; back body panel upper finish lace escutcheon; opening
inner panel; back window upper & lower corner garnish molding escutcheon;
carpet retainer; radio auxiliary speaker grille assembly; rear window
defogger grille assembly and air intake bezel; defogger air outlet grille;
door window inner frames; side roof inner rail and rail mould8ing; seat
back shelf panel; windshield side and upper garnish molding assembly &
header; shroud side air outlet; center pillar molding - above belt;
tail gate inner panel and handle pocket; door and quarter trim finish
panel; rear quarter windows upper corner and garnish molding; rear seat
back to quarter panel filler; front seat center arm rest support assembly;
adjustable track cover; folding top front - center - rear bow assembly;
compartment side trim finish cover; dust boot retainer; roof rail and
side roof rail assembly; luggage compartment and 3rd seat panel support;
glove box door; steering column and column hub; stereo speaker grille.
