1972 El Camino Engine ID Codes
The engine identification code consists of the engine assembly plant, the engine assembly date, and 3 letter suffix indicating the cubic inch displacement, the horsepower rating, and generally, what type of transmission was to be installed with the engine. Manual transmissions required a bushing in the rear of the bellhousing where an automatic transmission did not. Many engine "accessories" such as the carburetor, distributor, and exhaust manifolds were not installed at the engine assembly plant but rather at the final assembly plant.
Engine |
Transmission |
Notes |
||
Code |
Size-Carb |
HP-RPO |
||
CAH | 250-1 | 110 | Manual-3 | Low Compression Engine |
CBA | 250-1 | Manual-3/4 | A.I.R./Smog CAM (Calif), NB2 | |
CBD | 250-1 | Manual-3 | A.I.R./Smog CAM (Calif), taxi NB2 | |
CBG | 250-1 | 110 | Manual-3 | |
CBJ | 250-1 | 110 | Powerglide | |
CBK | 250-1 | 110 | Powerglide | Taxi |
CDL | 250-1 | 110 | Powerglide | A.I.R. |
CDM | 250-1 | 110 | Standard | A.I.R. |
CSD | 250-1 | Powerglide | A.I.R./Smog CAM (Calif), NB2 | |
CAY | 307-2 | Manual-3/4 | A.I.R./Smog CAM (Calif), NB2 | |
CAZ | 307-2 | Powerglide | A.I.R./Smog CAM (Calif), NB2 | |
CKG | 307-2 | 130 | Standard | |
CKH | 307-2 | 130 | Powerglide | |
CMA | 307-2 | TH-350 | A.I.R./Smog CAM (Calif), NB2 | |
CTK | 307-2 | 130 | TH-350 | |
CAR | 350-2 | 165-L65 | TH-350 | A.I.R./Smog CAM (Calif), Police NB2 |
CDA * | 350-2 | 165-L65 | Manual-3/4 | A.I.R./Smog CAM (Calif), NB2 |
CDB ** | 350-2 | 165-L65 | Powerglide | NB2 |
CDD * | 350-4 | 175-L48 | TH-350 | A.I.R./Smog CAM (Calif), NB2 |
CDG | 350-4 | 175-L48 | Manual-3/4 | A.I.R./Smog CAM (Calif), NB2 |
CKA * | 350-2 | 165-L65 | Manual-3/4 | |
CKB * | 350-2 | 165-L65 | TH-350 | |
CKD * | 350-4 | 175-L48 | TH-350 | |
CKK | 350-4 | 175-L48 | Manual-4 | |
CMD * | 350-2 | 165-L65 | TH-350 | A.I.R./Smog CAM (Calif), NB2 |
CSH | 350-2 | 165-L65 | TH-350 | Police |
CTL * | 350-2 | 165-L65 | TH-350 | |
CLA | 402-4 | 240-LS3 | Manual-4 | |
CLB * | 402-4 | 240-LS3 | TH-400 | |
CLS | 402-4 | 240-LS3 | Manual-3 | |
CTA | 402-4 | 240-LS3 | Manual-3/4 | A.I.R./Police - Taxi |
CTB * | 402-4 | 240-LS3 | TH-400 | A.I.R. |
CTJ | 402-4 | 240-LS3 | TH-400 | A.I.R./Police - Taxi |
CPA | 454-4 | 270-LS5 | Manual-3/4 | |
CPD * | 454-4 | 270-LS5 | TH-400 | |
CRW * | 454-4 | 270-LS5 | TH-400 | A.I.R. |
CRX | 454-4 | 270-LS5 | Manual-3/4 | A.I.R. |
Engine production totals are listed for U.S. production only.
** Monte Carlo exclusive
A total of 21,779 6-cyl engines were reported installed in Chevelles.
A total of 562,604 8-cyl engines were installed in Chevelles and Monte
Carlos; 165,706 307cid, 373,268 350cid, and 23,630 402/454cid engines.
However, this does not match the total of 8-cyl cars reportedly built
in the U.S. of 578,052. This is a difference of 15,488 8-cyl units with
no engines.
Engines reported for the (U.S.-built) Monte Carlo (163,087) does not match the production figure of 163,085 cars. Those break down to 151,859 350cid, 9,960 402cid and 1,268 454cid engines. Seems to be 2 extra engines reported.
Chevrolet reports 584,532 transmissions on the Accumulative Production Report of July 31, 1972. This number is only for U.S.-built Chevelles. This figure does not match the total reported U.S.-built Chevelles of 584,530. This is a difference of 2 transmissions (all types) without cars to put them in. The listed transmissions for the (U.S.-built) Monte Carlo does match the 163,087 engine production but not reported model production number of 163,085.
There is no breakdown of engines or transmissions imported from Canada or installed in imported Chevelles or Monte Carlos.

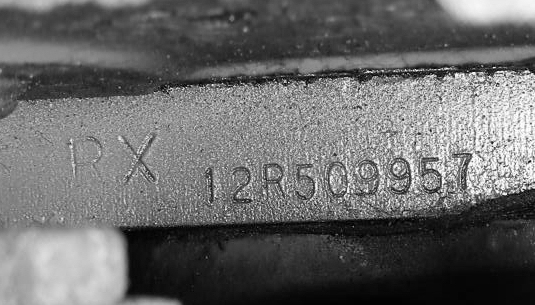

Arlington engine pad

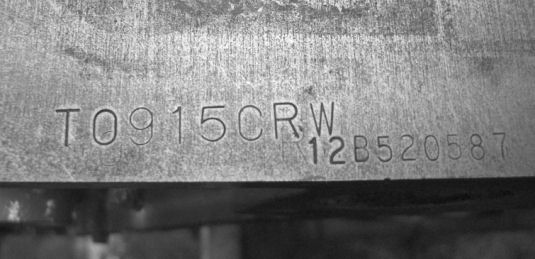

Baltimore engine pad - Courtesy Bill Hall
