1967 Camaro Fisher Body Unit Number Plate

© CAMAROWORLD
1967 Trim Tags
© CAMAROWORLD
1968 Trim Tags
© CAMAROWORLD
1969 Trim Tags

© CamaroWorld
Los Angeles, California assembly plant

© CamaroWorld
Norwood, Ohio assembly plant

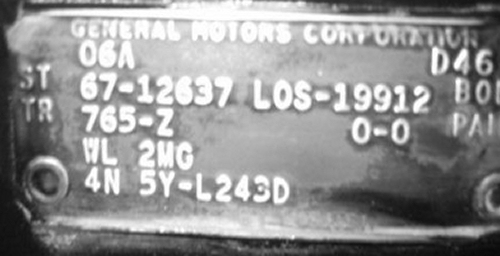

Typical 1967 Fisher Body plate breakdown

Do not confuse the Fisher Body unit number plate information with that found on the Vehicle Identification Number (VIN) plate. The series depiction on the Fisher Body unit number plate does NOT have the meaning as the VIN plate. The "12" is the Camaro model code, "4" or "6" is the interior level code, and "37" is the body style code. The 12437 style breaks down to Camaro (12), standard interior (4) and coupe body style (37). The 12667 style breaks down to Camaro (12), custom interior (6) and convertible body style (67). The 1968 and 1969 model years the third digit was fixed to "4" and had no meaning.

Los Angeles and Norwood have different information on their plates. Please check the individual assembly plant for specifics.

Line 1: Production date of vehicle. A typical production date is 02C

This production date of 02C decodes to February (02) in the third week (C).
Unfortunately, nobody has ever defined what dates are associated with a week letter as they vary from plant to plant.

01 - January 07 - July
02 - February 08 - August
03 - March 09 - September
04 - April 10 - October
05 - May 11 - November
06 - June 12 - December

A - First Week
B - Second Week
C - Third Week
D - Fourth Week
E - Fifth Week

Los Angeles (Van Nuys) used a letter and 1- to 3-digit number to indicate approximate day and scheduling number. Beginning with the letter "A" on the first day of a month's production and the 1- to 3-digit number reset after 999; day letter was reset the next production day.

NORWOOD INTERIOR TRIM

The interior color code of the Camaro is coded as a single letter stamped in the upper right corner; "K" in the example above

Code Color Code Color Code Color
A Red Vinyl H Blue Vinyl S Blue Cloth
B Blue K Parchment/Black T Turquoise
C Black Vinyl L Black Vinyl (opt.) U Blue Vinyl (opt.)
D Red M Maroon V Fawn Vinyl
E Black N Black Cloth W Gold Cloth
F Fawn P Plum Y Yellow
G Gold R Bright Blue

LOS ANGELES PRODUCTION DAY

Los Angeles stamped the production day and that day's sequence in the upper right corner; O297 ~ Production day (O), sequence number for that day (297) where "O" is the 15th work day of the month and "297" is the 297th Camaro scheduled for that day and would be reset to 001 if needed.

Line 2: The first two-digit number on line two is the model year of production followed by the Fisher Body style designation, assembly plant, and the Fisher Body unit number used for production purposes.

SERIES/MODEL IDENTIFICATION (for trim level purposes only, not for engine type identification)

12400 SERIES - STANDARD INTERIOR
MODEL 12437 ~ 2-DOOR COUPE
MODEL 12467 ~ 2-DOOR CONVERTIBLE

12600 SERIES - CUSTOM INTERIOR
MODEL 12637 ~ 2-DOOR COUPE
MODEL 12667 ~ 2-DOOR CONVERTIBLE

Line 3: Interior trim and lower/upper paint (or vinyl/convertible) codes.

PLANT DESIGNATION

NOR for Norwood or LOS for Los Angeles

FISHER BODY NUMBER

Each Fisher Body plant would sequence the body number as scheduled and not by order of final assembly. Los Angeles body numbers were generally sequenced by style number, 12437, 12637, 12467, and 12667. Highest known body numbers for each style are:
12437 - 39,907
12467 - 1,954
12637 - 20,988
12667 - 2,188
The total of body numbers (65,037) is greater than the total Camaros built at Los Angeles (65,008) leaving one to surmise some orders may have been canceled before they were built.

INTERIOR TRIM

Bench or bucket seat color and a letter to designate whether headrests were ordered. See the interior page for details.

PAINT COLOR

The paint code for lower and upper body colors are noted here with a single letter for each. If a coupe was fitted with a vinyl top the second position is a number corresponding to the vinyl top color; likewise if the car is a convertible the second position is a number corresponding to the convertible top color. See the paint page for details. Special paint orders were handled by the Fleet & Special Order (F&SO) office (not the COPO office). Typically a special paint car would have a dash ( - ) character in the lower and/or upper body color position. Norwood-built Indy Pace Car replicas used the FS&) code of -061A. Sometimes a special paint order was shown as "0-0" on the trim tag along with the F&SO code such as L243D.
Copyright © CamaroWorld

Lines 4/5: Group option groups were listed such as the W 2M or DL 2LG 3SL 4P on the examples above. The 1967 model year was the only year the Camaro would use these group option codes.

GROUP 1 - No number precedes GROUP 1
D ~ Power convertible top [RPO C06] E ~ Tinted glass (all) [RPO A01]
L ~ Folding rear seat [RPO A67] W ~ Tinted Windshield only [RPO A02]
X ~ Power windows [RPO A31]

GROUP 2 - preceded by the number "2"
B ~ H.D. 3-speed floor shift [RPO M11/13/15] E ~ Air Conditioning [RPO C60]
G ~ Center console [RPO D55] H ~ Heater delete [RPO C48]
L ~ 4-speed transmission [RPO M20/21] M ~ Automatic transmission [M35 or M40] (Los Angeles)
M ~ Powerglide transmission & Console [M35 & D55] (Norwood)
R ~ Rear seat speaker [RPO U80] S ~ Rear antenna [RPO U73]
U ~ Stereo tape system [RPO U57] Z ~ Turbo Hydramatic 400 transmission [RPO M40]
Supposedly Norwood only but also found on Los Angeles plate

GROUP 3 - preceded by the number "3"
B ~ Rear window defogger [RPO C50] D ~ Instrument Panel Courtesy Lights [RPO U29]
K ~ Exterior Molding Group [RPO Z21] L ~ Rally Sport Package [RPO Z22]
S ~ Interior Group Decor [RPO Z23]

GROUP 4 - preceded by the number "4"
F ~ Remote Control Mirror [RPO D33] K ~ SS396 [with RPO L78]
Black rear cove w/rectangular radius rods
L ~ RPO Z28
Rally Stripes w/radius rod
N ~ SS396 [with RPO L35]
Black rear cove w/round radius rods
P ~ SS350 [RPO L48] or
RPO L30/RPO M20 (w/12-bolt axle and 2L) *
- non SS396/Z28 with black tailpan w/radius rod


GROUP 5 - preceded by the number "5"
B ~ Rear bumper guards [RPO V32] C ~ Shoulder Harness [RPO AS1]
O ~ Seat belt delete {export} [RPO A48] Y ~ Deluxe seat belts [RPO A39]
Z ~ Deluxe shoulder belts [RPO A85]

* The L30 (327/275) required a 4-speed transmission (Saginaw) when the "P" code was used for that combination. The 4P code was not used in early production SS350-optioned Camaros. Van Nuys began using the 4P code in September and Van Nuys (Los Angeles) in October. The 4P code was used for the RPO L30.M20 combination in late December 1966 / early January 1967 time frame.


© CamaroWorld
