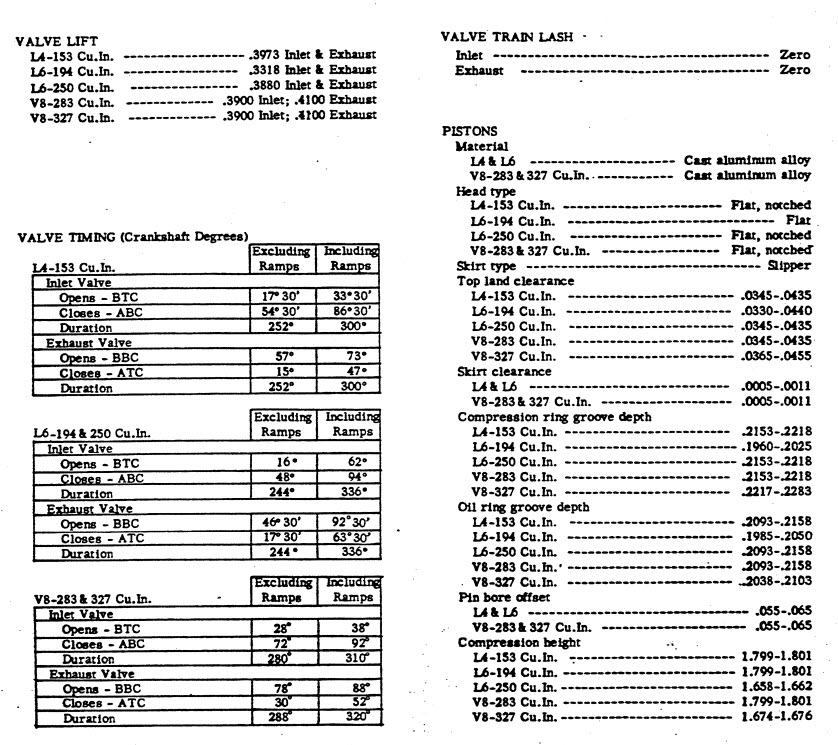

1967 Chevelle Camshaft Specifications



© ChevelleWorld
1964

© ChevelleWorld
1965

© ChevelleWorld
1966

© ChevelleWorld
1967

© ChevelleWorld
1968

© ChevelleWorld
1969

© ChevelleWorld
1970

© ChevelleWorld
1971

© ChevelleWorld
1972



© ChevelleWorld



In 1967 the 396 V8 camshaft abandoned the grooved rear journal and matching bearing in the engine block in favor of a smooth journal like the 283/327 V8. Any camshaft from a 1965 or 1966 396 engine can be used in a 1967 or later block but not the other way around. This groove is clearly visible in this photo on the camshaft on the left.

© ChevelleWorld
Courtesy - Bruce Testor



Note the oil groove in rear cam journal of this 396 V8 camshaft on the left. Both 1965 and 1966 396 V8 engines require this groove along with corresponding rear cam bearing. Most aftermarket camshaft manufacturers DO NOT list the 65/66 396 V8 in their catalogs due to this groove. However, any later camshaft will work if grooved and most aftermarket cam suppliers will either groove the cam for a nominal fee or send you the specifications so you can have your local machine shop perform the operation.
