1969 Chevelle Paint Colors
|
|
|
|
|
|
|
|
|
There are no known numbers for any particular color for a particular series or body style whether it be a solid color or two-tone. The numbers shown below are valid for all series and body style Chevelles. There are also no known numbers for the different colors of convertible or vinyl tops. So just how many red (or any color) SS 396-optioned Chevelle sport coupes (or any other series) were built is not known and cannot even be calculated with any accuracy. All Chevelle assembly plants have the lower body color first followed by the upper body color (or convertible/vinyl top) color. There are two special colors for the SS 396-optioned 300 Deluxe and Malibu series, Hugger Orange and Daytona Yellow. Even though they are 'unique' to the SS396-optioned Chevelles, each was still a $125.00 option. Caveat: Some Yenko COPO Chevelles in 1969 were painted either Hugger Orange or Daytona Yellow; 16 are widely accepted as being delivered in Hugger Orange and 12 in Daytona Yellow. Whether these are reflected in the total number reported for each color isn't known. If you have any proof one way or the other, please contact me and I'll update this information.
The 1969 model year changed the format for paint and convertible/vinyl top codes. Paint codes changed from a letter to a 2-digit number and convertible/vinyl top codes changed from number to a letter.
PAINT CODE - (RPO) | SALES NAME | COLOR NAME | SALES QUANTITY |
10 (910AA) | Tuxedo Black | Black | 7,441 |
40 (916YY) | Butternut Yellow | Yellow | 27,028 |
50 (911CC) | Dover White | White | 33,152 |
51 (923EE) | Dusk Blue | Dark Blue | 19,230 |
52 (913RR) | Garnet Red | Red | 29,449 |
53 (922DD) | Glacier Blue | Blue | 36,377 |
55 (921KK) | Azure Turquoise | Turquoise | 22,980 |
57 (920VV) | Fathom Green | Dark Green | 41,226 |
59 (919WW) | Frost Lime (1) | Lime | 81,883 |
61 (918SS) | Burnished Brown | Dark Brown | 17,774 |
63 (917MM) | Champagne | Champagne | 23,610 |
65 (915GG) | Olympic Gold | Gold | 44,118 |
67 (914nn) | Burgundy | Maroon | 14,415 |
69 (912BB) | Cortez Silver | Silver | 20,419 |
71 (924FF) | LeMans Blue | Bright Blue | 51,060 |
72 (927QQ) | Hugger Orange (2) | Orange | 5,194 |
76 (926PP) | Daytona Yellow (2) | Bright Yellow | 2,841 |
Special & Prime | 3,465 | ||
Two-Tone Combinations |
|||
PAINT CODE - (RPO) | SALES NAMES (lower/upper) | COLOR NAMES | SALES QUANTITY |

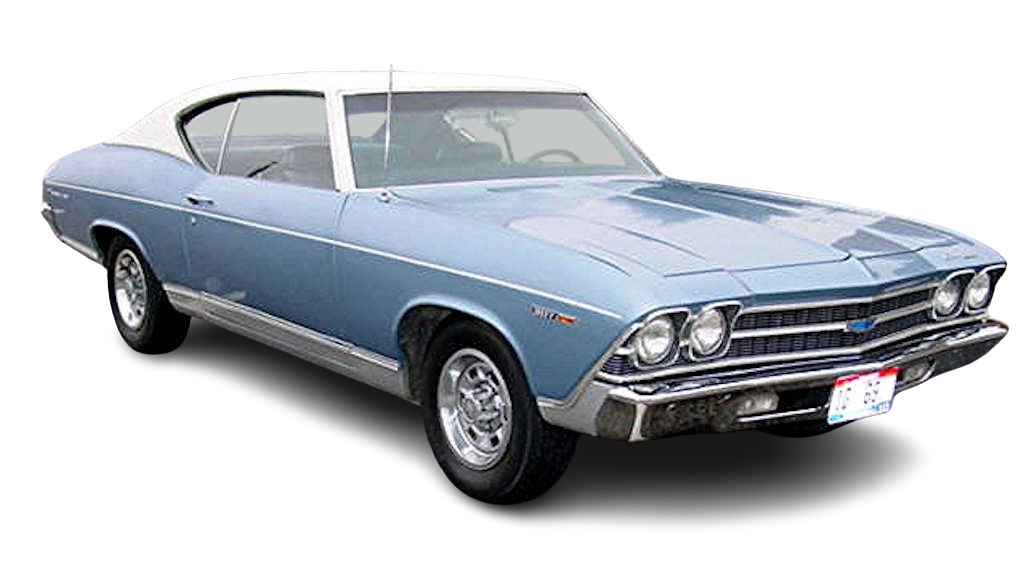

53 / 50 (954DC) | Glacier Blue / Dover White | Blue / White | 4,590 |
53 / 51 (955DE) | Glacier Blue / Dusk Blue | Blue / Dark Blue | 798 |
51 / 53 (956ED) | Dusk Blue / Glacier | Dark Blue / Blue | 833 |

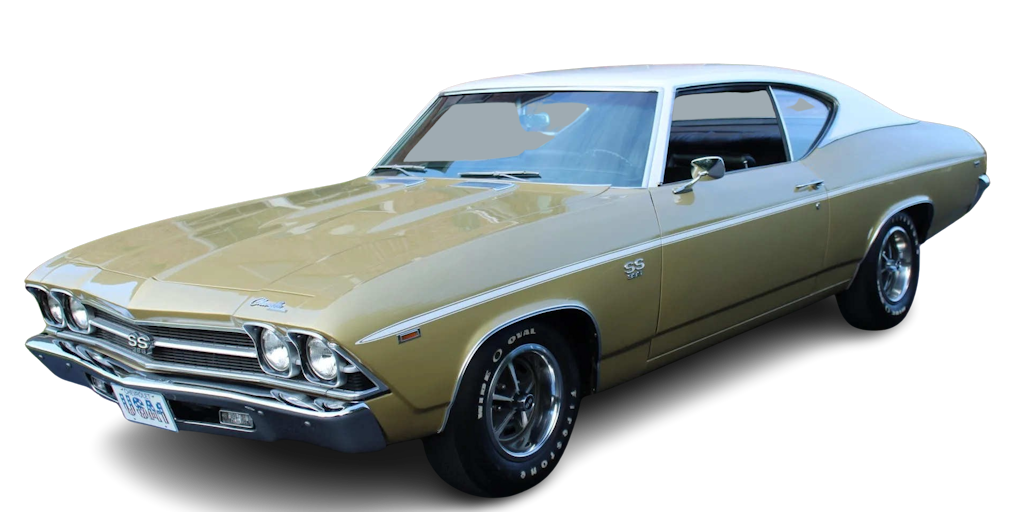

65 / 50 (957GC) | Olympic Gold / Dover White | Gold / White | 5,057 |

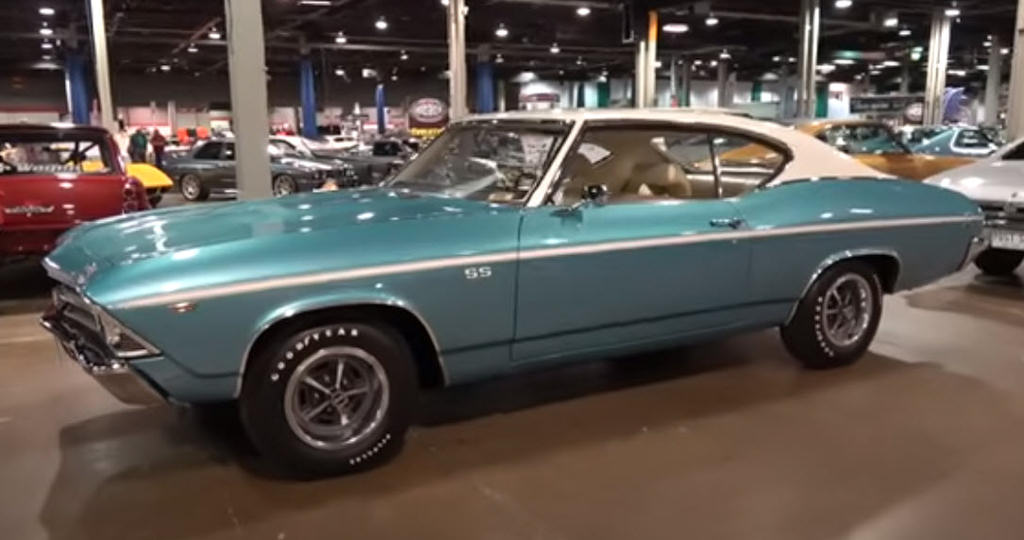

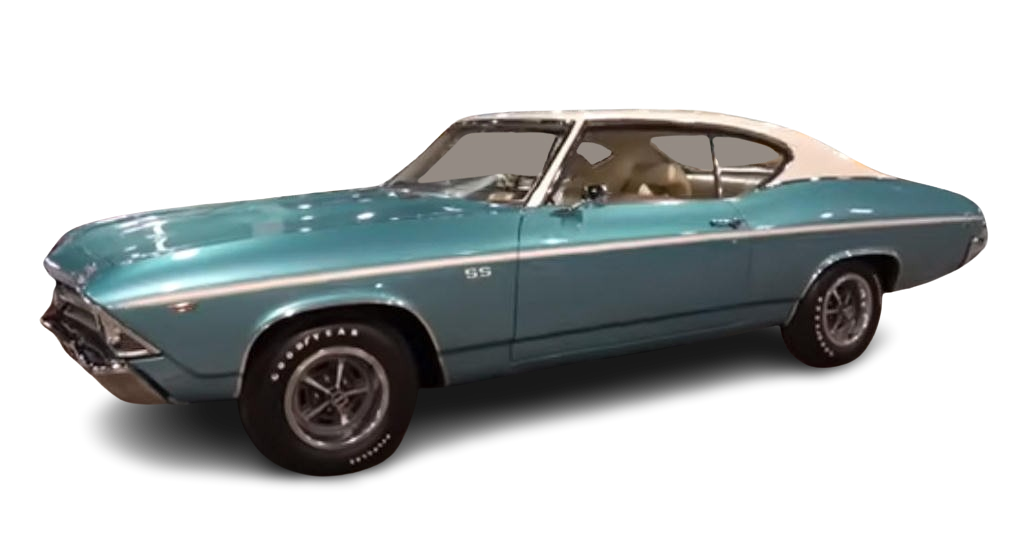

55 / 50 (958KC) | Azure Turquoise / Dover White | Turquoise / White | 4,754 |

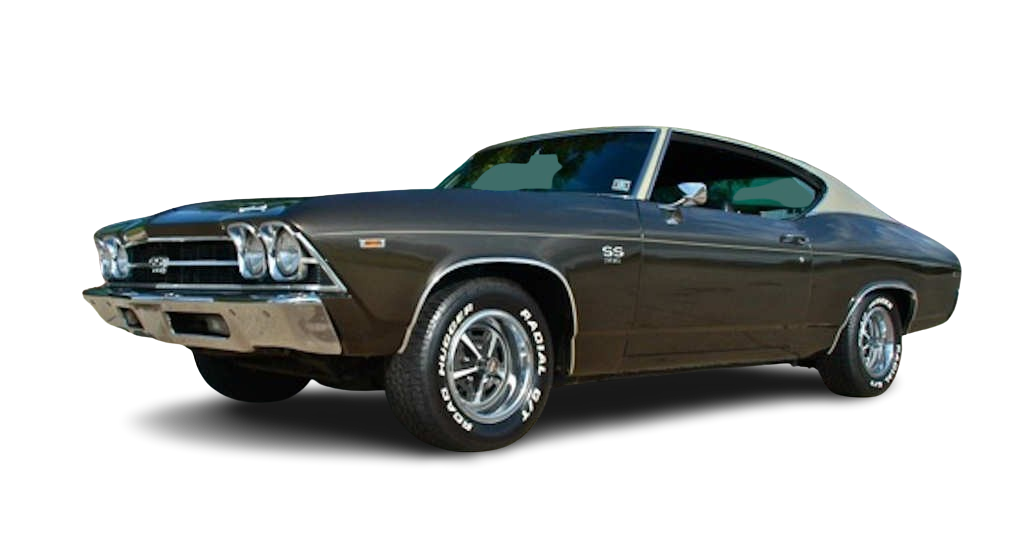

61 / 63 (959SM) | Burnished Brown / Champagne | Dark Brown / Champagne | 5,658 |
Notes of Interest |
|||
Convertible top color letters: A - White (Std. C05AA) B - Black (RPO C05BB) Vinyl top color letters: B - Black (RPO C08BB) E - Parchment (RPO C08EE) C - Dark Blue (RPO C08CC) F - Dark Brown (RPO C08FF) G or S - Midnight Green (RPO C08GG) |
|||
(1) The sales name of Frost Lime
is also referred to in GM documentation as Frost Green. (2) SS 396 and COPO colors only and available at an additional $42.15. The sales name "Hugger Orange" is also referred to in GM documentation as "Monaco Orange." |
|||
One could order any available color in 1969 via the Fleet & Special Order (F&SO) process. |
Color Rating by Sales
There is no known breakdown of color and specific series or body style, numbers are for all 1969 Chevelles including convertibles where they would have a convertible top. Colors are listed total number of sales from most to least. Two-tone combinations are listed separately.
Sales Rating | Total Reported Sold | Color |
1 | 81,833 | (59) - Frost Lime (1) |
2 | 51,060 | (59) - LeMans Blue |
3 | 44,118 | (65) - Olympic Gold |
4 | 41,226 | (57) - Fathom Green |
5 | 36,377 | (53) - Glacier Blue |
6 | 33,152 | (50) - Dover White |
7 | 29,449 | (52 ) - Garnet Red |
8 | 27,028 | (40) - Butternut Yellow |
9 | 23,610 | (63) - Champagne |
10 | 22,980 | (55) - Azure Turquoise |
11 | 20,419 | (69) - Cortez Silver |
12 | 19,230 | (51) - Dusk Blue |
13 | 17,724 | (61) - Burnished Brown |
14 | 14,415 | (67) - Burgundy |
15 | 7,441 | (10) - Tuxedo Black |
16 | 5,194 | (76) - Hugger Orange (2) |
17 | 3,465 | Special & Prime |
18 | 2,841 | (72) - Daytona Yellow (2) |
Sales Rating | Two-Tone | Colors - lower/upper |
1 | 5,658 | (61/63 - 959SM) - Burnished Brown / Champagne |
2 | 5,057 | (65/50 - 957GC) - Olympic Gold / Dover White |
3 | 4,754 | (55/50 - 958KC) - Azure Turquoise / Dover White |
4 | 4,590 | (53/50 - 954DC) - Glacier Blue / Dover White |
5 | 833 | (51/53 - 956ED) - Dusk Blue / Glacier Blue |
7 | 798 | (53/51 - 956ED) - Glacier Blue / Dusk Blue |
Interior Paint Codes
Disclaimer: Components painted the two gloss percentages taken from Ditzler paint catalog.
Color Name | 0 Gloss |
Ditzler | Rinshed-Mason | DuPont |
Flat Black | X | 9317 | 168C41 | 4428L |
Dark Blue | X | 13767 | 169V22 | 9578LH |
Dark Turquoise | X | 13768 | 169V32 | 9579LH |
Dark Saddle | X | 22974 | 168B82 | 9458L |
Dark Gold | X | 23153 | 168B77 | 9583L |
Midnight Green | X | 43993 | 169V36 | 9582LH |
Dark Green | X | 43994 | 169V34 | 9581LH |
Dark Red | X | 71643 | 167C53R | 9580LM |
According to paint chart page from Ditzler, the following convertible
parts are painted in 0% gloss in black, Ditzler Code #DIA-9266 regardless
of material color:
Folding top front and side roof rail assembly; folding top side roof
rail lock assembly; folding top front center and rear bow assembly;
folding roof rail linkage.
Color Name | 30 Gloss |
Ditzler | Rinshed-Mason | DuPont |
Black | X | 9266 | A-946 | 88 |
Dark Blue | X | 13789 | 169B29 | 9586LH |
Dark Turquoise | X | 13792 | 169V20 | 9588LH |
Medium Blue | X | 13786 | 169V21 | 9585LH |
Medium Turquoise | X | 13787 | 169V23 | 9587LH |
Medium Saddle | X | 22968 | 168B85 | 9475L |
Dark Saddle | X | 22994 | 168B81 | 9488L |
Medium Gold | X | 23160 | 169C75 | 9549L |
Dark Gold | X | 23161 | 169C76 | 9590L |
Midnight Green | X | 44010 | 169V35 | 9593LH |
Dark Green | X | 44013 | 169V31 | 9592LH |
Medium Green | X | 44008 | 169B32 | 9591L |
Dark Red | X | 71750 | 166C56R | 9429LM |
Red | X | 71591 | 168C51R | 9528LH |
According to paint chart page from Ditzler, the following are painted
in 30% gloss:
Lower instrument panel; a/c kick panel cover; ash tray face plate; glove
box door and hinge; stereo speaker and auxiliary speaker grille; instrument
panel trim plate; glove box garnish moldings; seat separator compartment;
instrument panel compartment door and hinge; stop arm and nose cover;
inner panel of door and quarter panel; side rear roof rail; upper corner &
lower center back window pin lace escutcheon; folding seat back pin
molding and escutcheon; rear seat folding back panel extension; rear
seat back support assembly; folding seat mounting support and linkage
assembly; side air outlet control bushing shroud; rear window defogger
grille assembly; inner door window frames; central pillar upper cover;
front seat back from outer bar; rear seat folding back panel assembly;
compartment front foundation retainer; front seat bottom frame; hinge
pin inner support; front seat arm rest; lower trim cover; windshield
upper garnish molding.
GM of Canada Paint Code Chart
General Motors of Canada, LTD. offered many of the same colors as their U.S. counterpart. Although these colors are listed as 1969 Buick-Chev-Olds-Pontiac Colors on the paint code chart. It's unknown if these additional colors were available on Chevelles as well. Several Canadian colors were identical to U.S. colors, only the sales names were a bit different.
Say you saw it here on © ChevelleWorld
Color vs. Sales Name
Paint color names often differ from the advertised Sales Name. One example might be where the factory paint color is simply RED but the sales name may be BOLERO RED or CRANBERRY RED. Yes, the paint mixing formulas are different between BOLERO RED and CRANBERRY RED but to the factory it was still just red. In a case where their may be two or more hues of a color with sales names such as DEEPWATER BLUE, NANTUCKET BLUE, and MARINA BLUE, the factory colors are simply shown as MEDIUM BLUE, DARK BLUE, or BRIGHT BLUE. A given paint color for a year may have a different sales name for Chevrolet than it does for say Buick, Oldsmobile, or Pontiac. An example of this is the 1969 sales name for Chevrolet of HUGGER/MONACO ORANGE is the same color as the 1969/1970 Pontiac sales name of CAROUSEL RED. Same color, same OEM supplier mixing formula, just different sales names for the two GM divisions.
