1972 Chevelle1967 Chevelle Warranty Card Protect-O-Plate
|
|
|
|
|
|
|
|
|
Decode your Protect-O-Plate Warranty card.
The Protect-O-Plate (P-O-P) was designed to be used by Chevrolet dealers to identify the owner and the vehicle. The owner's name, address and the vehicle's delivery date was embossed on a special tape affixed to the plate.
The P-O-P was glued to the inside rear cover of the "Chevrolet 1967 Owner Protection Plan and New Vehicle Warranty" booklet. When warranty service was performed on a customer's car the P-O-P was stamped on the work order.
The P-O-P was never meant to be used as documentation the way enthusiasts today use the card. Then again, the body broadcast sheets, trim build sheets, etc. weren't meant to be used either and were more often than not discarded at the assembly plant. Likewise, the P-O-P was usually discarded when the vehicle went out of warranty or when the car was sold as warranties usually did not go to the new owner.
Today, the P-O-P is one of the best pieces of documentation you can have as it not only identifies the VIN but also the correct engine ID code and date of the engine, the correct transmission number and date along with the rear end gear ratio and date. Some options were also coded on the P-O-P such as power steering, power brakes, radio, air conditioning, etc.
The Protect-O-Plate is located inside the inside rear cover of the warranty booklet. The original stamping is a mirrored stamping, this example from the Fremont, CA. assembly plant.
Beware of reproduction (fake) Protect-O-Plates, they can make a put-together Chevelle appear to be authentic. Sellers will even put your name on authentic-looking GM tape. Apparently it's not illegal but any fake documentation is misleading to a potential buyer and, to many Chevelle owners, unethical as well.

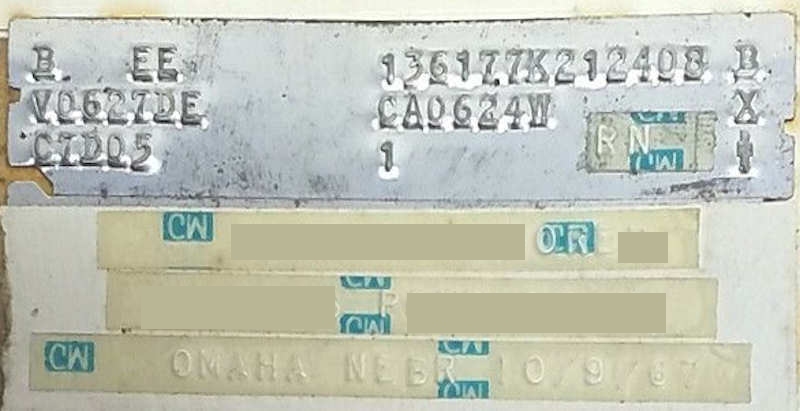

This is the above Kansas City, MO. P-O-P mirrored for easy reading.
Line 1:
* The letter
"B" in this example is the interior trim code for blue seats.
* The letters "EE" in this example the exterior paint code for
Deepwater Blue.
* The complete VIN for the car.
* The "B" is for the carburetor type and in this example it is a "B"
for a Bay City carburetor.
Line 2:
*
Engine identification showing the engine plant code ("V" in this
example
for the Flint engine plant), a 4-digit number for the day and month
of the engine assembly, and a two-letter suffix code identifying the
engine size/hp and transmission type. in this example the engine was assembled
at the Flint engine plant on June 27 (1967) and it's a 283cid
engine with
Powerglide automatic transmission.
* The rear end ratio, date, and rear end assembly plant. in this example "CA" is a 3.08:1 gear ratio, 0624 is the assembly date of June 24 (1967) and "W" is for the Warren, MI. axle plant.
* The letter 'X' in this example is the build month of the car, July 1967.
Line 3:
* The C7D05 decodes to a Cleveland-built 1967 Powerglide with a build date
of April 5 (1967).
* The number "1" in the first position indicates the car was
optioned with RPO N40 power steering.
*
The bowtie emblem indicates this is a Chevrolet plate.
