Chevrolet & Ford Rear End Widths



ChevyWorld.net
Supporters

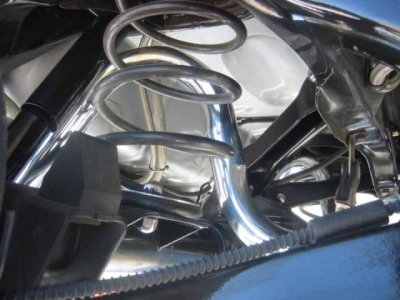

© ChevyWorld Lower spring mount on 1966 Chevelle. A bolt and plate arrangement hold the spring in place and the pigtail is the same general diameter as the rest of the spring.

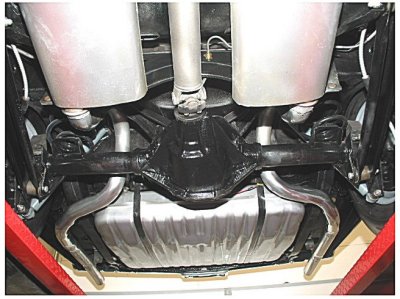

© ChevyWorld Lower spring mount on 67 and later Chevelles fit over a tower on the rear end and the pigtail is a smaller diameter.

It has been reported that the 1967 model year could have either type of spring mount but I cannot confirm this

Casting numbers found to be the most prevalent in Chevelle 12-bolt rear ends:

1965 Chevelle 3859140
1966 Chevelle 3875745
1967 Chevelle 3894939
68-69 Chevelle 3917124
1969 Chevelle 3959038
1970-1972 Chevelle 3969278



Casting numbers found to be the most prevalent in Chevelle 10-bolt rear ends:
1964 Chevelle 3839390

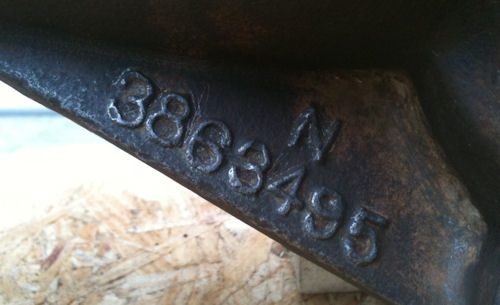

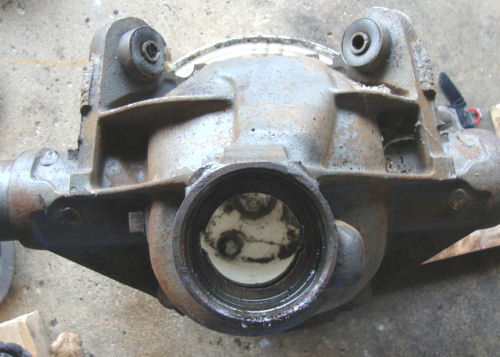

1965 Chevelle 3859139 / 3863495(1)
1966 Chevelle 3875744
1967 Chevelle 3894938
1968-1969 Chevelle 3917123
1970-1073 Chevelle 3969277
(1) Reportedly found on several 1965 Chevelles
© ChevyWorld
© ChevyWorld
Courtesy Leslie McFadden - 1965 Chevelle El Camino



As always, there will most likely be some rumor of overlap in numbers but unless you have a build sheet/Protect-O-Plate and can verify the stamped codes as original, who knows? It should also be noted that the 1965 12-bolt is the only one with the diagonal bracing on the center section casting.



According to an old article, Inside '64 -- '72 A-Bodies, (Car Craft Magazine), 1967 was a transition year in that A-body cars might have a 1964-66 style rear end, a 1968-72 rear end (which is wider, and commonly available), or a "hybrid" rear end, which will have the 60.5-inch width, but with the early spring mounting pad and trailing arm brackets. Several late 1966 rear ends with casting number 3875745, one dated L 8 6 (December 8, 1966), have been found in early 1967 Chevelles and retain the retention plates to secure the rear springs.



Measurements taken on a 1067 Chevelle rear end for comparison.



© ChevyWorld

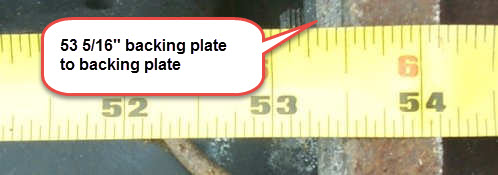

Backing plate to backing plate - 53 5/16-inches (+/-).



© ChevyWorld

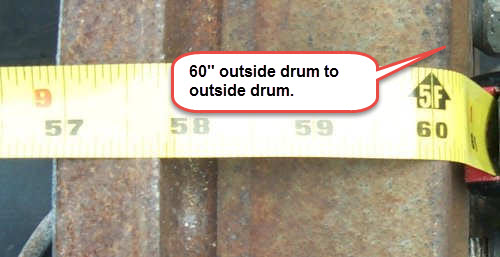

Outside drum to outside drum - 60-inches (+/-)



Chevrolet

Outside
Width
Year Model
57.75 1962-1964 Chevy II/Nova
57.75 1965-1967 Chevy II/Nova
58.00 1978-1988 Chevy Malibu, Monte Carlo
59.50 1968-1982 Corvette
60.00 1955-1964 Chevy Car
60.00 1967-1969 Camaro
60.25 1968-1979 Chevy II/Nova
60.50 1984-1995 Corvette
60.50 1964-1967 Chevelle
62.00 1955-1959 Chevy Pickup
61.25 1968-1972 Chevelle
62.50 1970-1981 Camaro/Firebird

Ford

Outside
Width
Year Model
57.25 1957-1959 Ford, Ranchero, Station Wagon
57.25 1965-1966 Mustang
58.00 1966-1977 Bronco
58.00 1964-1965 Falcon
58.00 1977-1981 Granada/Versailles
58.50 1977-1981 Versailles
60.00 1958-1960 Edsel
61.00 1964-1971 Ford Full Size
61.00 1949-1951 Mercury
61.25 1957-1972 Ford F-100 Pickup
61.25 1960-1964 Ford Full Size
61.25 1971-1973 Mustang
61.25 1967-1973 Torino, Ranchero, Fairlane
63.00 1970-1979 Ranchero & Torino
63.00 1972-1979 Ford Full Size & Intermediate
63.50 1967 Fairlane
65.25 1973-1986 Ford F-150 Pickup
65.25 1978-1986 Bronco
65.25 1973-1986 Ford Van 3/4 Ton
68.00 1972 Ford Van 3/4 Ton
69.25 1977-1986 Ford E-150 Van



What is a Ratio?

A gear ratio is written in the form of something like 3.31:1 (note the location of the colon character). The number to the left of the colon represents the number of revolutions one thing must turn before the number of revolutions on the right of the colon. In the case of a ratio of 3.31:1, the driveshaft turns 3.31 revolutions to one revolution of the tire/wheel assembly. For those that didn't pay attention in math class, a ratio is expressed at the relationship between two quantities or items. Many people take the time to insert a colon ( : ) where a period ( . ) should be such as 3:31 or 4:10. Strange since a period is easier to type than a colon.



© ChevyWorld

© ChevyWorld

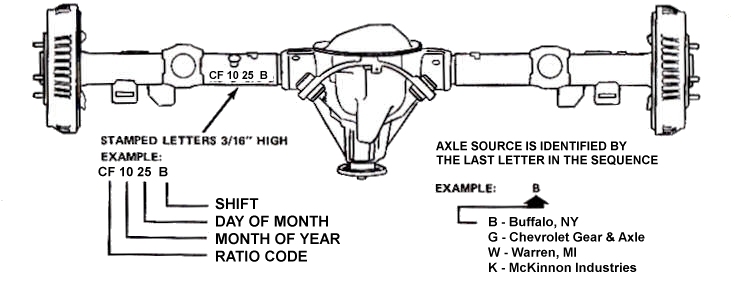

1964-1969 rear end example



© ChevyWorld

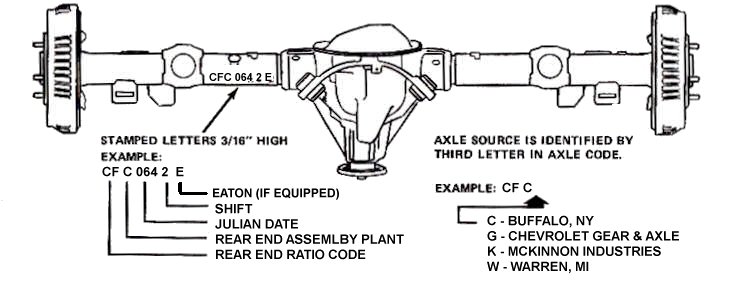

1970-1972 rear end example



Safety first! Place a chock (a block of wood will do in a pinch) in front of the front tires so the car does not move forward and slide off the jack stands. Raise (preferably with a hydraulic jack) the rear tires off the ground, place a jack stand under the frame and lower the jack onto the jack stands confirming the tires are still off the ground.



How to determine if you have a limited slip rear end.



With both rear tires off the ground rotate one of the two rear tires. If the opposite tire turns the same direction or doesn't turn at all, then the rear end is a limited slip rear end. If the opposite tires turns the opposite direction, then it's probably an open (non-limited slip) rear axle.



For a non-Positraction rear end only one rear tire needs to be off the ground:



Turn the rear tire a quarter turn counterclockwise (to the left) to remove any slack in the drivetrain.



With a piece of chalk or masking tape, mark an area lengthwise along the driveshaft that can easily be seen from the side of the car and make a corresponding mark on the rear tire as close to the centerline (vertically) as possible for reference (6 o'clock or 12 o'clock position). Rotate the rear tire clockwise or counterclockwise TWO revolutions and count the number of times the mark on the driveshaft rotates for two full revolutions of the rear tire.



The number of rotations of the driveshaft will help determine your final rear end gear ratio. For example, if the driveshaft rotates about 3 full turns, your final rear end gear ratio is probably 3.07:1 (12-bolt) or 3.08:1 (10-bolt); 3 1/3 driveshaft rotations for one full rotation of the rear tire, your final rear end ratio would be about 3.31:1; 3 3/4 driveshaft rotations would be about 3.73:1; 2 3/4 driveshaft rotations would be about 2.73:1, and so on.



Naturally you can rotate the rear tire any even number of times while counting the driveshaft revolutions - just be sure to divide the numbers accordingly. If you turn the rear tire SIX times instead of TWO, you must divide the driveshaft rotations by THREE since SIX is three times greater than TWO.



For a Positraction rear end both rear tires need to be off the ground:



The same procedure is applicable for a limited slip (GM's trademark name is "Positraction") only ONE revolution of the rear tire is needed. Naturally you can rotate the rear tires as many times as you like - just be sure to divide the driveshaft rotations by the same number.



You can calculate a desirable rear gear ratio based on your transmission type and overall tire diameter to help you determine your speed at any given RPMs knowing the (1) transmission, (2) tire size, and (3) final rear end ratio. Knowing any two of the three can help you find the third. If you know your tire size and approximate RPM at a given speed, you can play with the rear end gear ratio number to determine your overall rear end gear ratio. RPM Calculator.



To calculate MPH from a KNOWN tire diameter, KNOWN rpm, and KNOWN rear end gear ratio the formula is: MPH = (Tire Diameter x RPM) / (Gear ratio x 336)



To calculate your final gear ratio from a KNOWN tire diameter, KNOWN rpm, and KNOWN mph the formula is: Final Gear = ((Tire Diameter x RPM) / MPH) / 336.



The tire size can affect the car's overall speed at the same engine rpm. For example a car with a tire diameter of 27 inches and a 3.31:1 rear gear ratio at 3000 rpms will be speeding along at 72.831 mph. If you replace the 27 inch diameter tire with a 30 inch diameter tire the car with the same 3.31:1 rear gear ratio at 3000 rpms is now speeding along at 80.924. To get back to the 72.831 mph one would need to run the engine at 2700 rpms and at 3000rpms the overall gear ration has changed to 3.68:1.



 Consequently a smaller diameter tire, say a 24 inch diameter tire, the same car with the 3.31:1 gear an 3000 rpms is now only speeding along at 64.739 mph. To get back to 72.831 mph, one would need to increase the rpms to 3375 and at 3000 rpms the overall gear ratio has changed to 2.94:1.

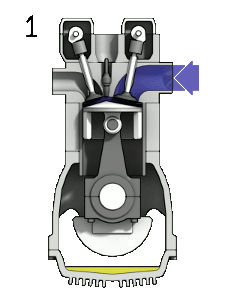

Engine Compression



An engine's static compression ratio is defined in much the same manner and is expressed the same way. The compression ratio is the ratio between the volume of the cylinder and combustion chamber at their maximum and minimum values. The specific cylinder bore and/or the engine's crankshaft stroke dimensions are of no consequence, compression ratio measures maximum vs. minimum volume regardless of what those volumes are. A 350cid engine's cylinder with a maximum volume of 44 cubic centimeters (cc) can have the same 10.25:1 compression ratio as a 454cid engine with a maximum cylinder volume of 57 cc. A compression ratio of 10.25:1 means the maximum volume of the cylinder is 10.25 times greater than the minimum volume of the cylinder.



The volume of the combustion chamber of the cylinder head will also affect the engine's compression ratio since that volume is considered in the maximum/minimum volume area.
