Group 4.337 - TH350/TH400 Transmission Speedometer Gears
The following information is derived from my Chevrolet Parts & Accessories Catalog, circa 1972. One should note these are SERVICE REPLACEMENT part numbers for the time and may or may not reflect part numbers of their respective day or now. Headings are how they appear in the catalog.
This data are provided for its informational value only.

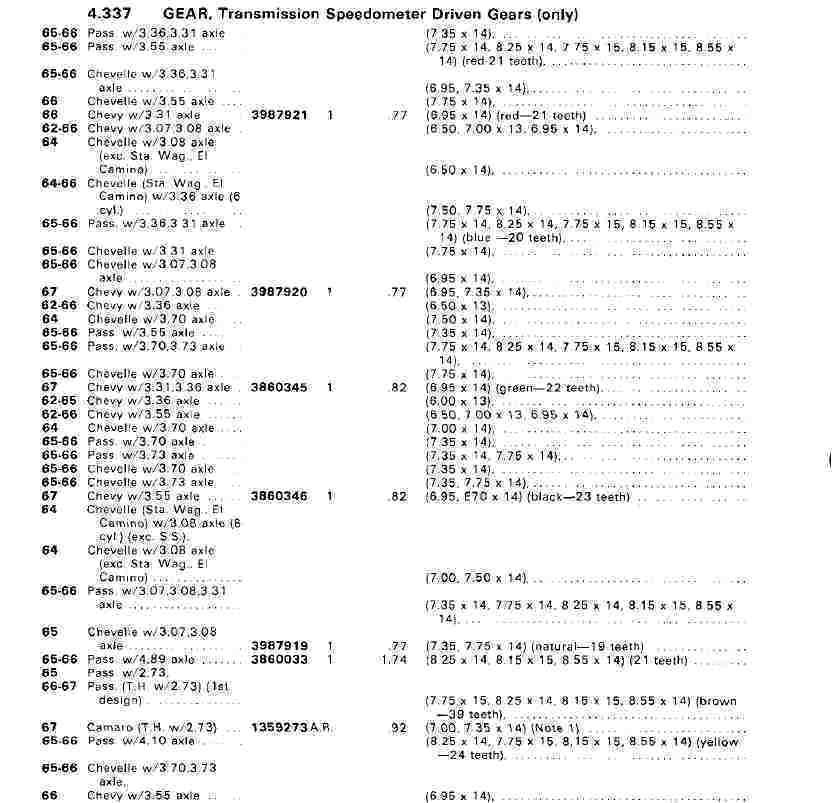

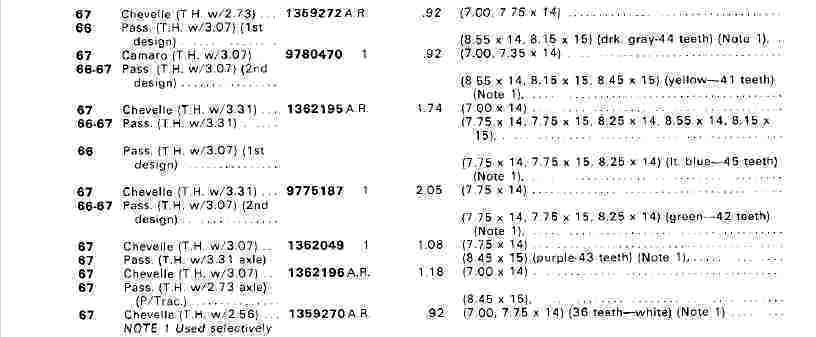

* Group 4.337 Gear, Transmission Speedometer Drive Gears (only) > page 2

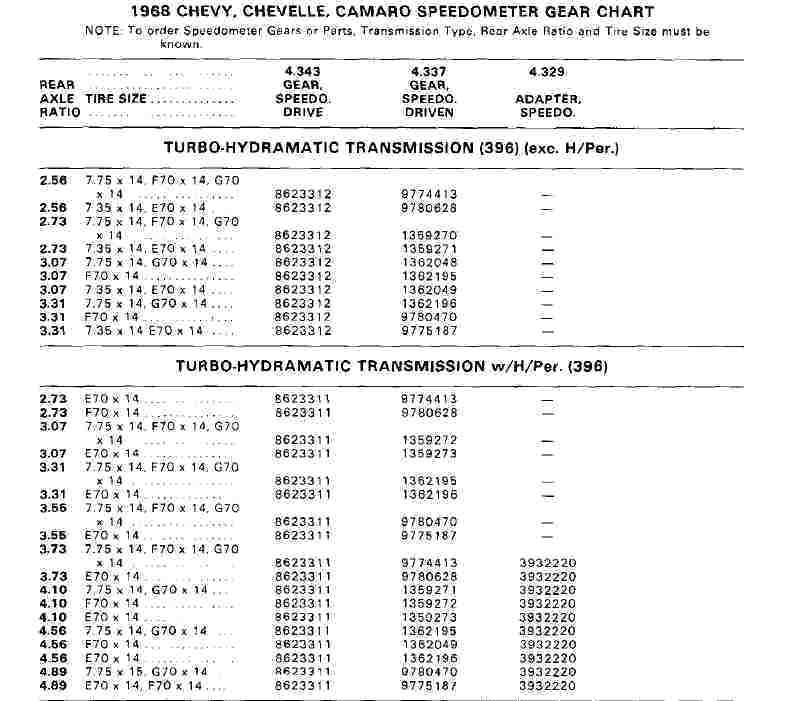

* 1968 CHEVY, CHEVELLE, CAMARO SPEEDOMETER GEAR CHART (TH400 - 396)

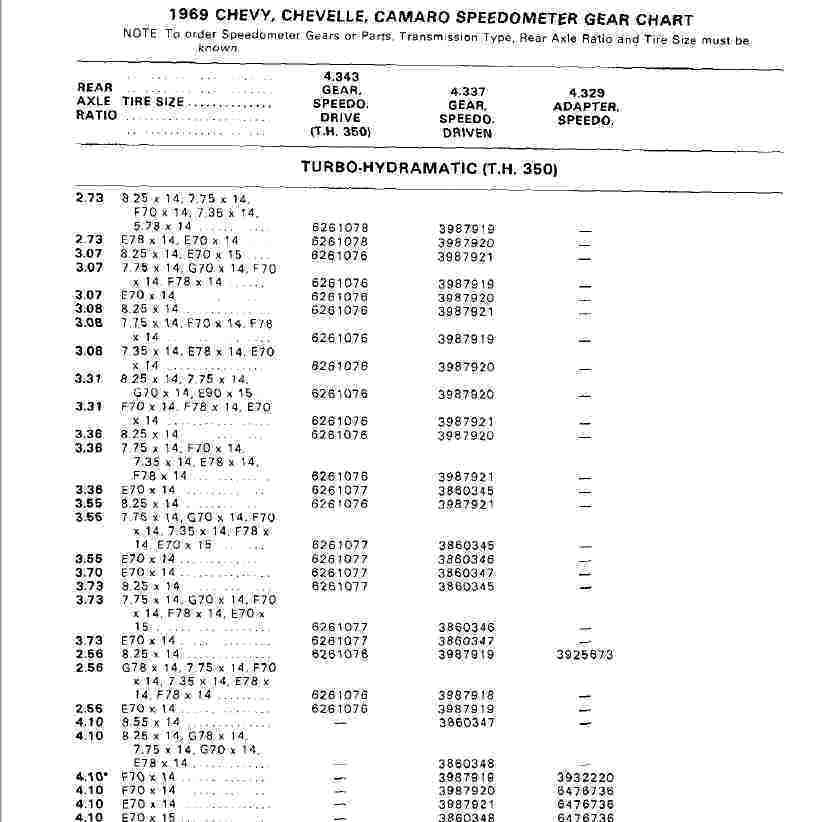

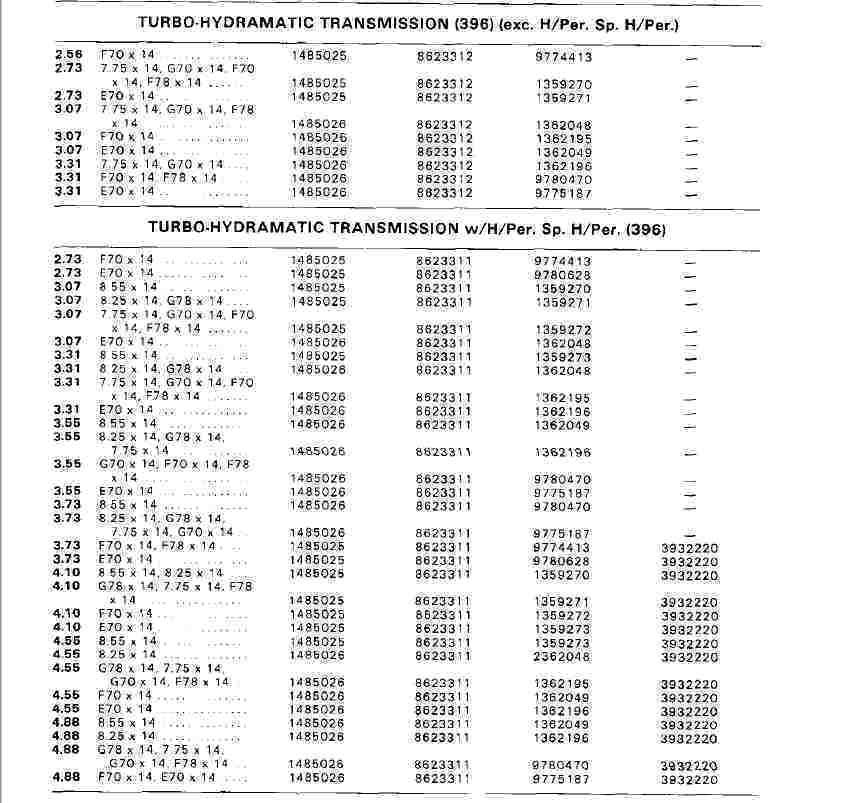

* 1969 CHEVY, CHEVELLE, CAMARO SPEEDOMETER GEAR CHART (TH350) > page 2

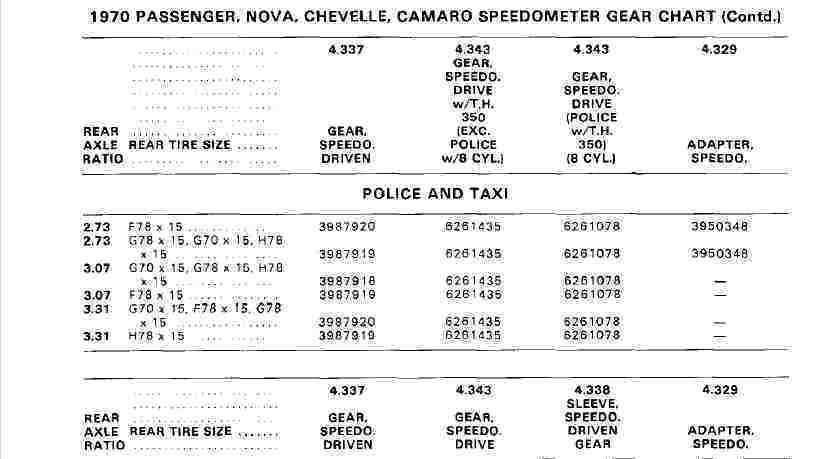

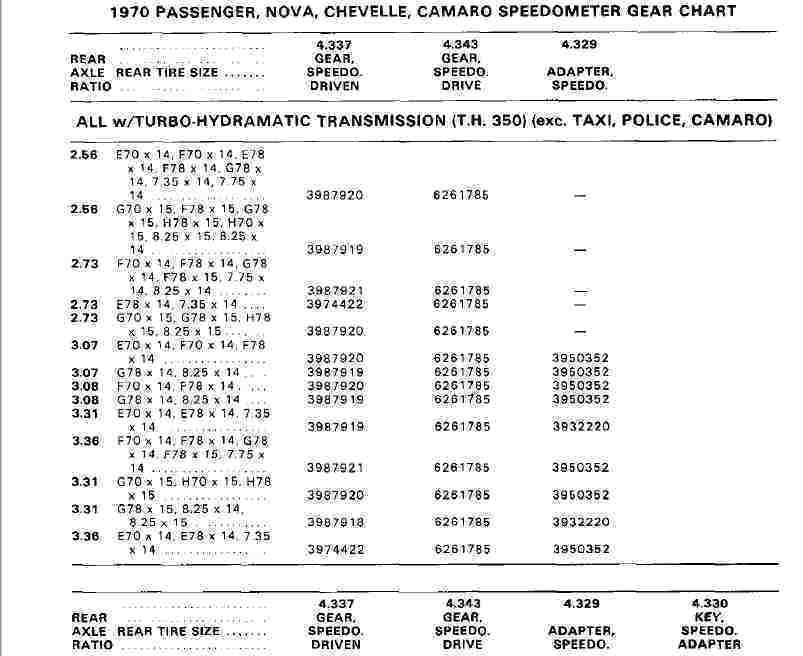

* 1970 PASSENGER, NOVA, CHEVELLE, CAMARO SPEEDOMETER GEAR CHART (TH 350)

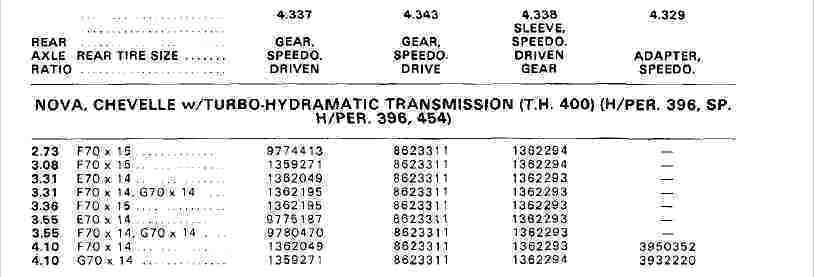

* 1970 NOVA, CHEVELLE, CAMARO SPEEDOMETER GEAR CHART (TH 400) > page 2 > page 3

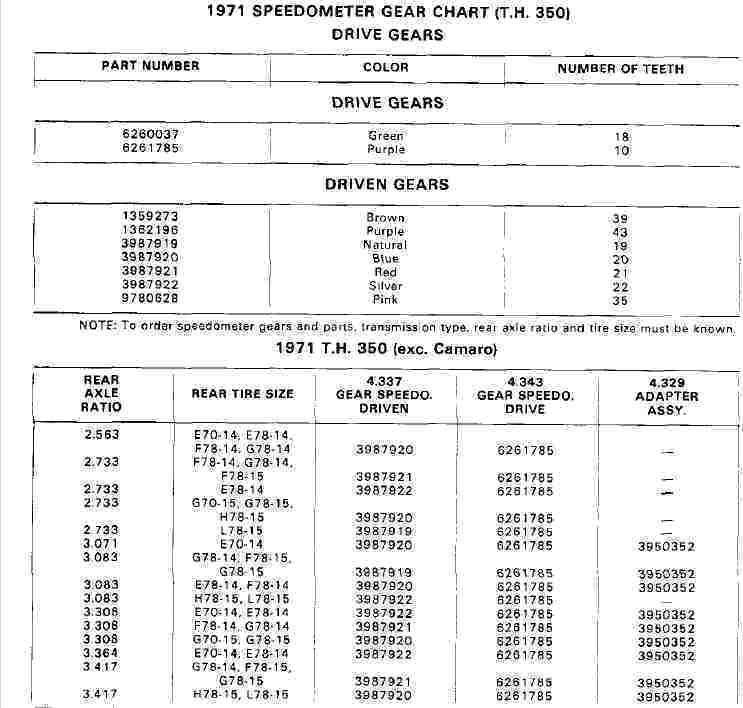

* 1971 SPEEDOMETER GEAR CHART (TH 350)

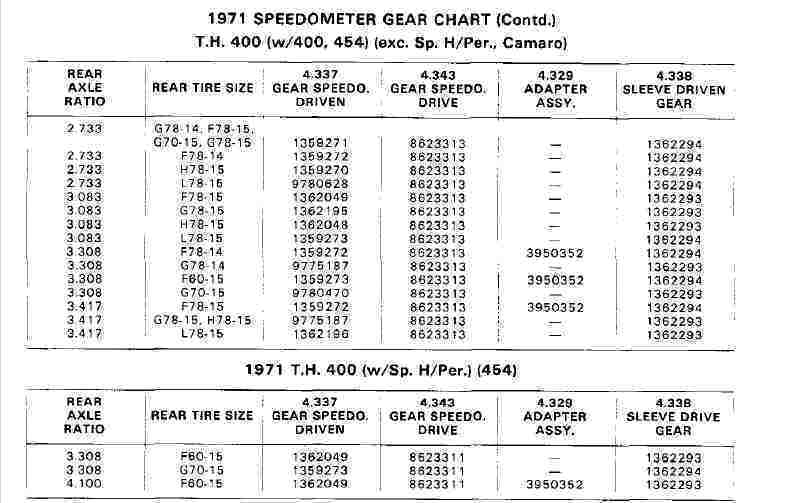

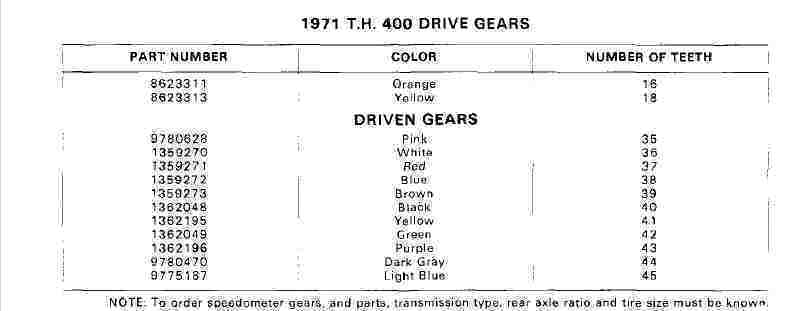

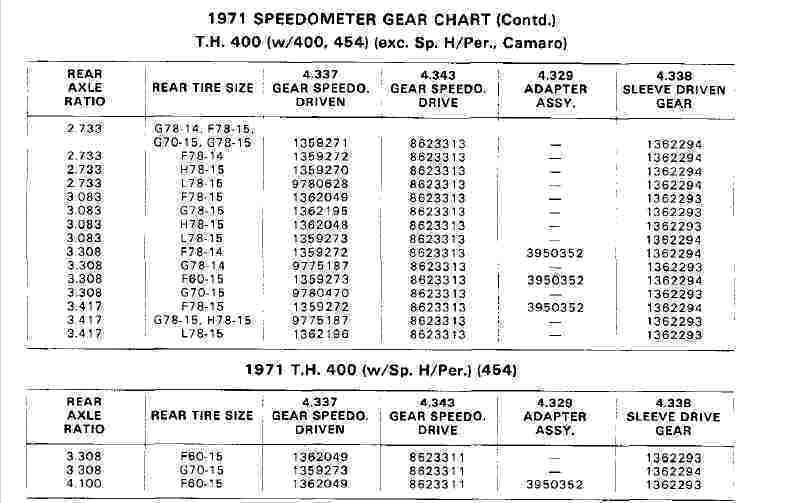

* 1971 SPEEDOMETER GEAR CHART (TH 400) > page 2 > page 3

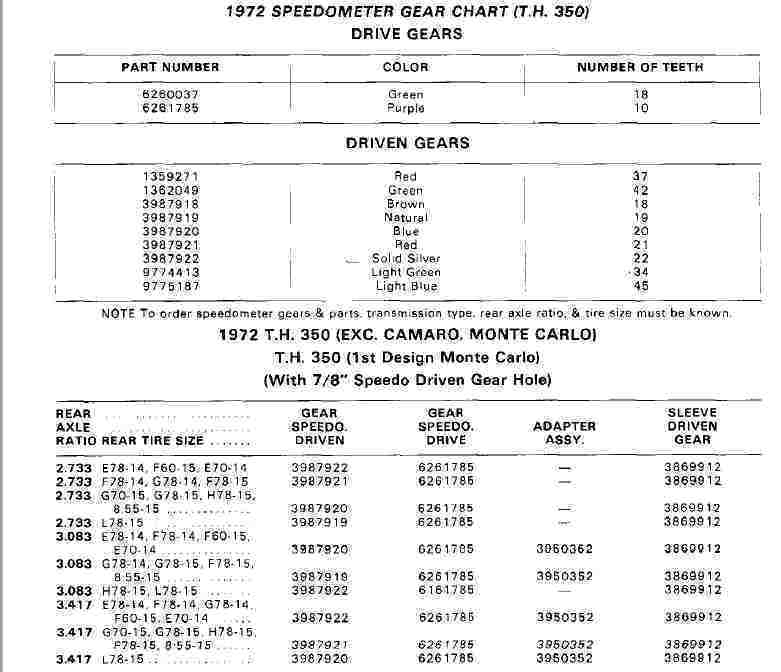

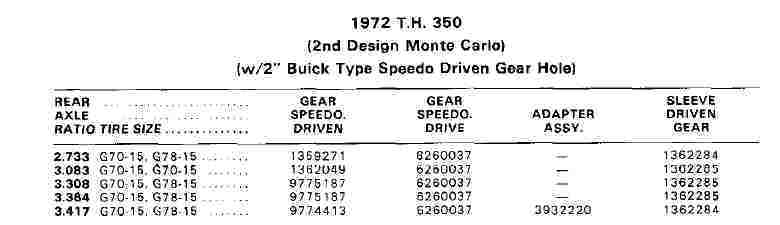

* 1972 SPEEDOMETER GEAR CHART (TH 350) > page 2

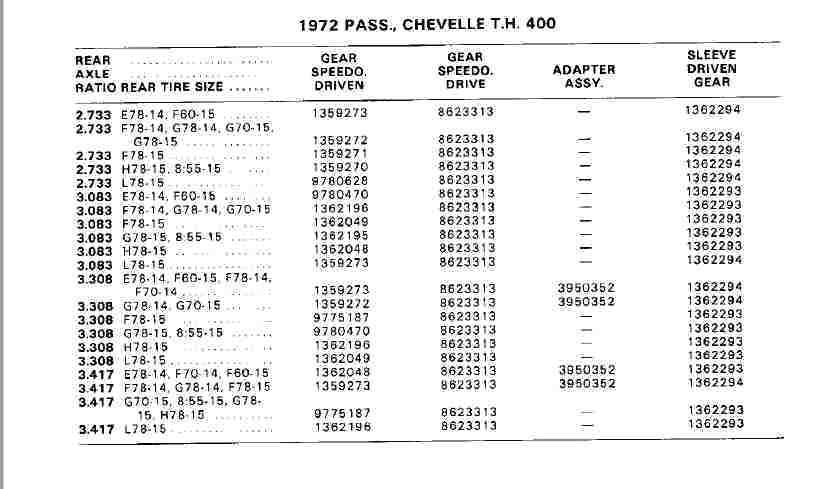

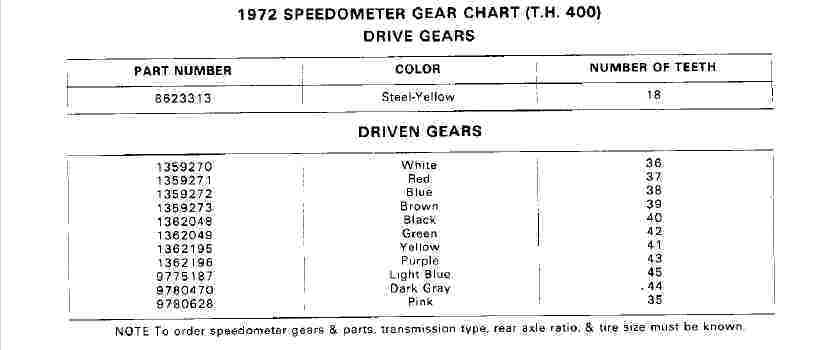

* 1972 SPEEDOMETER GEAR CHART (TH 400) > page 2
|
