Chevelle/Corvette LS6 Registry LS6 Engine Codes / Casting Dates
Engine |
Transmission |
Notes |
||
1970 Chevelle(1) |
||||
Code |
Size-Carb |
HP-RPO |
||
CRR | 454-4 | 450-LS6 | TH-400 | |
CRS(1) | 454-4 | 450-LS6 (w/L89) | TH-400 | Aluminum Heads |
CRV | 454-4 | 450-LS6 | Manual M22 | |
CRX | 454-4 | 450-LS6 | Manual M22 | Heavy Duty Clutch |
CRY(1) | 454-4 | 450-LS6 (w/L89) | Manual M22 | Aluminum Heads/Heavy Duty Clutch |
1971 Corvette(2) |
||||
CPW | 454-4 | 450-LS6 | Manual M22 | Aluminum Heads |
CPX | 454-4 | 450-LS6 | TH-400 | Aluminum Heads |
(1) There is some discussion about the 1970 Chevelle LS6-454 being sold with aluminum heads. One very respected source says that according to records at Tonawanda, no 454 engines came with aluminum heads. Their records indicate the L89 option was cancelled (not replaced) with the demise of the L78/L89 396 (402) engine combination. On the other hand, some have reported seeing the CRS code on engine blocks and one registrant here has a dealer bill-of-sale plus the warranty protect-o-plate card both showing the CRY code. A total of 4,475 RPO LS6 options sold with 1970 Chevelles with the Mlaibu series sport coupe, convertible, and El Camino. There is no 'official' breakdown of how mny of any body style were sold.
(2) There were only 188 RPO LS6 options sold in 1971 and all were Corvettes and sold with aluminum heads.
1970 Chevelle
Engine Specifications:
454 cubic inches
450 horsepower @ 5600
RPM
500 pound-feet torque @ 3600 RPM
Block ~ Casting number 3963512
* Bore ~ 4.21"
* Stroke ~ 4.00"
Heads ~ Casting number 3964291
- 1970 Cast Iron
* Closed chamber square port cast iron
* Intake valve size ~ 2.19"
* Exhaust valve size ~ 1.88"
* Combustion chamber ~ 109.037cc
* Castings used both "N" and "peanut" plugs
*
Compression ratio ~ 11.25:1
Carburetor ~ Holley
** Manual Transmission
* List 4491, 454 (CA-w/E.E.C.), M/T, #3967479 GM
* List 4557,
454 (FED-w/o E.E.C.), M/T, #3967477 GG
** Automatic Transmission
* List 4556, 454 (CA)-w/E.E.C., A/T, 3969894 GP
* List 4492, 454 (FED-w/o
E.E.C.), A/T,
#3969898 GR
Intake Manifold ~ Casting
number 3963569
* Aluminum low-rise. Carburetor is 1.25"
above cylinder head ports.
Exhaust Manifolds ~ Used on
other Chevrolet models and other years
* RH ~ Casting number
3916178
* LH ~ Casting number 3909879
Distributor
* Stamped number 1111437
Camshaft
* Same
camshaft used with 402/375hp engine
* Casting number 3904366
*
Part number 3904362
* Mechanical lifter
* Intake & Exhaust
lift .520"
* Intake duration 316 degrees
* Exhaust duration
302 degrees
Crankshaft ~ Casting number 3521
* Forged steel
* Stroke 4.00"

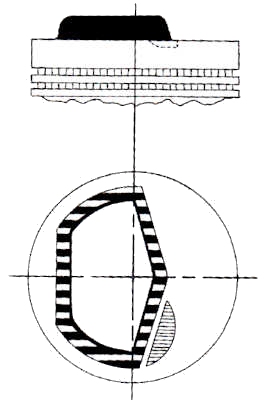

LS6 Piston Specs
* Domed head used only in this application.
* Weight 29.12 ounces
* Impact extruded alloy aluminum.
1971 Corvette
Engine Specifications:
454 cubic inches
425 horsepower @ 5600
RPM
475 pound-feet torque @ 3600 RPM
Heads ~ Casting number 3946074 - Aluminum
1971
* Closed chamber square port cast iron
* Intake valve size ~ 2.19"
* Exhaust valve size ~ 1.88"
* Combustion chamber ~ 118.000cc
*
Compression ratio ~ 11.25:1
Carburetor ~ Holley
** Manual Transmission
* M/T, 3986195
** Automatic Transmission
* A/T,
3986196
Intake Manifold ~ Casting
number 3963569
* Aluminum low-rise. Carburetor is 1.25"
above cylinder head ports.
Exhaust Manifolds
* RH ~
Casting number - xxxxxxx
* LH ~ Casting number 3880869
Distributor
* Automatic transmission -1102063
* Manual transmission -1102076
Camshaft
* Casting number 3904366
*
Part number 3904362
* Mechanical lifter
* Intake & Exhaust
lift .520"
* Intake duration 316 degrees
* Exhaust duration
302 degrees
Crankshaft ~ Casting number 3521
* Forged steel
* Stroke 4.00"
Casting Dates
* The following is applicable to cylinder heads,
engine blocks, intake manifolds, exhaust manifolds, and water pumps.
A - January | B - February | C - March | D - April |
E - May | F - June | G - July | H - August |
I - September | J - October | K - November | L - December |
* The following is applicable to alternators, distributors, and starter motors. Note electrical items did NOT use the letter "I" because it could be easily confused with the number "1."
A - January | B - February | C - March | D - April |
E - May | F - June | G - July | H - August |
J - September | K - October | L - November | M - December |
Holley Carburetor Dates
Holley Three-Digit Date Codes - Through 1972 | |||||
1st Digit |
2nd Digit |
3rd Digit |
|||
Stamp | Year | Stamp | Month | Stamp | Week |
5 | 1965 | 1 | January | 1 | 1st week |
6 | 1966 | 2 | February | 2 | 2nd week |
7 | 1967 | 3 | March | 3 | 3rd week |
8 | 1968 | 4 | April | 4 | 4th week |
9 | 1969 | 5 | May | 5 | 5th week |
0 | 1970 | 6 | June | ||
1 | 1971 | 7 | July | ||
2 | 1972 | 8 | August | ||
9 | September | ||||
0 | October | ||||
A | November | ||||
B | December |
