1966 Chevelle

Front Spring Code Chart - Group 7.412

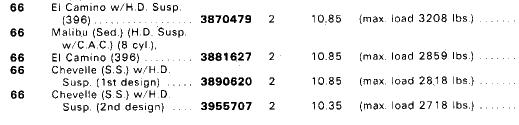

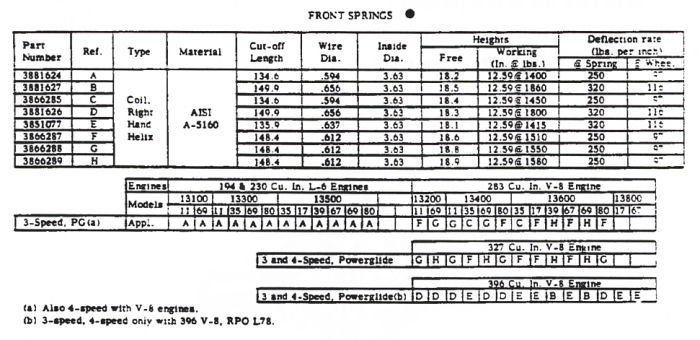

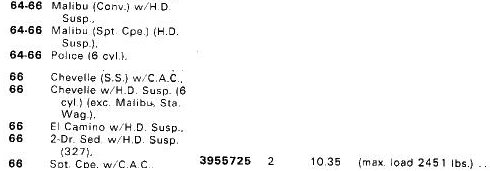

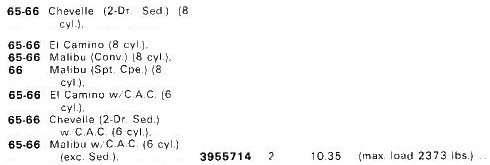

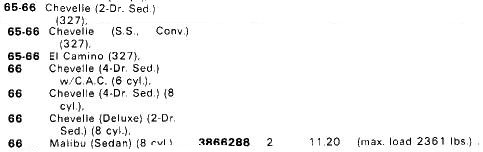

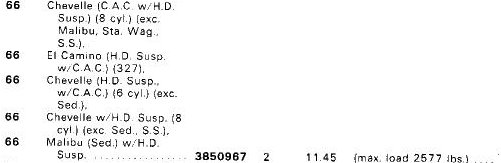

Two charts are shown for front springs. The first is a list of code letters and part numbers from the Assembly Instruction Manual. The second set is from data supplied from my Chevrolet Parts & Accessories Catalog. Another case where part numbers differ in some cases.

The springs vary with application and chassis packages, but there is one thing that is important: 1968-72 A-cars have a different front spring diameter when compared to 1964-67 front springs ("Knuckle Sandwich", Hot Rod, 6/87). 1969-present springs are based on computerized data concerning chassis package and body styles, but the rates vary, in which a softer or stiffer ride is preferred.

Note: 1964-67 front springs can be found on 1967-69 Camaros and 1968-74 Novas, but the spring rates will differ.

Charts from AIM

CODE COLORS - BLACK PRINT ON RED TAPE
CODE LETTERS PART NUMBER
GR 3850966
AZ 3866570
GT 3870479
GG 3881624
GM 3881627
AA 3856589
AB 3890620
GA 3895808
GB 3895809
GC 3895810
GD 3895811
GE 3895812
GF 3895813
GH 3895814
GI 3895915
GJ 3895816
GK 3895817
GS 3870477
AI 3856587
AH 3866286
AJ 3857692
AQ 3850967
AR 3851065
AW 3866294


File Photo - 02/09/2009

Model 13100 13200 13300 13400
Body Style 11 69 11 69 11 35 69 80 11 35 69 80
PROD.  3 SPD. TRANS
RPO M35 AUTO TRANS.		 GA GA GD GD GA GA GA GC GD GD GC AH
RPO L30     GC GD         GC GC GD AH
RPO C60 GC GC GE GE GC GD GD GG GE GH GE GI
  WITH RPO L30     GE GF         GE GH GH GI
RPO F40 AW AW AA AQ AW AR AJ AW AA AJ AQ AA
  WITH RPO L30     GR AA         GR AJ AA AQ
  WITH RPO C60 AA AA AQ AQ AA AW AA GR AQ AA AQ GJ
  WITH RPO C60 & L30     AQ GJ         AQ AQ GJ GJ
  WITH RPO L34-35-78                       GS
  WITH RPO L34-35-78 & C60                       GT
RPO L34-35-78                       AZ
  WITH RPO C60                       GM

Model 13500 13600 13800
Body Style 17 35 39 67 69 80 17 35 39 67 69 80 17 67
PROD. - 3 SPD. TRANS
RPO M35 AUTO TRANS.		 GB GA GB GA GB GC GG GG GD GD GG AH
RPO L30 GD GG GG GG GD AH
RPO C60 GD GD GC GC GD GG GE GH GF GF GE GI
  WITH RPO L30 GF GH GH GH GF GI
RPO F40 AR AR AJ AI AJ AW AJ AJ AA AW AQ AA
  WITH RPO L30 AW AJ AQ AJ AA AQ
  WITH RPO C60 AJ AW GR AW AA GR GR AA GJ AA AQ GJ
  WITH RPO C60 & L30 AA AQ GJ AA GJ GJ
  WITH RPO L34-35-78                       GS GK GK
  WITH RPO L34-35-78 & C60 GT AB AB
RPO L34-35-78 AZ AJ GR
  WITH RPO C60 GM AQ AQ

File Photo

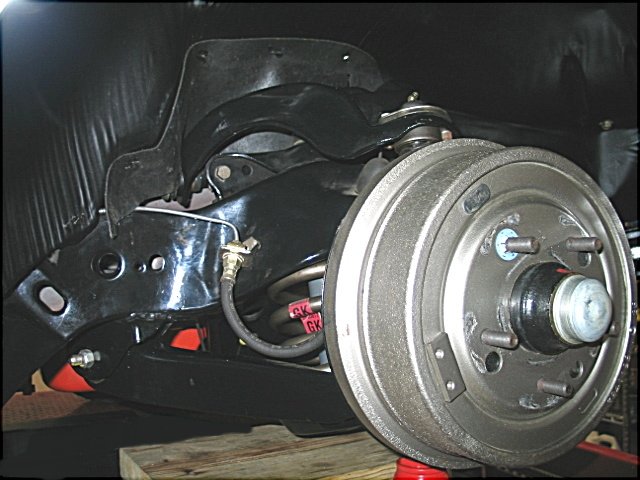

A couple of items of note here. Front spring tags have correct "GK" code, note speed nut on one stud of front drum. These were used to prevent the drum from falling off during the assembly process. Also note the rubber splash shied is installed from the outside of the fender skirt but the staples should be pinched on the inside of the skirt and not the outside.



File Photo

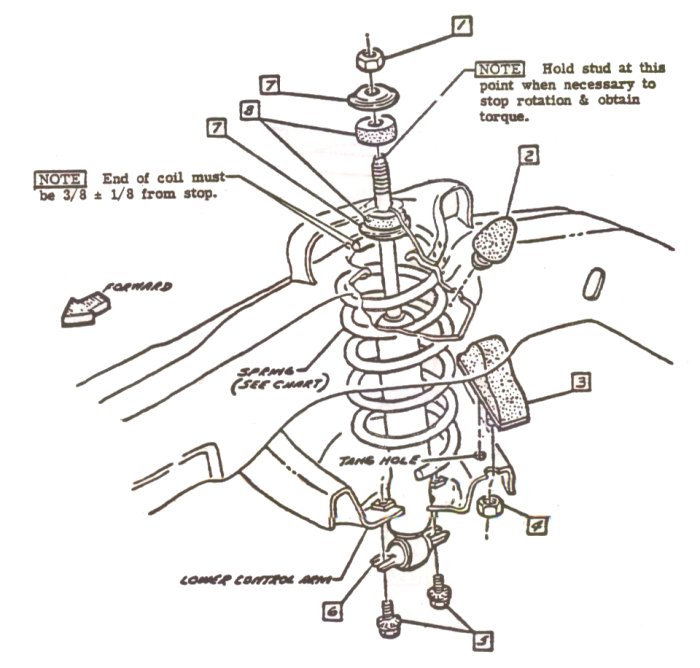

1. 1365067 Nut (1) 2. 384220 Bumper
2. 9770780 Bumper 13817-67		 3. 579140 Bumper Asm. 4. 9418931 Nut (2)
5. 3846202 Screw Asm (3) 6. 3186918 Shock Absorber (Except station wagon, pickup & F40)
6. 3178155 Station wagon, pickup & F40		 7. 5544409 Retainer 8. 381957 Grommet
(1) 60-120 lbs. in.
(2) 15-24 lbs. ft.
(3) 15-25 lbs. ft.
