Interior Trim Codes

Trim numbers listed below are found on the Fisher Body plate located on the firewall. The models the particular trim code was available in is shown in italics. Links are provided to photos of interior colors that have been documented with body plate references. Atlanta, Flint, Framingham, and Kansas City would also include a -A or -B after the trim number to reflect bench or bucket seat where Baltimore and Fremont did not. In fact, the -A or -B was not necessary as the trim number itself was only applicable to a bench or bucket seat type. Baltimore and Fremont were both General Motors Assembly Division (GMAD) plants and other GM models were built there along side the Chevelle. Why Atlanta, Flint, Framingham, and Kansas City chose to include the -A or -B designator is unclear. In addition to -A and -B suffixes, -S has been found on several trim tags where optional headrests are found.

Imitation Leather was GM's sales name for vinyl. No real leather interiors were installed in Chevelles.
Where an imitation leather seat is two-tone or cloth/imitation leather seat is listed, the inset color is listed first.
It should also be noted that this was the last year the El Camino body style had it's own trim code number for the exact same trim that might be found in a Malibu or SS 396 series.
Production Quantities

It should be noted here this demo only has a few interior images and those can be identified by the red underline links. Images on the CD not included here are shown only in red print.

Bench Seat ~ (model availability)	Bucket Seat ~ (model availability)
704 ~ Medium Fawn Raeburn Cloth, Light Fawn Imitation Leather (13211-69)	711 ~ Medium Fawn, Light Fawn Imitation Leather (13680)
706 ~ Medium Fawn Rideau Cloth, Light Fawn Imitation Leather 706 ~ Close up (image 2) (13411-69)	712 ~ Medium Fawn, Light Fawn Imitation Leather (13617-67 ~ 13817-67)
707 ~ Light Fawn Pattern Imitation Leather (13435-80)	731 ~ Medium Bright Blue, Dark Bright Blue Imitation leather ⁽¹⁾ (13617-67 ~ 13817-67)
708 ~ Light Fawn Renville Cloth, Light Fawn Imitation Leather (13617-39-69)	749 ~ Medium Red Imitation Leather (13680)
709 ~ Medium Fawn, Light Fawn Imitation Leather * (13617-35-67 ~ 13817-67)	750 ~ Medium Red Imitation Leather (13617-67 ~ 13817-67)
710 ~ Medium Fawn, Light Fawn Imitation Leather (13680)	762 ~ Black Imitation Leather (13680)

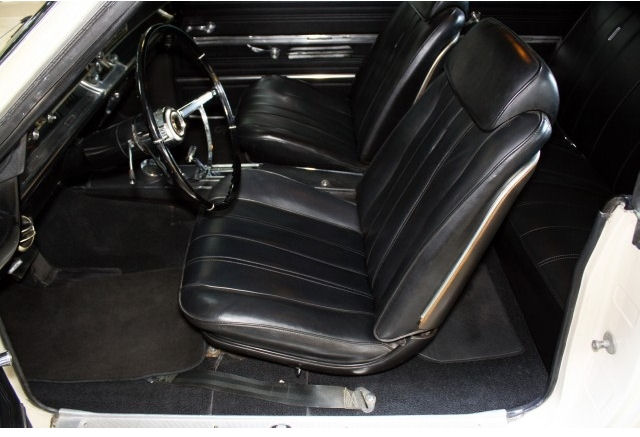

720 ~ Medium Fawn, Light Fawn Imitation Leather 13211-13269	763 ~ BLACK IMITATION LEATHER (13617-67 ~ 13817-67)
724 ~ Medium Blue Raeburn Cloth, Medium Blue Imitation Leather (13211-69)	777 ~ Dark Turquoise, Medium Turquoise Imitation Leather (13617-67 ~ 13817-67)

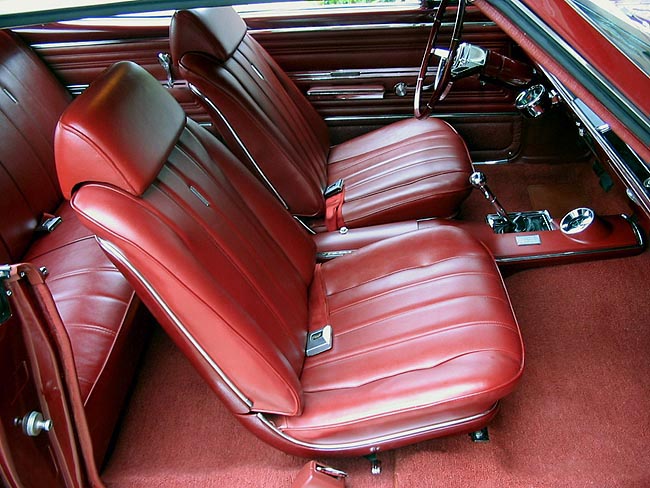

726 ~ Medium Blue Rideau Cloth, Medium Blue Imitation Leather (13411-69)	790 ~ MEDIUM BRONZE IMITATION LEATHER (13617-67 ~ 13817-67)

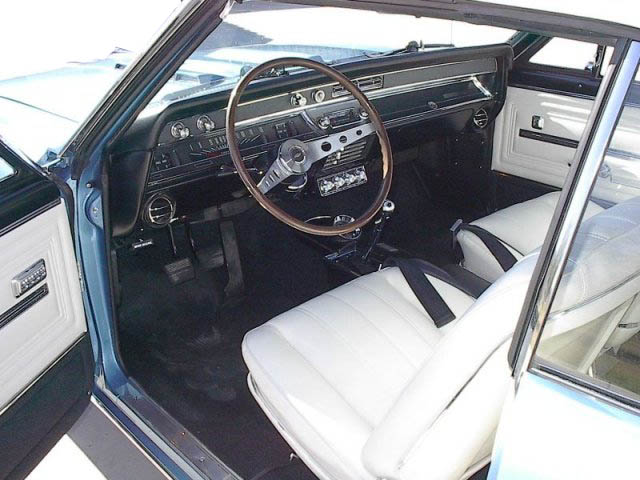

727 ~ Medium Blue Pattern Imitation Leather, Medium Blue Imitation Leather (13435-80)	797 ~ IVORY IMITATION LEATHER (with black trim) * (13617-13667 ~ 13817-67)
728 ~ Dark Blue Renville Cloth, Medium Blue Imitation Leather (13617-39-69)
729 ~ Dark Blue Imitation Leather, Medium Blue Imitation Leather ⁽¹⁾ (13635-67) (13817-67 also depicted in Chevrolet parts manual but this two-tone combination has not been seen in any SS 396 to date)
730 ~ Dark Blue Imitation Leather, Medium Blue Imitation Leather (13680)
732 ~ Medium Bright Blue Imitation Leather (13817-67)
742 ~ Medium Red Raeburn Cloth, Medium Red Imitation Leather (13211-69)
744 ~ Medium Red Rideau Cloth, Medium Red Imitation Leather (13411-69)
745 ~ Medium Red Imitation Leather (13435-80)
746 ~ Medium Red Renville Cloth, Medium Red Imitation Leather (13617-39-69)
747 ~ Medium Red Imitation Leather * (13617-35-67 ~ 13817-67)
748 ~ Medium Red Imitation Leather (13680)
760 ~ Black Imitation Leather ⁽²⁾ (13617-39)

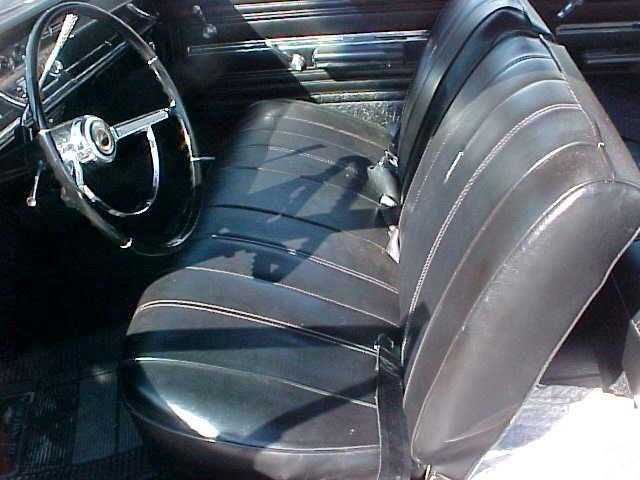

761 ~ BLACK IMITATION LEATHER (13617-39-67 ~ 13817-67)
775 ~ Dark Turquoise Renville Cloth, Medium Turquoise Imitation Leather (13617-39-69)
776 ~ Dark Turquoise, Medium Turquoise Imitation Leather - (13617-35-67 ~ 13817-67)
787 ~ Medium Bronze Imitation Leather * (13667 ~ 13817-67)

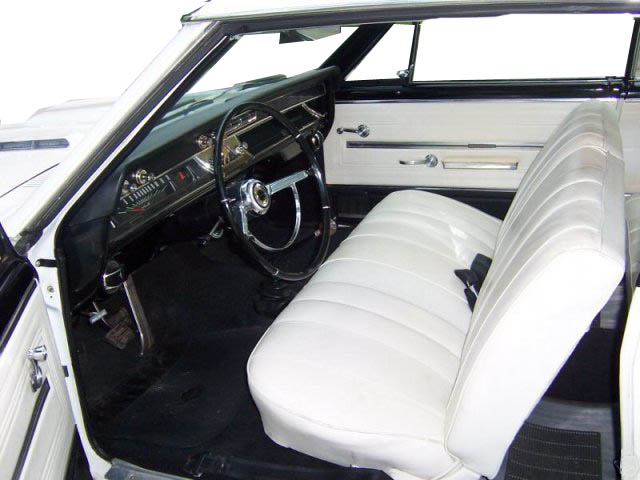

798 ~ IVORY IMITATION LEATHER (with black trim) (13817-67)

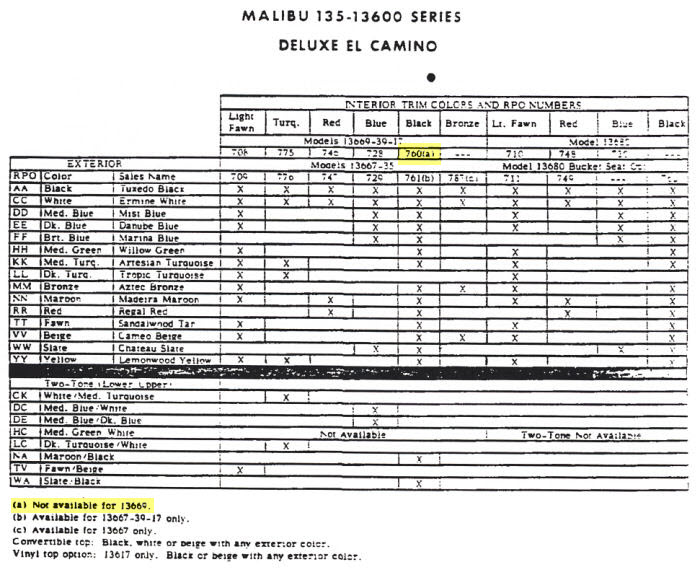

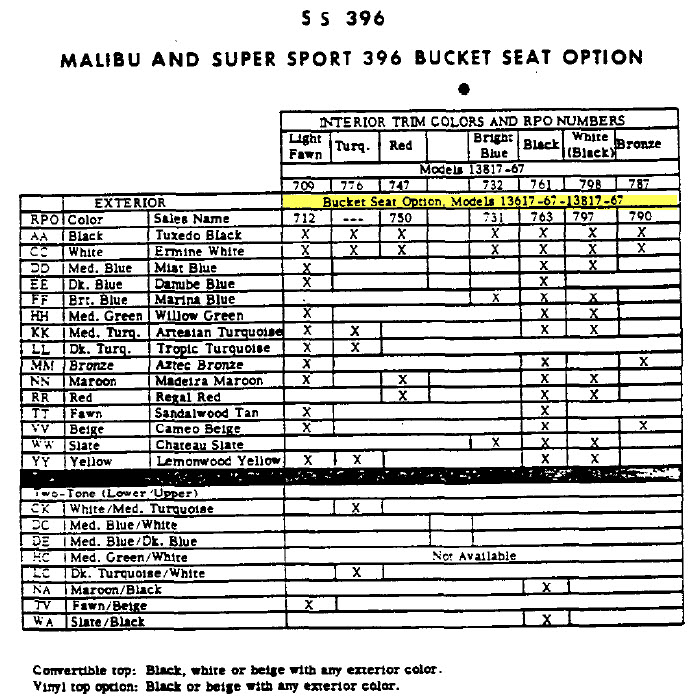

Source: Trim Combination Chart, Chevrolet P&A Catalog, August 1972 Revision 30A ⁽¹⁾ Note trim code 729 is shown available for both the Malibu wagon and convertible as well as the SS 396 sport coupe and convertible. To date, no SS 396 series has been found with this two-tone combination. Likewise the 731 trim code is shown available in both the Malibu and SS 396 sport coupes and convertibles. Also note description of "Medium Bright Blue" and "Dark Bright Blue" as opposed to simply "Dark Blue" and "Medium Blue" of the combination above. As with trim code 729, no SS 396 series has been found with this two-tone combination but has been found with the single Medium Bright Blue style. ⁽²⁾ Trim code 760 is listed in the Exterior-Interior Colors matrix but is not listed in Trim Combination Chart, Chevrolet P&A Catalog, August 1972 Revision 30A. Whether this code exists or not is questionable since it's listed for 13617 & 13639 (not available for 13669) and trim code 761 (also black bench seat) is listed for 13617, 13639, & 13669 only. In any event, no trim tag with the 760 code has been found to date. Trim codes found on trim tags that do not correspond to the GM docs above include 709, 747, 776, 787, 777, and 797. What is listed in the primary matrix are what has been found. Additional information concerning ordering interior trim and exterior colors. (Opens new window)
