1969 Camaro V8 Engine ID Codes
1967 Engine Codes |
1968 Engine Codes |
1969 Engine Codes |

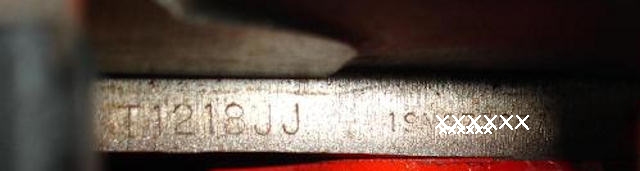

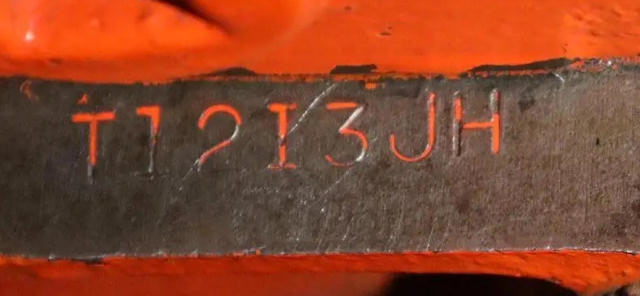

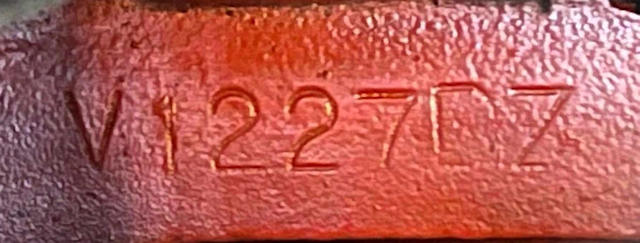

The engine identification code consists of the engine assembly plant, the engine assembly date, and a 2 or 3 letter suffix indicating the cubic inch displacement, the horsepower rating, and generally, what type of transmission was to be installed with the engine. Manual transmissions required a bushing in the rear of the bellhousing where an automatic transmission did not. Many engine "accessories" such as the carburetor, distributor, and exhaust manifolds were not installed at the engine assembly plant but rather at the final assembly plant.
During the 1969 model year, the 396-cubic inch engine was increased in size to 402 cubic inches by means of a .030 increase in cylinder bore size. It is believed this was done due to less restrictive emission standards on engines 400 cubic inches and larger. These new 402cid engines can be identified in 1969 by the three letter suffix code.
The 327-2bbl engine was initially the base V8 for Camaro in 1969. Around January of 1969 the 327-2 was replaced with the 307-2 as the base V8.
Engine |
Transmission |
Notes |
||
Code |
Size-Carb |
HP-RPO |
||
DZ | 302-4 | 290 | Manual-4 | Spec. High Perf., A.I.R. |
DA | 307-2 | 200 | Manual-3/4 | |
DC | 307-2 | 200 | Powerglide | |
DD | 307-2 | 200 | TH-350 | |
DE | 307-2 | 200 | Manual-4 | |
FJ | 327-2 | 210 | Manual-3/4 | |
FK | 327-2 | 210 | Powerglide | |
FL | 327-2 | 210 | TH-350 | |
FS | 327-2 | 210 | Manual-3/4 | Low Compression Engine |
FT | 327-2 | 210 | Powerglide | Low Compression Engine |
HA | 350-4 | 300-L48 | Manual-3/4 | |
HB | 350-4 | 300-L48 | TH-350 | |
HC | 350-2 | 250-L65 | Manual-3/4 | |
HD | 350-2 | 250-L65 | TH-350 | |
HE | 350-4 | 300-L48 | Powerglide | |
HF | 350-2 | 250-L65 | Powerglide | |
HP | 350-4 | 300-L48 | Manual-3/4 | Heavy Duty Clutch |
HQ | 350-2 | 255-LM1 | Manual-3/4 | |
HR | 350-2 | 255-LM1 | Powerglide | |
HS | 350-2 | 255-LM1 | TH-350 | |
JB | 396-4 | 325-L35 | Manual-3/4 | |
JF | 396-4 | 350-L34 | Manual-3/4 | |
JG | 396-4 | 325-L35 | TH-400 | |
JH | 396-4 | 375-L78 | Manual-3/4 | |
JI | 396-4 | 350-L34 | TH-400 | |
JJ | 396-4 | 375-L78 | Manual 4 | Aluminum Heads (RPO L89) |
JL | 396-4 | 375-L78 | TH-400 | |
JM | 396-4 | 375-L78 | TH-400 | Aluminum Heads (RPO L89) |
JU | 396-4 | 325-L35 | Manual-3/4 | Heavy Duty Clutch |
KA | 396-4 | 350-L34 | Manual-3/4 | Heavy Duty Clutch |
KC | 396-4 | 375-L78 | Manual-3/4 | Heavy Duty Clutch |
KE | 396-4 | 375-L78 | Manual-3/4 | Aluminum Heads (RPO L89) Heavy Duty Clutch |
KL | 396-4 | 375-L78 | Manual 4 | unverified |
MN | 427-4 | 425-L72 | 4-speed | COPO 9561 |
MO | 427-4 | 425-L72 | TH-400 | COPO 9561 |
ML | 427-4 | 430-ZL1 | 4-speed | COPO 9560 |
MM | 427-4 | 430-ZL1 | TH400 | COPO 9560 |
MV | 427-XX | No HP Rating | COPO 9567 | |
MX | 427-XX | No HP Rating | COPO 9567 |
According to accepted production numbers, these engine
sizes break down as follows:
350-4 cid V8 - 26,898 (RPO L65)
350-4 cid V8 - 22,339 (RPO L48)
396-4 cid V8 - 2,108 (RPO L34)
396-4 cid V8 - 6,752 (RPO L35)
396-4 cid V8 - 4,889 (RPO L78) (311 w/L89
aluminum head option)
