* These links go to the Engines Section and there are no links to return here, you must use the Electrical link on the main menu.

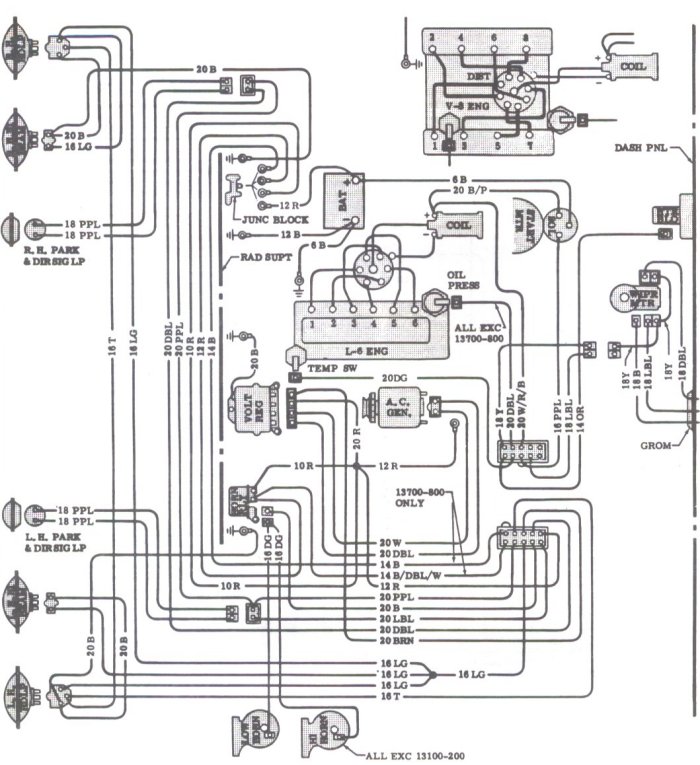

Engine Wiring Diagram
Wiring Circuit Color Code
| B | Black | P | Pink |
| B/LG | Black w/Light Green Stripe | PPL | Purple |
| B/LBL | Black w/Light Blue Stripe | PPL/W | Purple w/White Stripe |
| B/OR | Black w/Orange Stripe | OR | Orange |
| B/P | Black w/Pink Stripe | R | Red |
| B/W | Black w/White Stripe | T | Tan |
| B/Y | Black w/Yellow Stripe | T/W | Tan w/White Stripe |
| BRN | Brown | W | White |
| BRN/W | Brown w/White Stripe | W/OR/PPL | White w/Orange and Purple Stripes (resistance) |
| DBL | Dark Blue | W/R&B | White w/Red and Black Stripes (resistance) |
| DG | Dark Green | ||
| GY | Gray | ||
| LBL | Light Blue |

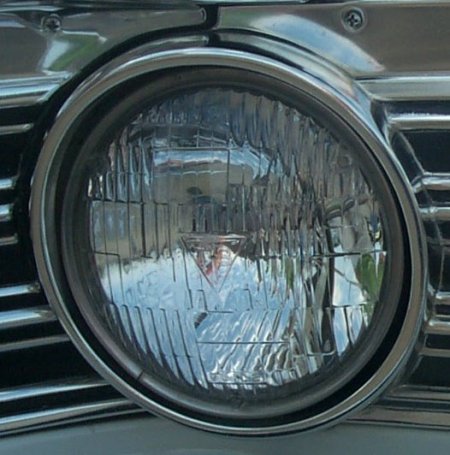

T3 headlamp. Headlamps up to 1968 were 'clear' in the center triangle.

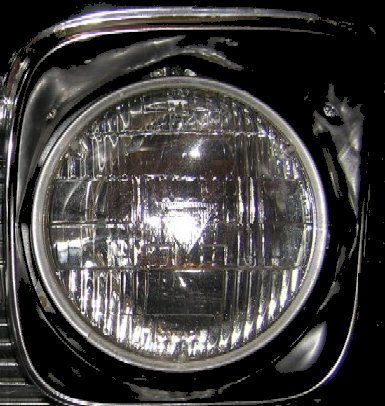

From 1968 on, the triangle contained vertical stripes as shown below.
