Generator - Group 2.275
The 1966 Chevelle came with one of 4 alternating current generators (commonly referred to as alternators since they produce alternating current) depending on the engine and extra cost options such as air conditioning. Part numbers shown below are original part numbers and this number would be stamped on the top of the unit.
Be aware that if you purchased a replacement generator from a Chevrolet dealer or other remanufacturer, these numbers may or may not appear on the unit. GM dealer replacement generators carried different part numbers in 1972 and may be different yet today. These generators also fit multiple years and multiple Chevrolet series. Finding the 'correct' case for one today can sometimes be a challenge.
Generator Month Date Codes
| A - January | E - May | J - September |
| B - February | F - June | K - October |
| C - March | G - July | L - November |
| D - April | H - August | M - December |
| standard (stamped "CB") | 1110693 | 37 |
| optional 42 amp (Std w/396-375 & transistor ignition) (RPO K79) | 1100696 | 42 |
| A/C and optional RPO K76 (stamped "CD") | 1100750 | 61 |

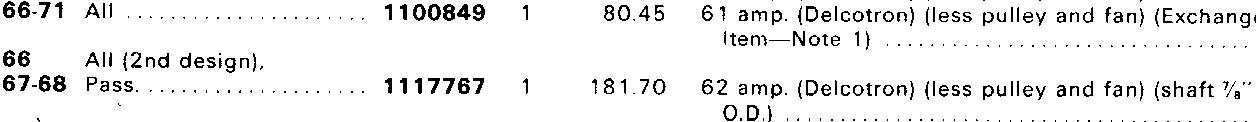

| optional RPO K81 | 1117765 | 62 |
| optional RPO K81 (2nd design, late) | 1117767 | 62 |
Date codes on generators are in the format of calendar year (not model year)/a letter for the month (excluding the letter "I")/day of the month.

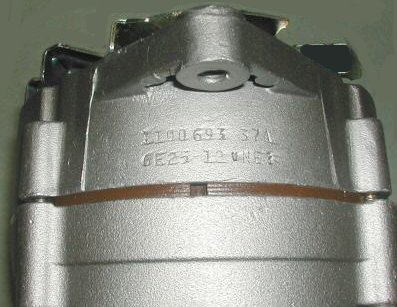

37A generator date coded 6E25 for 1966, May 25.

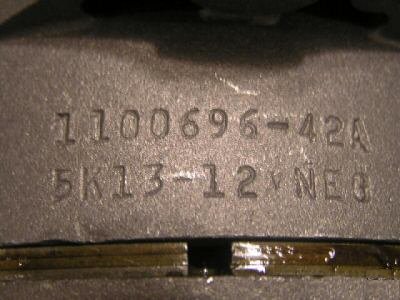

42A generator date coded 5K13 for 1965, October 13.
61A generator date coded 6F9 for 1966, June 9, 1966
w/CD broadcast code.
Generator Fan/Pulley

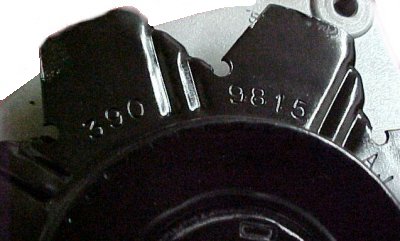

Single groove fan/pulley assembly #3909815 w/AJ broadcast
code.
Single groove fan/pulley assembly #3909817 w/AH broadcast
code.

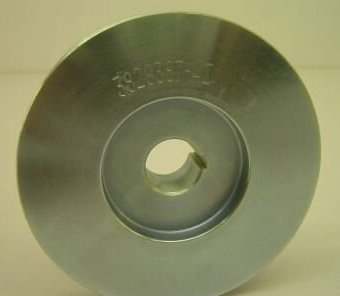

Single groove fan pulley for RPO L78 assembly #3829387 w/AI
broadcast code.

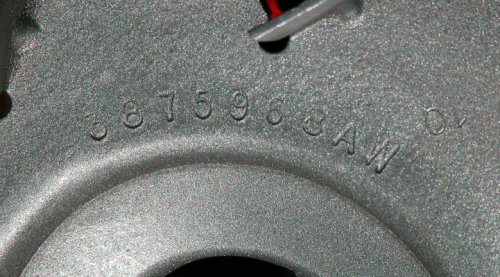

Late March, 1966 introduction of the 327/350HP L79 saw the generator
fan #3875968 w/AW broadcast code.

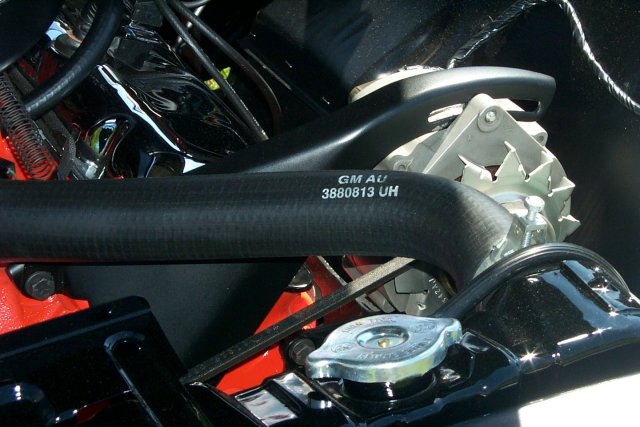

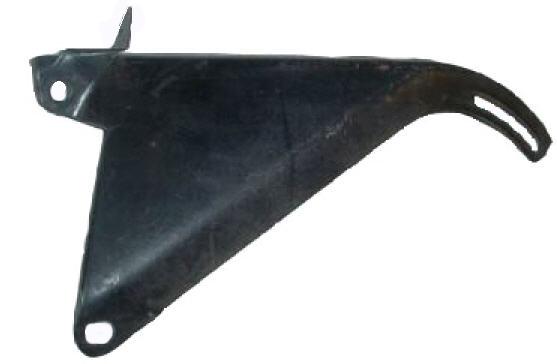

Top generator brace #3884506 for 396 engine. Note small bracket on top
engine mounting hole for throttle return spring. The 1967 396 engine
used a similar brace (#3884508) that did not incorporate this throttle
return spring bracket.

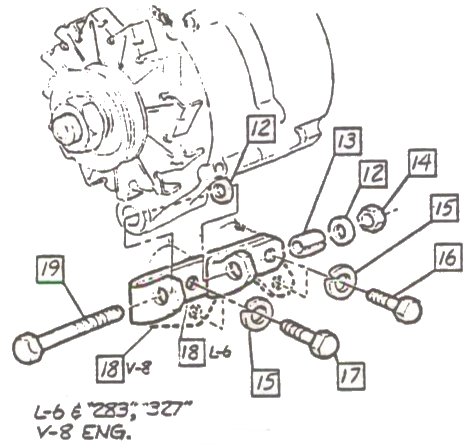

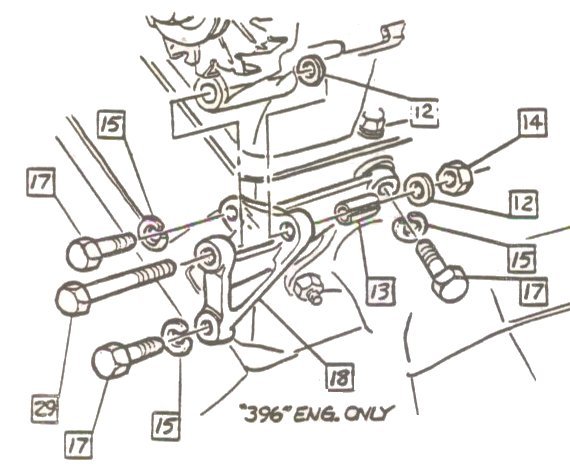

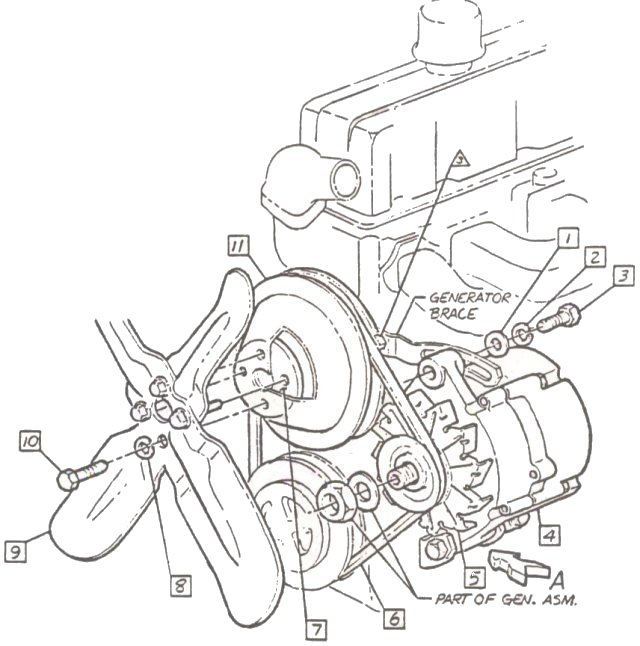

Generator Mounting, Fan, Belt & Pulleys - 13000
| 1. 3792420 P. Washer | 2. 138485 L. Washer | 3. 122017 Bolt (1) | 4. 1100396 Generator Asm. |
| 5. 3843342 Pulley Asm., Gen. | 6. 3845644 Belt-Fan | 7. 3720616 Reinforcement | 8. 187119 L. Washer |
| 9. 3839282 Blade Asm., Fan | 10. 444684 Bolt (2) | 11. 3841218 Pulley, L6 | |
|
(1) 100-140 lbs. in. (2) 20-27 lbs. ft. |
Lower bracket bolt was installed front to rear through bracket, spacer, 2 special washers, and nut. No lock washer is used on 396 engine.
| 12. 3825452 Spl. Washer | 13. 3825451 Spacer (exc. 396) | 14. 3816622 Nut (2) | 15. 103321 L. Washer |
| 16. 180124 Bolt (2) | 17. 180122 Bolt (2) | 18.
3838441 Bracket,
L-6 18. 3878256 Bracket, 283/327 |
19. 191163 Bolt |
|
(1) 100-140 lbs. in. (2) 20-27 lbs. ft. |

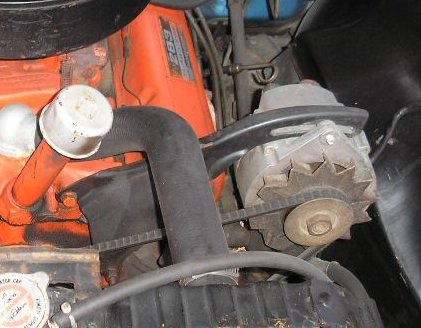

On all V8 engines, the top brace should go behind the generator and
the flat washer, lock washer, and retaining bolt are installed from
the back side.
Generator Mounting, Fan, Belt & Pulleys
| 1. 3792420 P. Washer | 2. 138485 L. Washer | 3. 122017 Bolt | 4. 1100396 Generator Asm. |
| 5. 3843342 Pulley Asm., Gen. | 7. 3720616 Reinforcement | 8. 187119 L. Washer | 9. 3839282 Blade Asm., Fan |
| 11. 3788472 Pulley, V8 | 15. 103321 L. Washer | 21.
3888104 Brace,
exc. 396 21. 3884506 Brace, 396 |
22. 3846589 Washer, 396 |
| 23.
3847708 Belt,
exc. 396 23. 3893254 Belt, 396 |
24.
3784349 Bolt,
exc. 396 24. 9418822 Bolt, 396 |
25.
454892 Bolt,
exc. 396 25. 545893 Bolt, 396 |
26.
3814241 Spacer,
exc. 396 26. 3876828 Spacer, 396 |
| 27.
9418967 Bolt,
exc. 396 27. 180121 Bolt, 396 |
29. 3792300 Bolt | 30.
3755820 Pulley,
exc. 396 30. 3874412 Pulley, 396 |
31. 9418931 Nut |
| 12. 3825452 Spl. Washer | 13. 3831946 Spacer, 396 | 14. 3816622 Nut | 15. 103321 L. Washer |
| 16. 180124 Bolt | 17. 180122 Bolt | 18. 3837264 Bracket, 396 | 29. 3792300 Bolt |

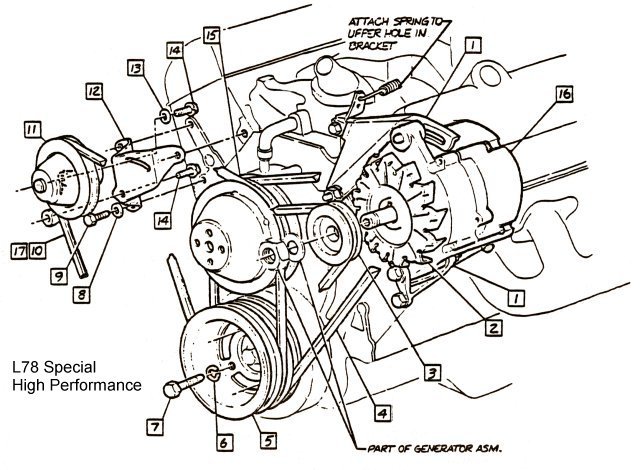

| 1. GENERATOR, BRACKET & BRACE, ATTACHING PARTS & GENERATOR MOUNTING SAME AS PRODUCTION 13817-67 | 2. 3843346 Fan, Generator | 3. 3844100 Pulley, Generator | 4. 3849739 Belt, Generator |
| 5. 3869978 Pulley, Crankshaft | 6. 103321 L. Washer | 7. 9418822 Bolt (1) | 8. 3693853 P. Washer |
| 9. 9419073 Bolt (2) | 10. 3848251 Belt, water pump | 11. 3765393 Pulley & Support Asm. | 12. 3878226 Bracket |
| 13. 120394 P. Washer | 14. 3748038 Screw Asm. (3) | 15. 3864480 Pulley Asm. - water pump, held in place by fan blade clutch assembly attaching parts. | 16. 1100696 Generator Asm. |
|
(1) 20-27 lbs. ft. (2) 20-30 lbs. ft. (3) 25-30 lbs. ft. |
