Introduction

Due to lack of sufficient quantities of build sheets from Arlington, Flint, and Van Nuys only Atlanta, Baltimore, & Kansas City are currently included in this effort. There is production information for Arlington, Flint, Van Nuys, and Oshawa but no specific build sheet information.

All U.S. 1970 assembly plants often used different wording for the same option. Additionally the unlabeled boxes were used for different purposes. Be sure to look at the correct plant for information. The information presented here ONLY applies to the 1970 model year, other years do differ. Be sure to pay attention to spacing, special characters (like *, =, #, etc.) and spelling in many cases. In particular the spelling of many RPO verbiage in box 107; they may differ greatly from plant to plant.

GM of Canada did not use the same paperwork on the assembly line as the U.S. so there are no "build sheets" as such found in a Canadian-built Chevelle. GM of Canada-built Chevelles are often found with what's commonly called a "Line Sequence Tag." This is further explained in the Oshawa, ON. section.

Data presented are applicable to SS396 and SS454 Chevelles only since documenting these cars is paramount to a buyer and seller. That's not to say that build sheets for non-SS Chevelles are any less important but there are just too many series, body styles, and options available to have information on all of them.

Some may fault this effort with the reasoning that it may be used by those producing fake build sheets in order to cheat and/or mislead a potential buyer with fake documentation. Others will applaud this effort so they can better defend themselves those unscrupulous individuals mentioned in the first sentence.

The intention of this material is to satisfy the latter of the two, the individual potentially buying a car and basing its heritage and value on such documentation as a build sheet. Hopefully, with the help of the information presented, you will be better equipped to combat potential fraud and save yourself some money. I will say that not EVERYTHING I know about build sheets are presented here, some information is just too volatile to release publicly. If you still have any questions on a build sheet, contact me though the Contact link at the bottom of each page.

This Demo

This demo CD has limited information but date contained here for Atlanta, Baltimore, and Kansas City is on the full version. For each plant only those sections with links in UPPERCASE letters followed by an asterisk ( * ) have data.

Example Build Sheets

Due to lack of sufficient quantities of build sheets from Arlington, Flint, and Van Nuys only Atlanta, Baltimore, & Kansas City are currently included in this effort and only SS396 and SS454 optioned Chevelles. There is production information for Arlington, Flint, Van Nuys, and Oshawa but no specific build sheet information in those sections. If you have questions, please use the Contact link at the bottom of each page and send along your questions

Let me begin by saying that all U.S. 1970 assembly plants used different wording for many options and different codes for various boxes. Be sure to look at the correct plant for information. The information presented here ONLY applies to the 1970 model year, other years do differ. Be sure to pay attention to spacing, special characters (like *, =, #, etc.) and spelling in many cases. In particular the spelling of many RPO verbiage in box 107; they may differ greatly from plant to plant.

1970 Chevelle Build Sheet
1970 Chevelle Build Sheet
Sometime around the middle of February 1970, GM changed the format of their build sheets. Naturally the plants used current stock until they ran out before switching over so dates will vary between the plants. Note the top example has one large box number 2 where the lower example has this box split into 2 boxes (#2 and #3) so to make it easier, the explanations below will be split into "Early" and "Late" with "Early" being the top example and "Late" being the lower example. The remainder of the build sheet remains the same format.

Select a Section Number to decode items in that section.

A sample build sheet is shown for each plant to get you started. This may be an early or late sheet but since only the first line differs in format, the remainder will stay the same. The sequence number has been blacked-out in all instances to protect any owner of the sheet.

GM of Canada did not use the same paperwork on the assembly line as the U.S. so there are no "build sheets" as such found in a Canadian-built Chevelle. GM of Canada-built Chevelles are often found with what's commonly called a "Line Sequence Tag." This is further explained in the Oshawa, ON. section.

Data presented are applicable to SS396 and SS454 Chevelles only since documenting these cars is paramount to a buyer and seller. That's not to say that build sheets for non-SS Chevelles are any less important but there are just too many series, body styles, and options available to have information on all of them.

Some may fault this effort with the reasoning that it may be used by those producing fake build sheets in order to cheat and/or mislead a potential buyer with fake documentation. Others will applaud this effort so they can better defend themselves against those unscrupulous individuals mentioned in the first sentence.

The intention of this material is to satisfy the latter of the two, the individual potentially buying a car and basing its heritage and value on such documentation as a build sheet. Hopefully, with the help of the information presented, you will be better equipped to combat potential fraud and save yourself some money. I will say that not EVERYTHING I know about build sheets are presented here, some information is just too volatile to release publicly. If you still have any questions on a build sheet, contact me though the Contact link at the bottom of each page.

1970 Chevelle Build Sheet

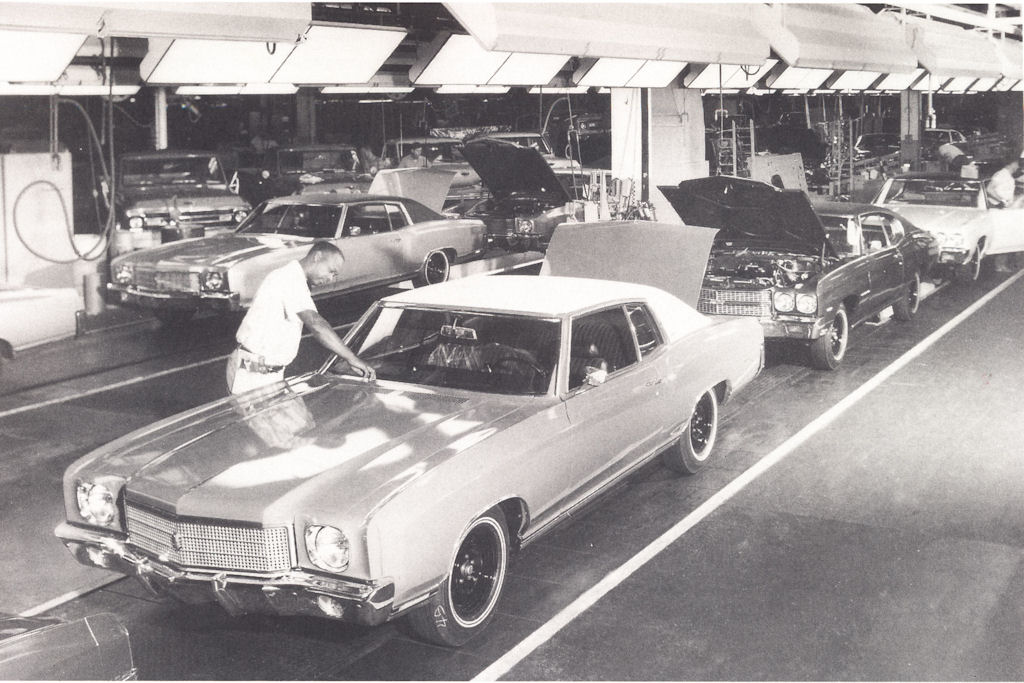

Many do not consider the Monte Carlo to be a Chevelle. Consider though the Monte Carlo carries the same 13xxx designation as the Chevelle, the Monte Carlo was built along side the Chevelle (where Monte Carlos were built), and were sequenced in line with Chevelles. The above assembly line shows a Monte Carlo immediately followed by two Chevelles. For purposes of this CD, and since the Z20 Monte Carlo SS was only available in 1970 and 1971, Monte Carlo SS information is not included.

1970 Chevelle Build Sheet

Need additional reference material?  The Detroit Iron Information Systems CD has manuals on the following:
1970 Chevrolet Chassis Service, 1970 Chevrolet Overhaul Service, 1970 Fisher Body Service, and 1964-72 parts book. Check it out here!
