Baltimore, Maryland

Introduction

The Baltimore, Maryland assembly plant reportedly assembled 117,497 Chevelles in 1970. This accounted for 17.80% of all 1970 Chevelles reportedly assembled in the U.S. and Canada. Convertibles and El Caminos were assembled at Baltimore.

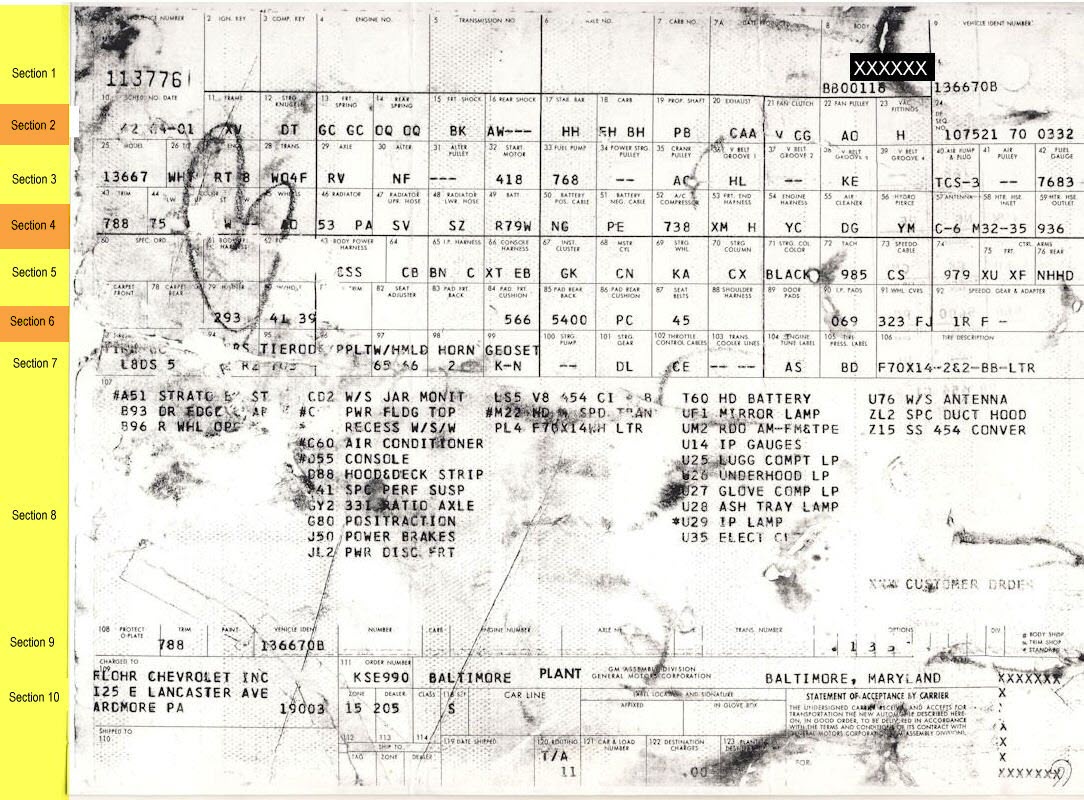

Select a Section Number to decode items in that section. Note: Only sections in orange are active on this demo.

1970 Baltimore Trivia/Notes

>> Sometime after 03-03 and beginning at least 03-06 the WHL CVRS code (box 91) changed from 770 FJ to 323 FJ.
>> Sometime after 05-04 and beginning at least 05-07 RPO U46 LAMP MONITOR moved from column 4 to column 5.
>> Sometime after 10-01 and beginning at least 10-08 RPO U63 AM P/B RADIO and U76 W/S ANTENNA moved from column 4 to column 5.
>> Sometime after 10-01 and beginning at least 10-23 *C56 I/P SIDE VENT was not coded on non-A/C cars.

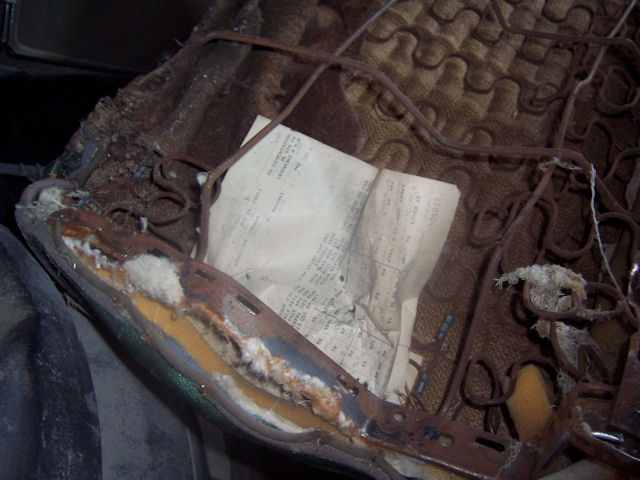

Where Baltimore Build Sheets Are Typically Found

Baltimore is noted for having build sheets left in the seats, often hog ringed in place.
