Emblems, Trim, and Super Sport Nameplate Locations

Of the five engine sizes offered, three were noted by size designations above or included in the emblem on the front fender, the 230 cid L6 Turbo-Thrift, the 327 cid V8 Turbo-Fire, and the 396 cid V8 Turbo-Jet. Only the base 194 cid L6 Turbo-Thrift and base 283 V8 did not have an engine size designation.

The 283 cid V8 and the 327 cid V8 shared the same 'crossed flags' emblem but the 327 engine included the "327" numerals centered above the flags. All 396 cid V8 engines (325hp, 360hp, and 375hp) received the same front fender emblem.

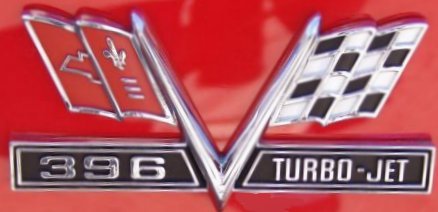

396 cid Turbo-Jet fender emblem Group 8.147-#3871057 ~ Replacement #3867312 According to sources there are at least five versions of this emblem for Chevelles: 1 - 1965 factory installed - The flag is blood red. The outer groove around the lower bars ("396" and "Turbo-Jet") was painted black. The studs are just a tick under 3/4" long. 2 - 1966 - early 1967 factory installed - The flag is blood red. The outer groove around the lower bars ("396" and "Turbo-Jet") was NOT painted black, but was bare chrome. The studs are just a tick under 3/4" long. 3 - Mid 1967 (exact changeover date unknown) factory installed - The flag is orange. The outer groove around the lower bars ("396" and "Turbo-Jet") was NOT painted black, but was bare chrome. The studs are just a tick under 3/4" long. 4 - Late 1967 (exact changeover date unknown) factory installed, and service replacements for a couple years afterwards - The flag is orange. The outer groove around the lower bars ("396" and "Turbo-Jet") was NOT painted black, but was bare chrome. The studs are just a tick under 1/2" long. 5 - Later service replacements - The flag is a sort of translucent or transparent red. The outer groove around the lower bars ("396" and "Turbo-Jet") was NOT painted black, but was bare chrome. The studs are just a tick under 1/2" long. 6 - Most aftermarket third-party vendors sell the 1965 version based on the original graphics design for part.

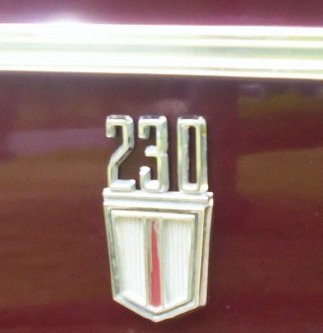

230 cid L6 fender emblem Group 8.147-#3864242 ~ Replacement #3865890

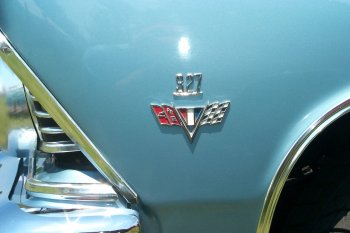

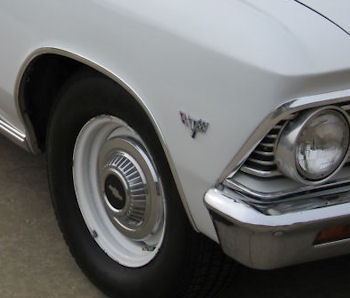

283 cid V8 fender emblem on a Malibu sport coupe Group 8.147 ~ #3840318 (same emblem was used in 1967)	327 cid V8 emblem numerals on a Malibu sport coupe Group 8.147 ~ #3865834 (same emblem was used in 1967)

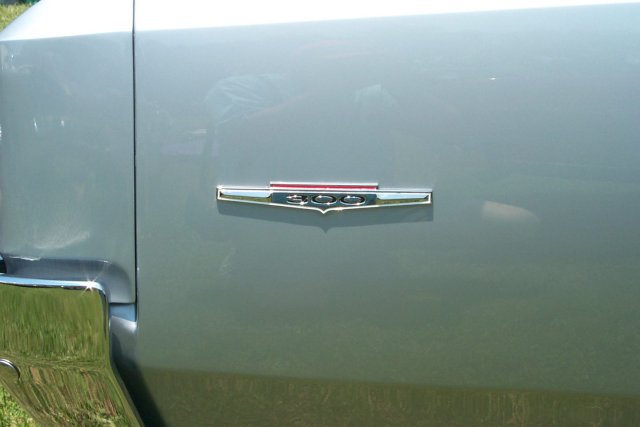

Quarter panel 300 series emblem
Quarter panel "300" series emblem
Group 12.116 ~ #4226980 (same emblem was used in 1967)

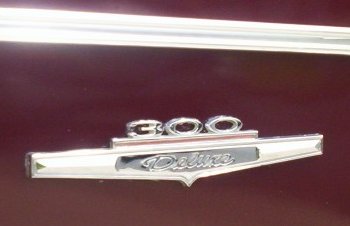

Quarter panel 300 Deluxe series emblem
Quarter panel "300 Deluxe" series emblem
Group 12.116 ~ #4226979 (same emblem was used in 1967)

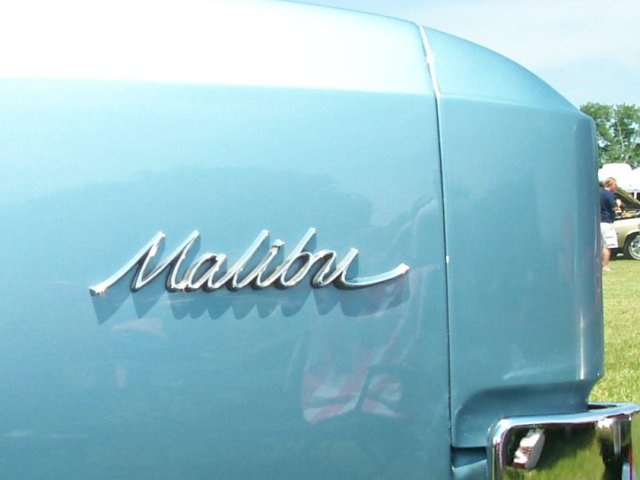

Quarter panel Malibu series emblem
Quarter panel "Malibu" series emblem
Group 12.118 ` #4229716 (same emblem was used in 1967)

Quarter panel Malibu SS emblem
Quarter panel "Malibu SS" emblem; Canadian-built Malibu SS Chevelles only
Group 12.116 ~ #3871637 (same emblem used on all 1965 Malibu SS Chevelles as well as 1966 & 1967 Canadian-built Malibu SS)

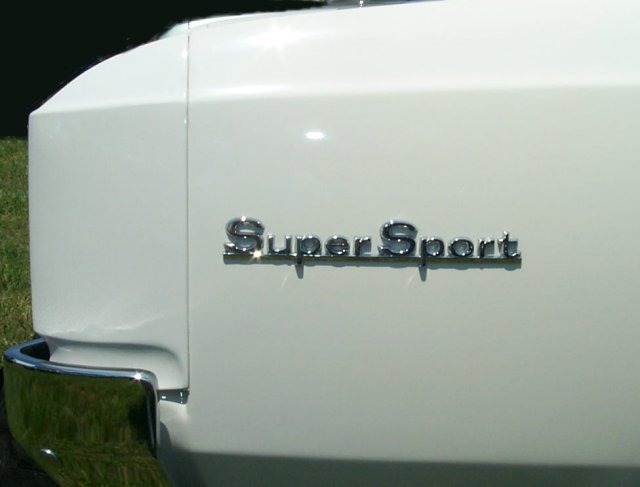

Quarter panel Super Sport emblem
Quarter panel "Super Sport" emblem
Group 12.118 ~ #4227377
