Body Broadcast Sheet
The Body Broadcast Sheet is one of numerous pieces of paperwork that accompanied a particular vehicle during the assembly process. It outlines the multitude of parts to be added during assembly and multiple copies of each document were usually supplied at the beginning of the assembly process. Normally all paperwork such as this would have been tossed into the trash when it no longer served its purpose along the assembly line but many times workers simply discarded the papers in various locations in the car and usually somewhere in the interior. Body Broadcast Copy sheets, along with Chassis Broadcast Copy sheets and other paperwork, have been found under a seat, behind the rear seat, in door panels, under carpets, on top of gas tanks, in the headliner...whatever the last worker using the sheet was working on at the time. It is a rare treat today to find one still in a car and goes a long way in identifying and documenting the vehicle.

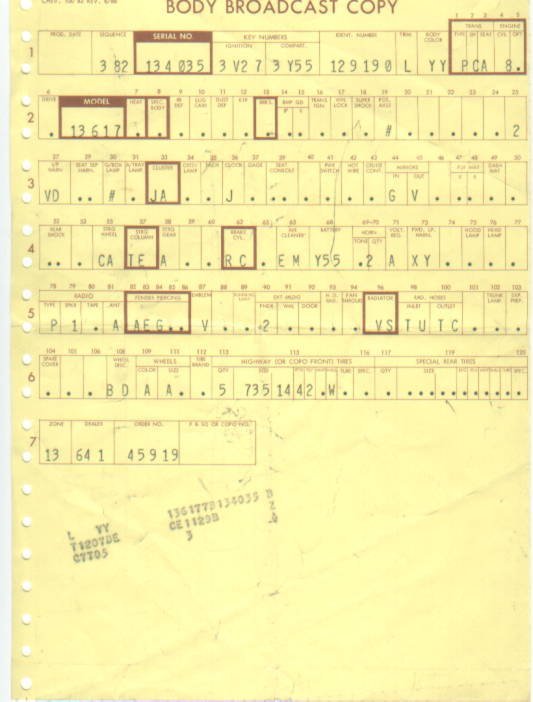

Baltimore, MD.
| Line 1: | |
| Sequence Number; | |
| Serial No: Last six digits of the VIN | |
| Key Numbers: Ignition - 3 V2 7 Compart - 3 Y5 5 | |
| Ident Number: Assembly identification number | |
| Trim: L - optional black vinyl | |
| Color: YY - Butternut Yellow | |
| Trans: Type (1): P - Powerglide SH (2): C - column shift Seat (3) A - bench seat Cyl (4): 8 cylinders Opt (5): . (standard V8) |
|
| Line 2: | |
| Model: 13617 - Malibu Sports Coupe | |
| Box 19: # - Positraction rear axle | |
| Box 25: 2 unknown | |
| Line 3: | |
| Box 27: VD - instrument panel wiring harness | |
| Box 29: seat compartment harness (n/a) | |
| Box 30: # - glove box lamp | |
| Box 31: ash tray lamp (n/a) | |
| Box 33: JA - standard instrument cluster with Powerglide column shift | |
| Box 34: courtesy lamp (n/a) | |
| Box 35: tachometer (n/a) | |
| Box 36: J - standard clock installed in gauge cluster, not console | |
| Box 44: G - standard inside mirror | |
| Box 45: V - standard outside driver's side mirror | |
| Line 4: | |
| Box 56: CA - steering wheel | |
| Box 57: TE - steering column (column shift, Powerglide) | |
| Box 58: A - manual steering | |
| Box 62: RC - manual brakes | |
| Box 65: EM - air cleaner | |
| Box 68: Y55 - AC Delco battery type | |
| Box 70: 2 - horns (hi and low) | |
| Box 71: A - standard voltage regulator | |
| Box 73: XY - forward lamp harness | |
| Line 5: | |
| Box 78: P - Push button AM radio | |
| Box 79: 1 - front speakers only | |
| Box 81: A - front mount antenna | |
| Box 82-86: AEG - fender piercing | |
| Box 96: VS - radiator for automatic transmission | |
| Box 98: TU - upper radiator hose | |
| Box 100: TC - lower radiator hose | |
| Line 6: | |
| Box 108: BD - wheel covers | |
| Box 110: A - wheel color, black | |
| Box 111: A - standard size, 14x5 | |
| Box 113: tires - Qty of 5, 735x14, 4-ply rating, 2-ply tire, whitewall | |
| Line 7: | |
| Zone: Dealer location zone, also appears on window sticker | |
| Dealer: Dealer identification number. | |
| Order No: Dealer order number, also appears on the window sticker | |

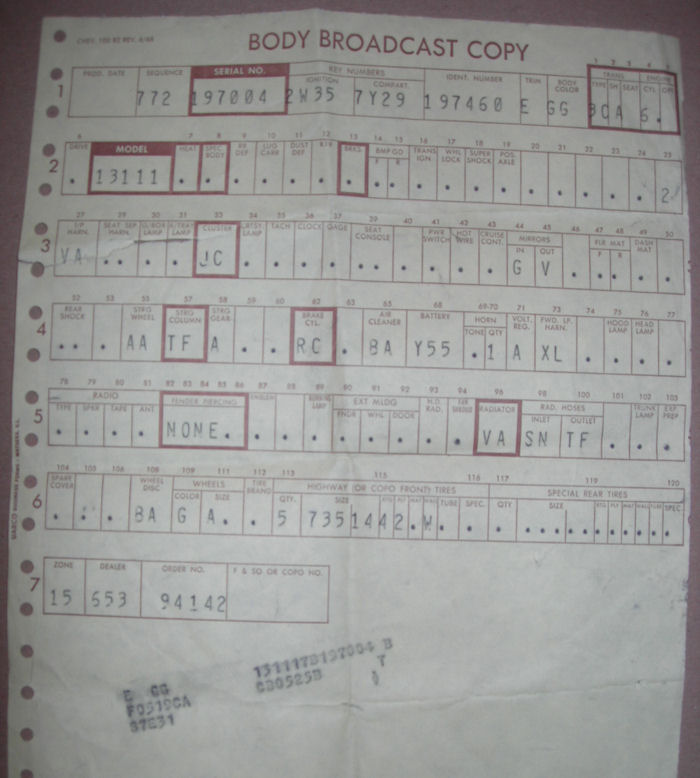

Baltimore, MD.
| Line 1: | |
| Sequence Number; | |
| Serial No: Last six digits of the VIN | |
| Key Numbers: Ignition - 2W35 Compart - 7Y29 | |
| Ident Number: Assembly identification number | |
| Trim: E - optional black | |
| Color: GG - Grenada Gold | |
| Trans: Type (1): 3 - 3-speed
manual SH (2): C - column shift Seat (3) A - bench seat Cyl (4): 6cylinders Opt (5): . (standard L6) |
|
| Line 2: | |
| Model: 13111 - Chevelle 300 2-door sedan | |
| Box 25:2 unknown | |
| Line 3: | |
| Box 27: VA - instrument panel wiring harness | |
| Box 33: JC - standard instrument cluster with 3-speed column shift | |
| Box 44: G - standard inside mirror | |
| Box 45: V - standard outside driver's side mirror | |
| Line 4: | |
| Box 56: AA - steering wheel | |
| Box 57: TF - steering column (column shift, manual) | |
| Box 58: A - manual steering | |
| Box 62: RC - manual brakes | |
| Box 65: BA - air cleaner | |
| Box 68: Y55 - AC Delco battery type | |
| Box 70: 1 - horn tone | |
| Box 71: A - standard voltage regulator | |
| Box 73: XL - forward lamp harness | |
| Line 5: | |
| Box 82-86: NONE - fender piercing | |
| Box 96: VA - radiator for 6-cyl manual transmission | |
| Box 98: SN - upper radiator hose | |
| Box 100: TF - lower radiator hose | |
| Line 6: | |
| Box 108: BA - wheel covers | |
| Box 110: G - wheel color, gold | |
| Box 111: A - standard size, 14x5 | |
| Box 113: tires - Qty of 5, 735x14, 4-ply rating, 2-ply tire, whitewall | |
| Line 7: | |
| Zone: Dealer location zone, also appears on window sticker | |
| Dealer: Dealer identification number. | |
| Order No: Dealer order number, also appears on the window sticker | |

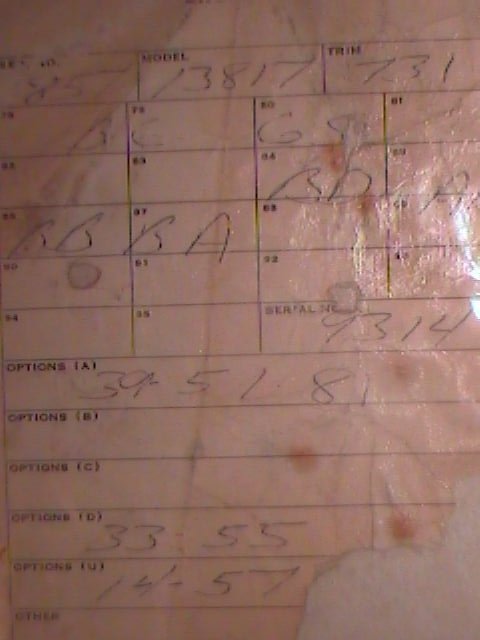

Fremont, CA.
Limited knowledge of Fremont sheets.
Model 13817 - SS 396 Sport Coupe
Trim 731 - Medium Bright Blue Imitation Leather
Serial Number - 9314 (last 4 digits of sequence number)
Options (A) - 39 (Deluxe seat belts w/rr), 51 (Strato-Bucket seats),
81 (Headrests)
Options (D) - 33 (remote control outside rear mirror), 55 (front compartment
console)
Options (U) - 14 (special instrumentation), 57 (stereo tape)

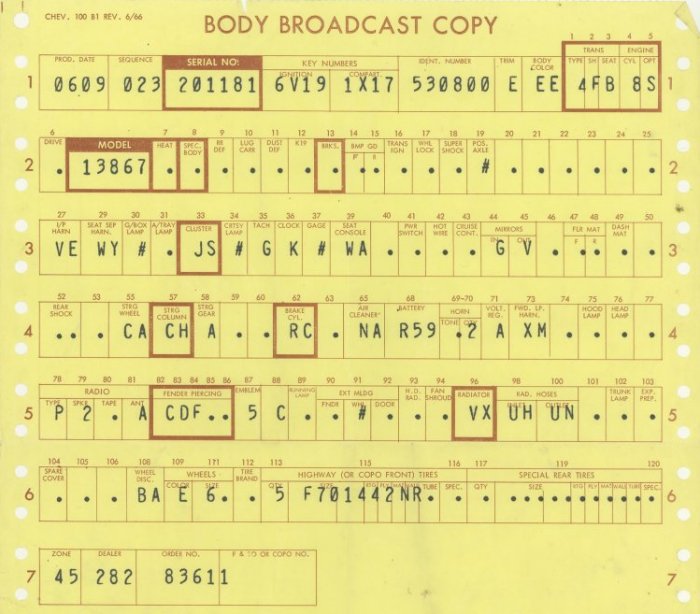

Kansas City, MO.
| Line 1: | |
| Prod. Date: 0609 (June 9) | |
| Sequence Number: 023 | |
| Serial No: Last six digits of the VIN | |
| Key Numbers: Ignition - 6v19 Compart - 1X17 | |
| Ident Number: Assembly identification number | |
| Trim: E - black vinyl | |
| Color: EE - Deepwater Blue | |
| Trans: Type (4): M - Muncie SH (2): F - Floor shift Seat (3) B - bucket seat Cyl (4): 8 cylinders Opt (5): S (350hp V8) |
|
| Line 2: | |
| Model: 13867 - SS 396 Convertible | |
| Box 19: # - Positraction rear axle | |
| Line 3: | |
| Box 27: VE - instrument panel wiring harness | |
| Box 29: WY - seat compartment harness | |
| Box 30: # - glove box lamp | |
| Box 31: ash tray lamp (n/a) | |
| Box 33: JS - standard instrument cluster with floor shift | |
| Box 34: # courtesy lamp | |
| Box 35: G tachometer (5500 red line) | |
| Box 36: K - standard clock installed in console | |
| Box 37: # - Special Instrumentation gauge package | |
| Box 39: WA - center console | |
| Box 44: G - standard inside mirror | |
| Box 45: V - standard outside driver's side mirror | |
| Line 4: | |
| Box 56: CA - steering wheel | |
| Box 57: CH - steering column (floor shift) | |
| Box 58: A - manual steering | |
| Box 62: RC - manual brakes | |
| Box 65: NA - air cleaner | |
| Box 68: R59 - AC Delco battery type | |
| Box 70: 2 - horns (hi and low) | |
| Box 71: A - standard voltage regulator | |
| Box 73: XM - forward lamp harness | |
| Line 5: | |
| Box 78: P - Push button AM radio | |
| Box 79: 2 - rear speakers | |
| Box 81: A - front mount antenna | |
| Box 82-86: CDF - fender piercing | |
| Box 87: 5 (unknown) | |
| Box 88: C (unknown) | |
| Box 91: # wheel house moldings | |
| Box 96: VX - H.D. radiator for manual transmission | |
| Box 98: UH - upper radiator hose | |
| Box 100: UN - lower radiator hose | |
| Line 6: | |
| Box 108: BA - wheel covers | |
| Box 110: E - wheel color, Deepwater Blue | |
| Box 111: 6. - 14x6 | |
| Box 113: tires - Qty of 5, F70x14, 4-ply rating, 2-ply tire, nylon, red line | |
| Line 7: | |
| Zone: Dealer location zone, also appears on window sticker | |
| Dealer: Dealer identification number. | |
| Order No: Dealer order number, also appears on the window sticker | |

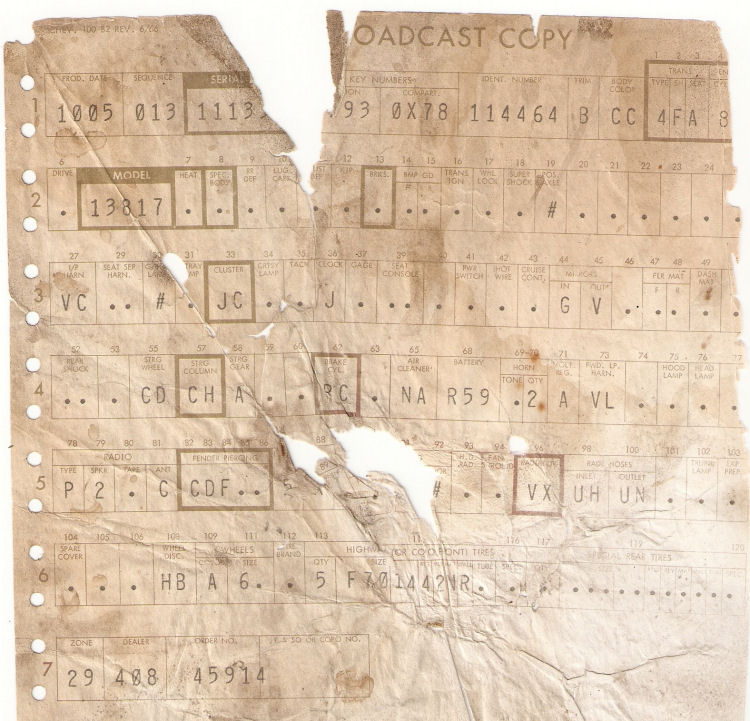

Kansas City, MO.
| Line 1: | |
| Prod. Date: 1005 (October 5) | |
| Sequence Number: 013 | |
| Serial No: Last six digits of the VIN | |
| Key Numbers: Ignition - ??93 Compart - 0X78 | |
| Ident Number: Assembly identification number | |
| Trim: B - Blue | |
| Color: CC - Ermine White | |
| Trans: Type (4): M - Muncie SH (2): F - Floor shift Seat (3) A - bench seat Cyl (4): 8 cylinders Opt (5): S (350hp V8) |
|
| Line 2: | |
| Model: 13817 - SS 396 Sport Coupe | |
| Box 19: # - Positraction rear axle | |
| Line 3: | |
| Box 27: VC - instrument panel wiring harness | |
| Box 29: .. n/a | |
| Box 30: # - glove box lamp | |
| Box 31: ash tray lamp (n/a) | |
| Box 33: JC - instrument cluster with clock and floor shift | |
| Box 34: . n/a | |
| Box 35: . n/a | |
| Box 36: J - standard clock installed in dash | |
| Box 37: . n/a | |
| Box 39: . n/a | |
| Box 44: G - standard inside mirror | |
| Box 45: V - standard outside driver's side mirror | |
| Line 4: | |
| Box 56: CD - steering wheel | |
| Box 57: CH - steering column (floor shift) | |
| Box 58: A - manual steering | |
| Box 62: RC - manual brakes | |
| Box 65: NA - air cleaner | |
| Box 68: R59 - AC Delco battery type | |
| Box 70: 2 - horns (hi and low) | |
| Box 71: A - standard voltage regulator | |
| Box 73: VL - forward lamp harness | |
| Line 5: | |
| Box 78: P - Push button AM radio | |
| Box 79: 2 - rear speakers | |
| Box 81: C - rear mount antenna | |
| Box 82-86: CDF - fender piercing | |
| Box 87: 5 (unknown) | |
| Box 88: C (unknown) | |
| Box 91: # wheel house moldings | |
| Box 96: VX - H.D. radiator for manual transmission | |
| Box 98: UH - upper radiator hose | |
| Box 100: UN - lower radiator hose | |
| Line 6: | |
| Box 108: HB - wheel covers | |
| Box 110: A - wheel color, Black | |
| Box 111: 6. - 14x6 | |
| Box 113: tires - Qty of 5, F70x14, 4-ply rating, 2-ply tire, nylon, red line | |
| Line 7: | |
| Zone: Dealer location zone, also appears on window sticker | |
| Dealer: Dealer identification number. | |
| Order No: Dealer order number, also appears on the window sticker | |
