Emblems, Trim & Super Sport Nameplate Locations

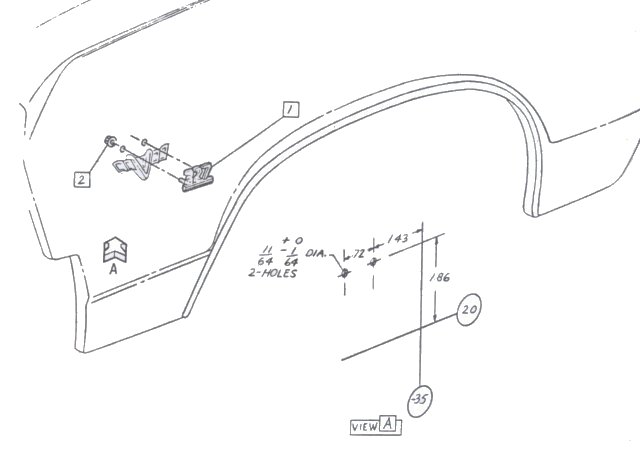

RPO L22 250 cid L6 Turbo-Thrift

1. 9419761 Nut Asm.(1)	2. 3899877 Emblem
(1) 10-15 lbs. in.

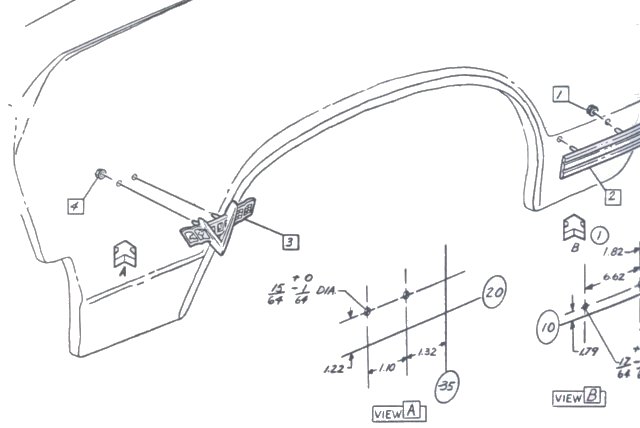

283 cid V8 Turbo-Fire

1. 9419841 Nut Asm.(1)	2. 3895115-6 Molding L. & R. H. 13500-600	3. 3840318 Emblem 13200-400-600-839	4. 9419756 Nut(2)
(1) 20-30 lbs. in. (2) 10-15 lbs. in.

V8 Engine 327-Emblem

1. 3863853 Emblem	2. 9419751 Nut(1)
(1) 10-15 lbs. in.

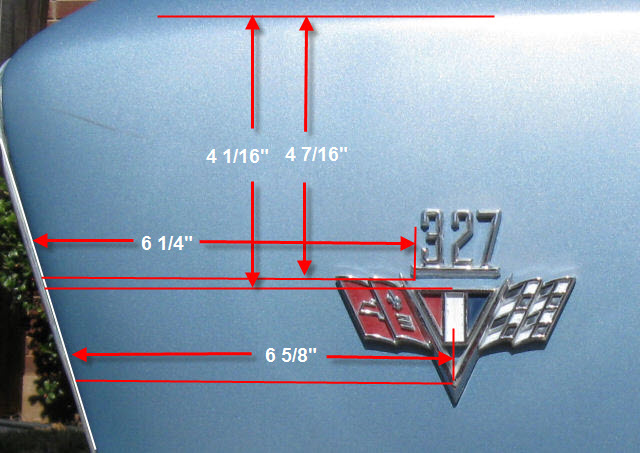

These are measurement taken from my 1967 El Camino. Note these are not measurements to the mounting holes themselves but rather to specific points on the emblems.

* The front reference line is horizontal to the edge of the sheet metal on the fender and not the grille extension.
* The top reference line is the upper belt crease and not the top of the fender.

1. 4 1/16" - top of crease to bottom of bar on '327' emblem
2. 4 7/16" - top of crease to top center flat bar on flag
3. 6 1/4" - forward edge of '327' bar horizontally to the fender front edge
4. 6 5/8" - centerline of white rectangle on flag horizontally to the fender front edge

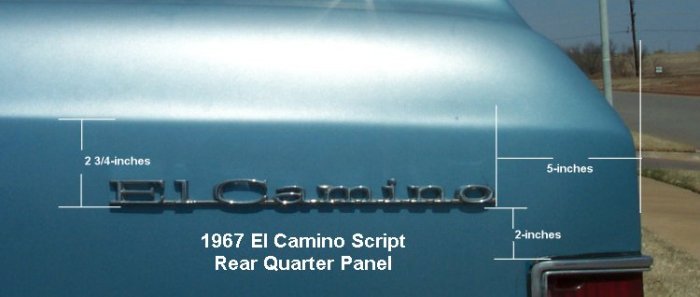

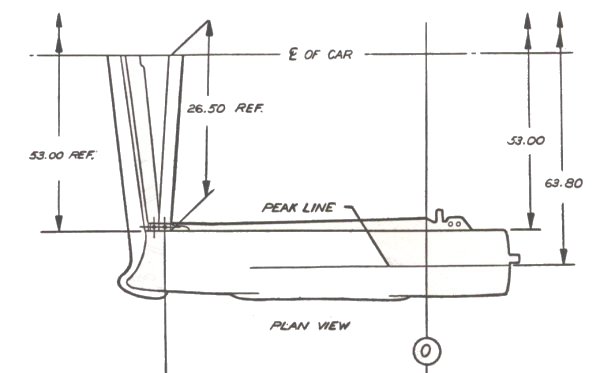

El Camino script placement on the El Camino.

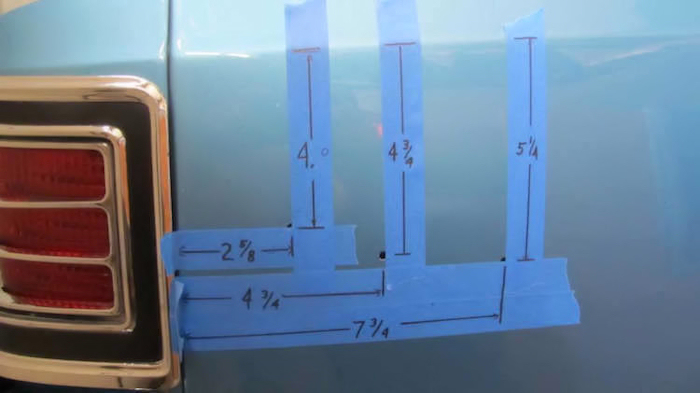

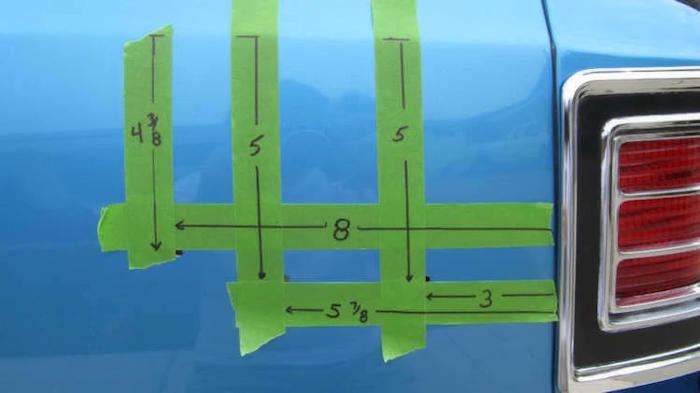

Malibu script placement on quarter panels.

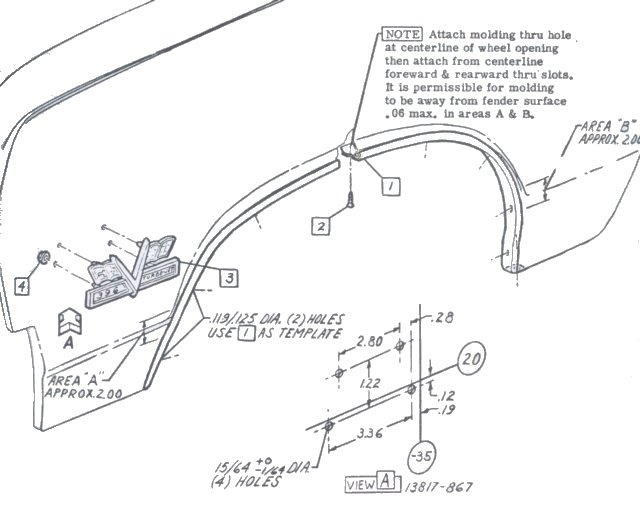

Fender Emblem - Turbo-Jet 396

1. 3893991-2 Molding L. & R. H.	2. 588546 Screw(1)	3. 3871057 Emblem	4. 9419756 Nut(1)
(1) 10-15 lbs. in.

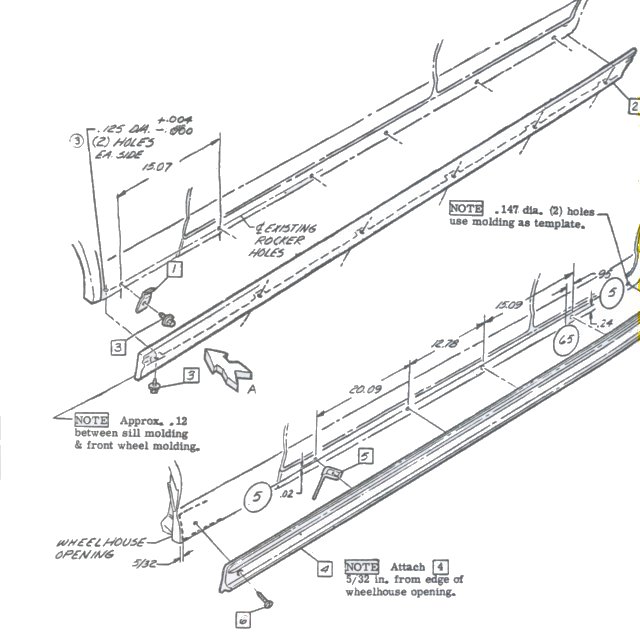

1. 3886638 Retainer	2. 3893965-6 Molding 13700-800	3. 9425111 Screw(1)	4. 3893993-4 Molding L. & R. H. 13300-400
5. 3893995 Clip	6. 3839438 Screw(1)
(1) 10-15 lbs. in.
