396/325hp RPO L35 Engine

Photos presented are not to show what is correct or what is incorrect. Rather, these are offered for viewing pleasure and if you can pick up a tip or two, all the better.

396/325hp w/K19 Air Injection Reactor system and/or K24 Closed Engine Positive Ventilation System

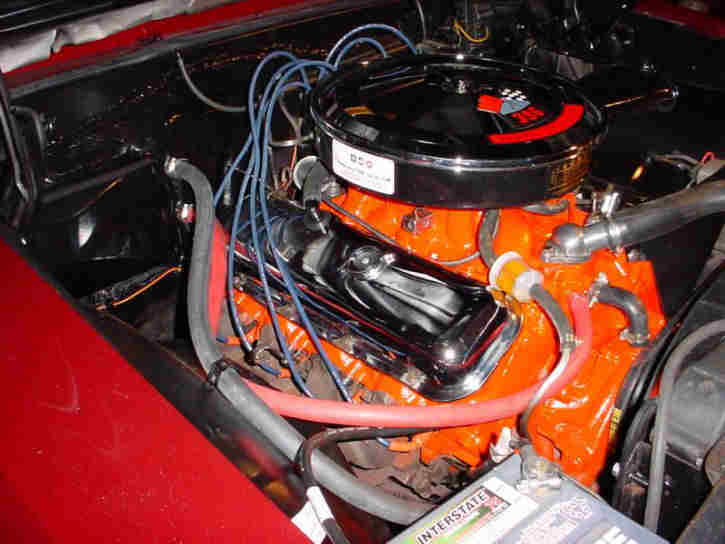

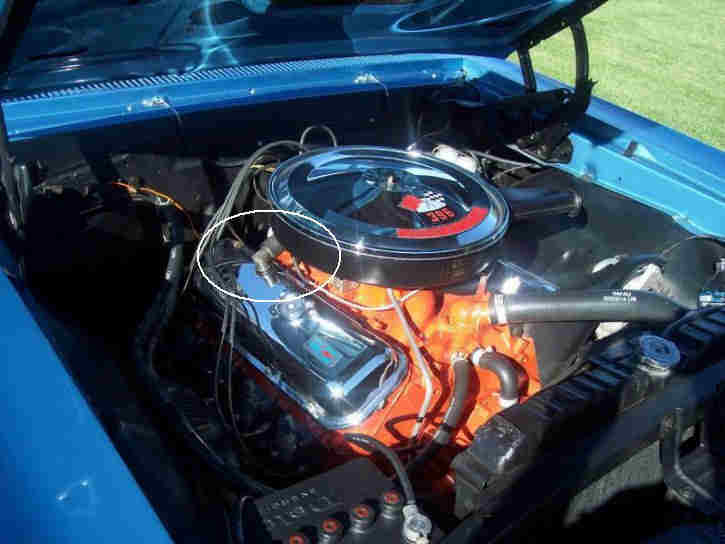

The oil breather cap of the positive ventilation system was replaced with an elbow and hose that ran to the base of the air cleaner assembly when the closed positive engine ventilation system, RPO K24, was ordered.

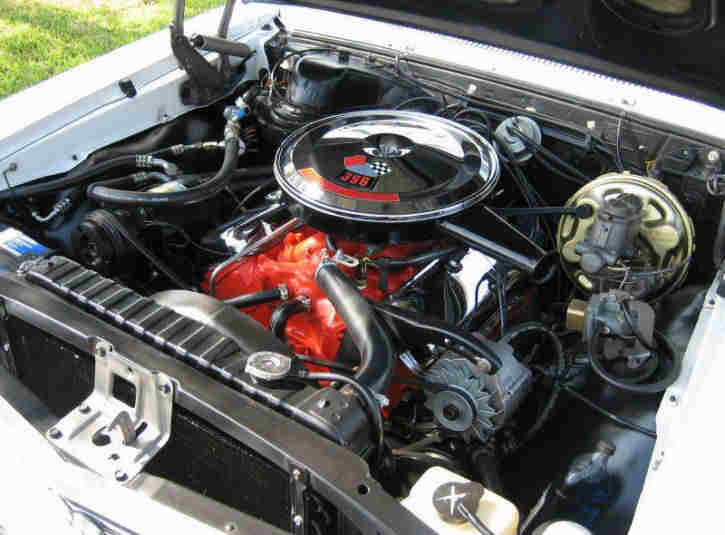

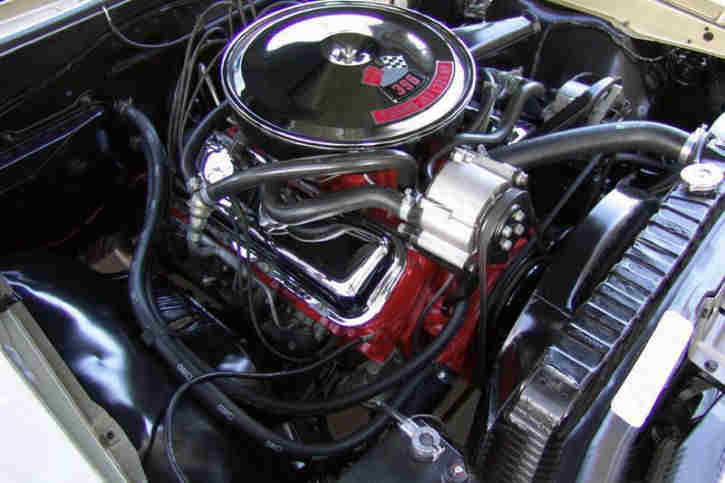

Generator (alternator) is not mounted in accordance with the Assembly Instruction Manual. Top brace should be behind generator and adjustment bolt should be inserted from the back side. See Generator page for correct mounting.

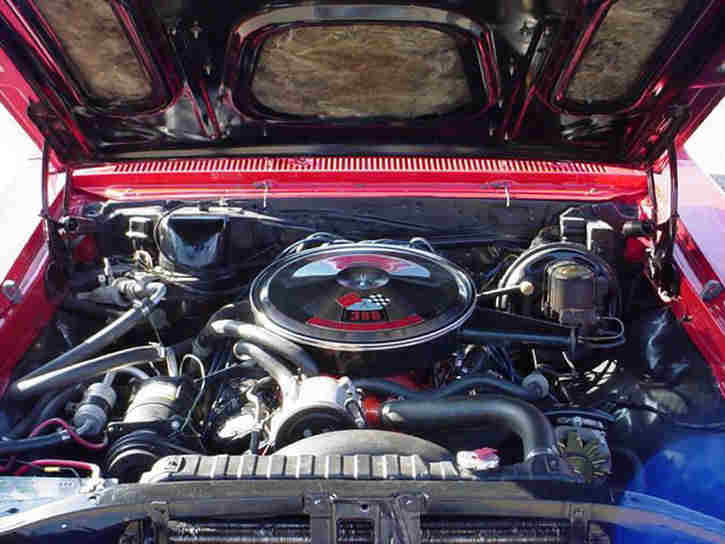

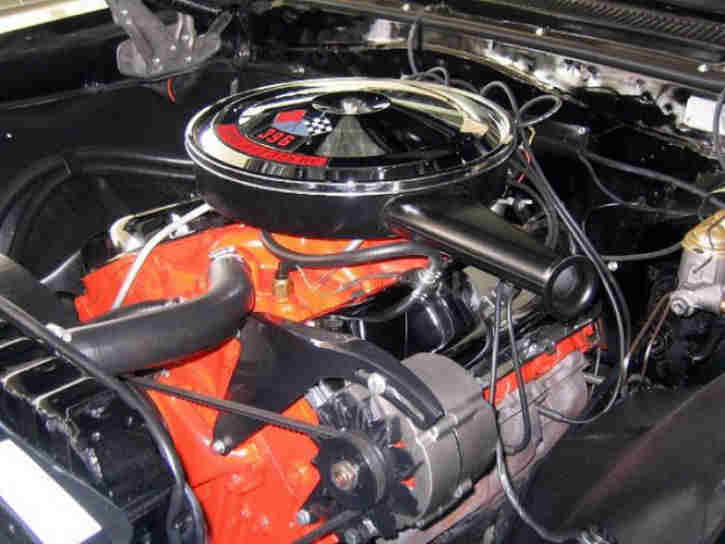

Generator (alternator) is not mounted in accordance with the Assembly Instruction Manual. Top brace should be behind generator and adjustment bolt should be inserted from the back side. See Generator page for correct mounting.

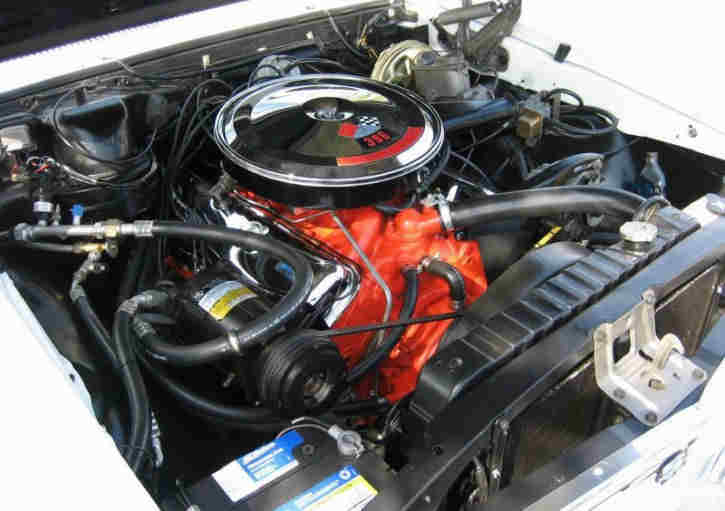

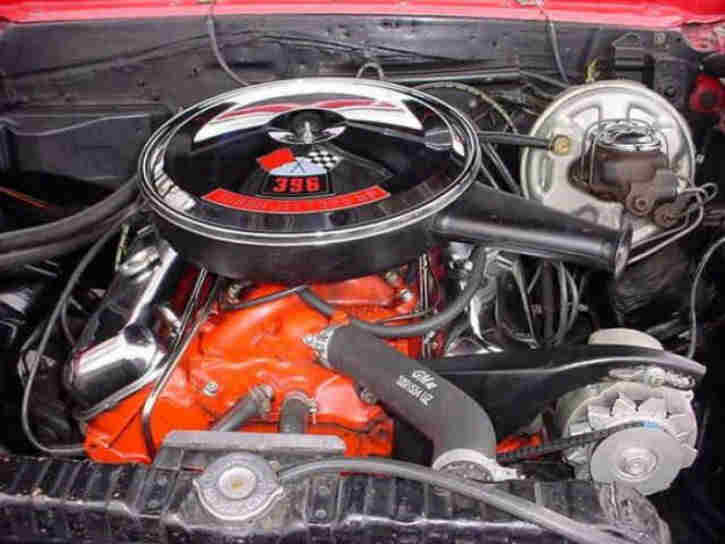

Generator (alternator) is not mounted in accordance with the Assembly Instruction Manual. Top brace should be behind generator and adjustment bolt should be inserted from the back side. See Generator page for correct mounting.

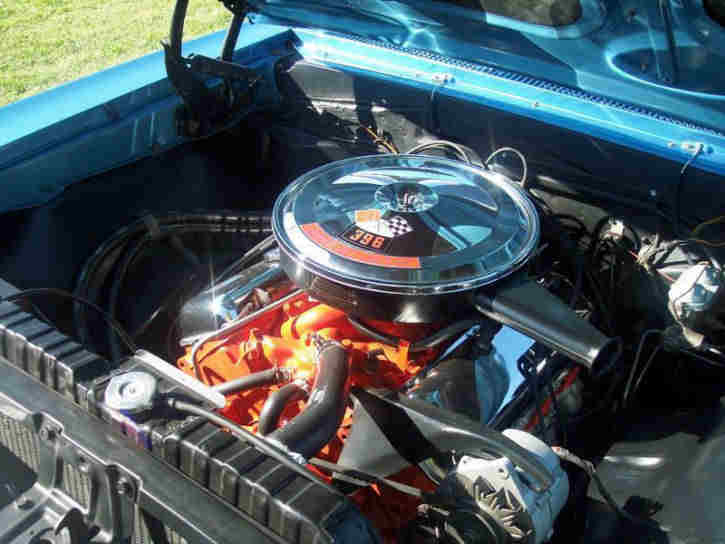

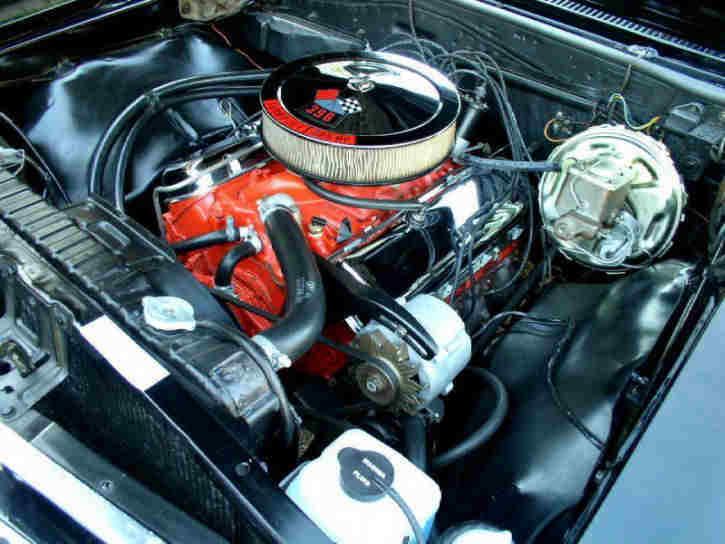

Obvious incorrect air cleaner, only RPO L34 350hp and RPO L78 375hp engines used the open element air cleaner. Generator (alternator) is not mounted in accordance with the Assembly Instruction Manual. Top brace should be behind generator and adjustment bolt should be inserted from the back side. See Generator page for correct mounting.

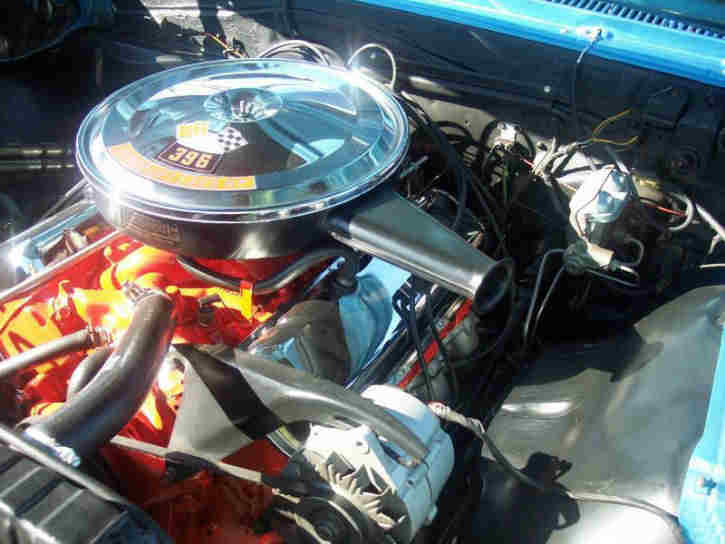

Generator (alternator) is not mounted in accordance with the Assembly Instruction Manual. Top brace should be behind generator and adjustment bolt should be inserted from the back side. See Generator page for correct mounting.

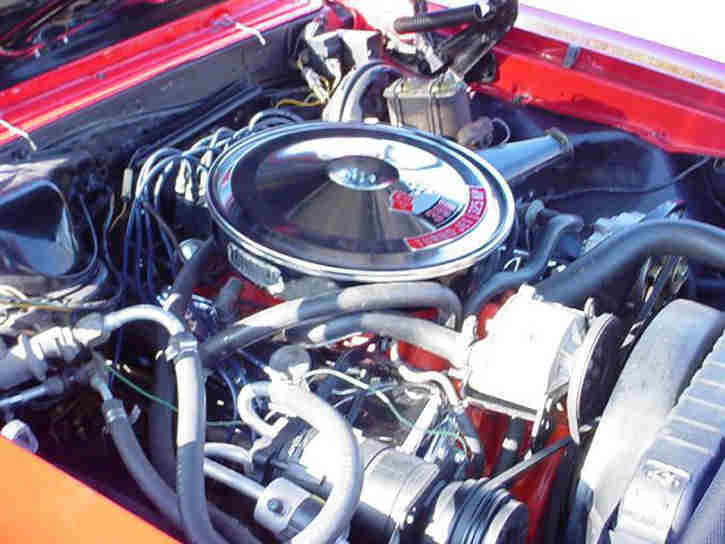

Generator (alternator) is not mounted in accordance with the Assembly Instruction Manual. Top brace should be behind generator and adjustment bolt should be inserted from the back side. See Generator page for correct mounting.

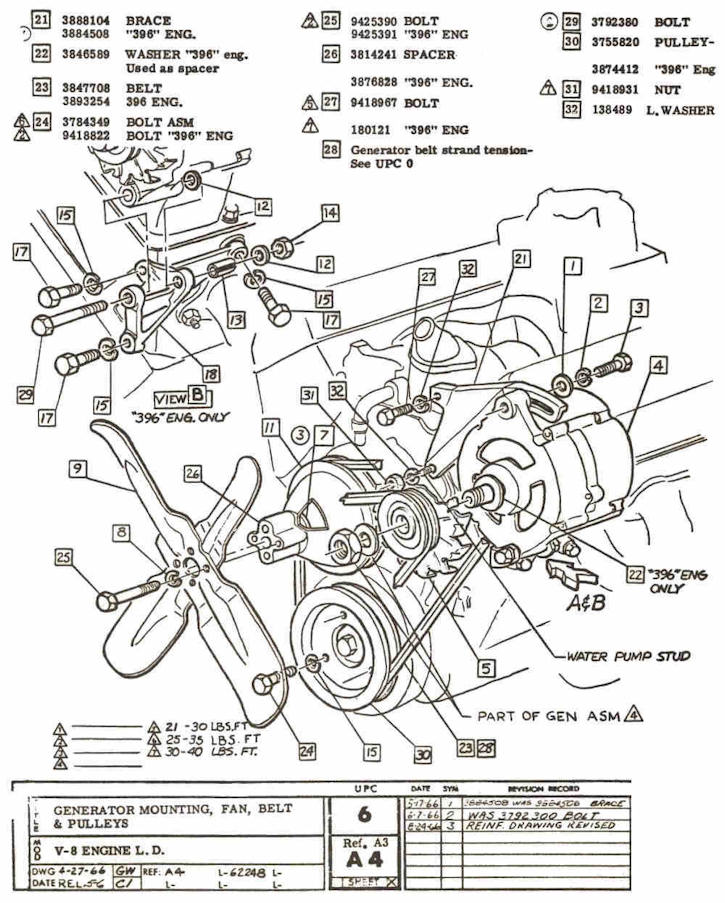

Note generator is mounted BEHIND the brace for adjustment with the bolt coming from the back side. This keeps the brace from interfering with the generator fan.
