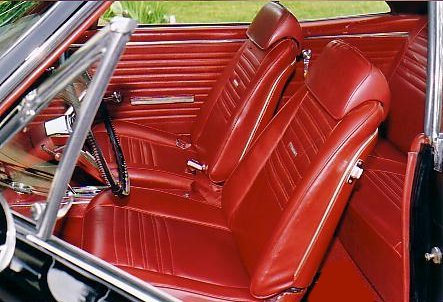

Relatively rare (1,609) RPO A81 head restraints
Courtesy Mel Anderson
Trim numbers listed below are found on the Fisher Body plate located on the firewall. The models the particular trim code was available in is shown in italics. Links are provided to photos of interior colors that have been documented with body plate references. Atlanta, Framingham, and Kansas City would also include a -A or -B after the trim number to reflect bench or bucket seat where Baltimore and Fremont did not. In fact, the -A or -B was not necessary as the trim number itself was only applicable to a bench or bucket seat type. Baltimore and Fremont were both General Motors Assembly Division (GMAD) plants and other GM models were built there along side the Chevelle. Why Atlanta, Framingham, and Kansas City chose to include the -A or -B designator is unclear.
Note: Only those links in UPPER CASE are active. Other seats with links are on the CD. Those without links I do not have examples of.
Bench Seat ~ (model availability) | Bucket Seat ~ (model availability) |
705 ~ Plum Royale Cloth, Antique
Plum Imitation Leather (13639) |
731 ~ MEDIUM BRIGHT BLUE IMITATION LEATHER (13617-67 ~ 13817-67) |
720 ~ Medium Fawn Imitation
Leather (13211-69) |
738 ~ Medium Blue Imitation Leather (13617-67 ~ 13817-67) |
723 ~ Medium Bright Blue Imitation
Leather (13617-35-67 ~ 13817-35-67) |
750 ~ Medium Red Imitation Leather (13617-67-80 ~ 13817-67) |
724 ~ MEDIUM BLUE REDMOND CLOTH, MEDIUM BLUE IMITATION LEATHER (13211-69) |
763 ~ BLACK IMITATION LEATHER (13617-67-80 ~ 13817-67) |
726 ~ Medium Blue Rio Cloth, Medium
Blue Imitation Leather (13411-69) |
778 ~ Medium Turquoise Imitation
Leather (13817-67) |
727 ~ Medium Blue Pattern
Imitation Leather, Medium Blue Imitation Leather (13435-80) |
784 ~ Medium Gold Imitation Leather (13617-67-80 ~ 13817-67) |
728 ~ Medium Blue Roncina Cloth,
Medium Blue Imitation Leather (13617-39-69) |
|
729 ~ Medium Blue Imitation Leather (13635-39-67-80 ~ 13817-35-67) |
|
730 ~ Medium Blue Royale
Cloth, Medium Blue Imitation Leather (13639) |
|
746 ~ Dark Maroon Roncina Cloth,
Dark Maroon Imitation Leather (13617-39-69) |
|
747 ~ MEDIUM RED IMITATION LEATHER (13617-35-67 ~ 13817-35-67) |
|
757 ~ Black Pattern Imitation Leather,
Black Imitation Leather (13211-69) |
|
759 ~ Black Roncina Cloth, Black
Imitation Leather (13617-39-69 - 13817) |
|
761 ~ Black Imitation Leather (13617-35-39-67-80 ~ 13817-35-67) |
|
762 ~ Black Royale
Cloth, Black Imitation Leather (13639) |
|
764 ~ Black Rio Cloth, Black Imitation
Leather (13411-69) |
|
766 ~ Black Pattern
Imitation Leather, Black Imitation Leather (13435-80) |
|
768 ~ Medium Fawn Redmond
Cloth, Medium Fawn Imitation leather (13211-69) |
|
769 ~ Medium Fawn Rio Cloth, Medium
Fawn Imitation Leather (13411-69) |
|
770 ~ Medium Fawn Pattern
Imitation Leather, Medium Fawn Imitation Leather (13435-80) |
|
775 ~ Medium Turquoise Roncina
Cloth, Medium Turquoise Imitation Leather (13617-39-69) |
|
776 ~ Medium Turquoise Imitation
Leather (13635-67 ~ 13817-35-67) |
|
782 ~ Medium Gold Roncina Cloth,
Medium Gold Imitation Leather (13617-39-69) |
|
783 ~ Medium Gold Imitation Leather (13617-635-67-80 ~ 13817-35-67) |
|
794 ~ Medium Gold Royale
Cloth, Medium Gold Imitation Leather (13639) |
|
Source: Trim Combination Chart,
Chevrolet P&A Catalog, 1972 Revision 30A It has been verified through body plates that some models received additional trim color options not listed in the above catalog. |
